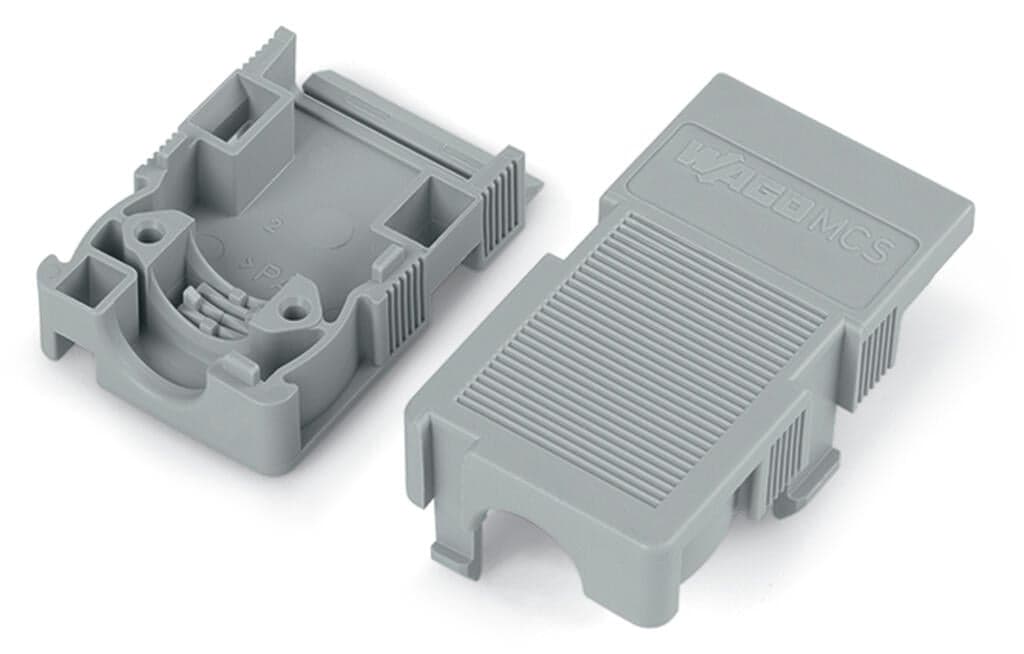

Product Model
232-662
Selling Points
- 1Compact Design: Measures 41.5 mm wide, 17.5 mm high, and 15.5 mm deep for efficient space utilization.
- 2Fire-Resistant Material: Made from polyamide (PA66) with a fire load of 0.117 MJ, ensuring safety in high-temperature environments.
- 3Cable Binder Compatibility: Compatible with cable binders up to 3.6 mm in width, providing secure cable management.
- 4Multiple Certifications: Meets DEKRA Certification B.V., KEMA/KEUR, and American Bureau of Shipping (ABS) standards.
- 5Easy Installation: Features a single cable outlet at the rear for straightforward installation and connection.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Pin spacing | 7.5?mm?/ 0.295?inches | Width | 15.5?mm?/ 0.61?inches |
Height | 17.5?mm?/ 0.689?inches | Depth | 15.5?mm?/ 0.61?inches |
Suitable | for standard male and female connectors | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.363MJ | Weight | 4.2g |
Product Group | 3 (Multi Conn. System) | eCl@ss 10.0 | 27-14-11-92 |
eCl@ss 9.0 | 27-44-04-92 | ETIM 9.0 | EC002848 |
ETIM 8.0 | EC002848 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 25?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4017332290326 |
Customs tariff number | 8538908160 | RoHS Compliance Status | Compliant,No Exemption |
Number of poles | 2 |
Specifications may be subject to change without notice
