Product Model

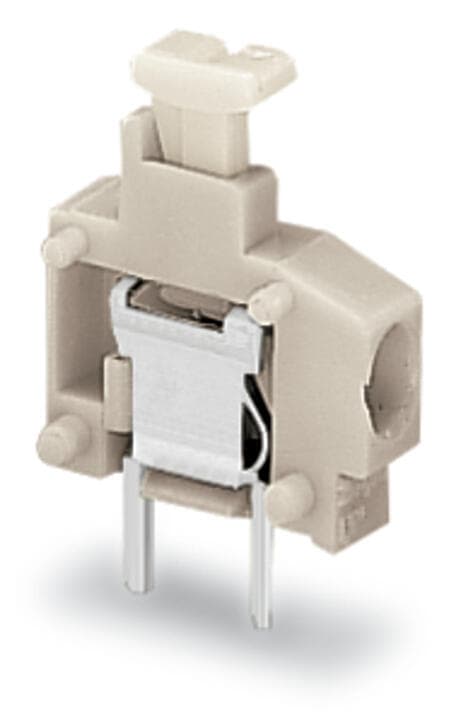

235-201
Selling Points
- 1Efficient Push-in CAGE CLAMP: Securely connect solid and ferruled conductors with the push-in mechanism.
- 2Stackable Design: Easily stack multiple blocks for custom terminal strip assemblies.
- 3Convenient 1-Pole Configuration: Ideal for single-pole applications with a light gray finish.
- 4High Current Capacity: Handles 1.5 mm² of current, suitable for various industrial applications.
- 5Durable and Reliable: Built to withstand demanding environments with a robust push-button design.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Variants: | Other colors | Clamping units | 1 |
Total number of potentials | 1 | Number of connection types | 1 |
Number of levels | 1 | Pin spacing | 3.96/4 mm / 0.156/0.157 inches |
Width | 5.5 mm / 0.217 inches | Height | 19.1 mm / 0.752 inches |
Height from the surface | 15.5 mm / 0.61 inches | Depth | 12.5 mm / 0.492 inches |
Solder pin length | 3.6mm | Solder pin dimensions | 0.4 x 0.8 mm |
Drilled hole diameter with tolerance | 1(+0.1)mm | PCB contact | THT |
Solder pin arrangement | within the terminal block (in-line) | Number of solder pins per potential | 2 |
Note (material data) | Information on material specifications can be found here | Color | light gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Clamping spring material | Chrome-nickel spring steel (CrNi) |
Contact material | Electrolytic copper (ECu) | Contact plating | Tin |
Fire load | 0.01MJ | Weight | 0.6g |
Limit temperature range | -60 … +105 °C | Product Group | 4 (Printed Circuit Connectors) |
eCl@ss 10.0 | 27-44-04-01 | eCl@ss 9.0 | 27-44-04-01 |
ETIM 9.0 | EC002643 | ETIM 8.0 | EC002643 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 800 (100) pcs |
Packaging type | Box | Country of origin | CN |
GTIN | 4044918829489 | Customs tariff number | 8536904000 |
RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60664-1 |
Rated voltage (III / 3) | 200V | Rated impulse voltage (III / 3) | 4kV |
Rated voltage (III/2) | 320V | Rated surge voltage (III/2) | 4kV |
Nominal voltage (II/2) | 500V | Rated surge voltage (II/2) | 4kV |
Rated current | 17.5A | Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 |
Approvals per | CSA | Rated voltage UL (Use Group B) | 300V |
Rated current UL (Use Group B) | 10A | Rated voltage UL (Use Group D) | 300V |
Rated current UL (Use Group D) | 10A | Rated voltage CSA (Use Group B) | 300V |
Rated current CSA (Use Group B) | 10A | Connection technology | Push-in CAGE CLAMP? |
Actuation type | Push-button | Solid conductor | 0.5 … 1.5 mm2 / 20 … 16 AWG |
Fine-stranded conductor | 0.75 … 1.5 mm2 / 20 … 16 AWG | Fine-stranded conductor; with insulated ferrule | 0.25 … 1 mm2 |
Fine-stranded conductor; with uninsulated ferrule | 0.25 … 1 mm2 | Strip length | 9 … 10 mm / 0.35 … 0.39 inches |
Conductor connection direction to PCB | 0° | Number of poles | 1 |
