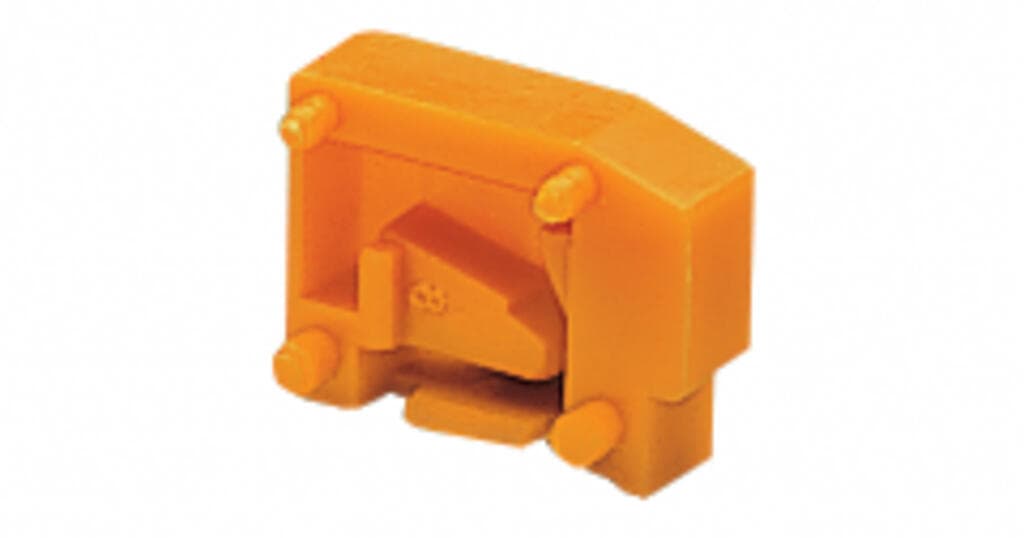

Product Model
235-316
Selling Points
- 1Doubles pin spacing for enhanced connectivity.
- 2Snap-on type for easy installation.
- 3Orange color for clear visibility.
- 4Made in Switzerland for high-quality standards.
- 5Available in multiples of 100 items for bulk purchasing.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Pin spacing | 3.81?mm?/ 0.15?inches | Width | 3.81?mm?/ 0.15?inches |
Height | 9.2?mm?/ 0.362?inches | Depth | 12.5?mm?/ 0.492?inches |
Use | extends pin spacing | Mounting type | snap-on type |
Note (material data) | Information on material specifications can be found here | Color | orange |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.01MJ |
Weight | 0.3g | Product Group | 4 (Printed Circuit Connectors) |
eCl@ss 10.0 | 27-44-04-92 | eCl@ss 9.0 | 27-44-04-92 |
ETIM 9.0 | EC002848 | ETIM 8.0 | EC002848 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1000?(100)?pcs |
Packaging type | box | Country of origin | CH |
GTIN | 4017332443586 | Customs tariff number | 3926909985 |
RoHS Compliance Status | Compliant,No Exemption | Number of poles | 1 |
Specifications may be subject to change without notice
