Product Model

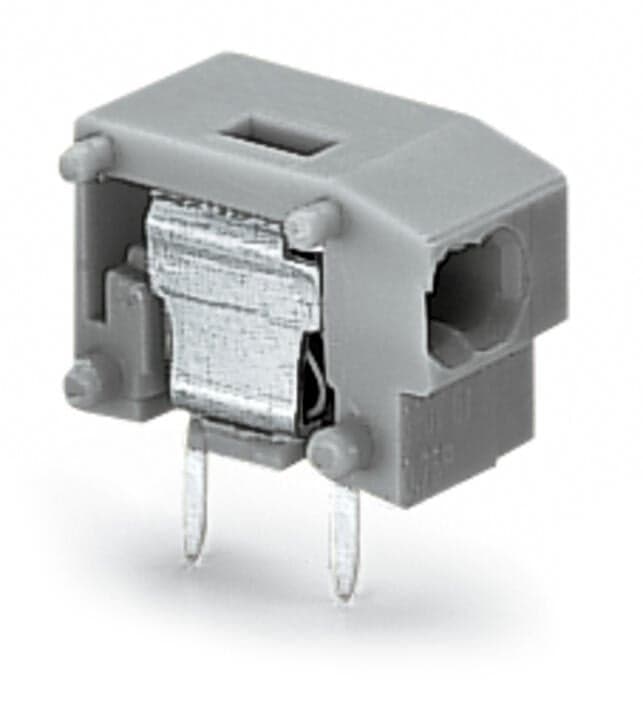

235-551
Selling Points
- 1Automatic Clamping: The WAGO 235-551 terminal block uses the patented CAGE CLAMP mechanism, which automatically connects solid or stranded wires without special wire preparation.
- 2High Specific Pressure: The stainless-steel clamping mechanism exerts a high specific pressure that embeds the conductors into the soft tin of the current bar, creating a "gas-tight" connection.
- 3Corrosion Resistance: The terminal block is inherently corrosion-resistant due to its stainless-steel construction and the embedded conductors, ensuring long-lasting connections.
- 4Easy Installation: No special wire preparation like crimps, ferrules, or tinning is necessary, making installation quick and efficient.
- 5Proportional Clamping: The clamping force adjusts automatically to the conductor cross-section, ensuring a secure connection regardless of wire size.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Variants: | Other colors | Clamping units | 2 |
Total number of potentials | 1 | Number of connection types | 1 |
Number of levels | 1 | Pin spacing | 7.5/7.62?mm?/ 0.295/0.3?inches |
Width | 9?mm?/ 0.354?inches | Height | 12.8?mm?/ 0.504?inches |
Height from the surface | 9.2?mm?/ 0.362?inches | Depth | 12.5?mm?/ 0.492?inches |
Solder pin length | 3.6mm | Solder pin dimensions | 0.8 x 0.4?mm |
Drilled hole diameter with tolerance | 1(+0.1)mm | PCB contact | THT |
Solder pin arrangement | within the terminal block (in-line) | Number of solder pins per potential | 2 |
Note (material data) | Information on material specifications can be found here | Color | gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Clamping spring material | Chrome-nickel spring steel (CrNi) |
Contact material | Electrolytic copper (ECu) | Contact plating | Tin |
Fire load | 0.015MJ | Weight | 0.8g |
Limit temperature range | -60 … +105?°C | Product Group | 4 (Printed Circuit Connectors) |
eCl@ss 10.0 | 27-44-04-01 | eCl@ss 9.0 | 27-44-04-01 |
ETIM 9.0 | EC002643 | ETIM 8.0 | EC002643 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 600?(100)?pcs |
Packaging type | box | Country of origin | CN |
GTIN | 4044918831246 | Customs tariff number | 8536904000 |
RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60664-1 |
Rated voltage (III / 3) | 400V | Rated impulse voltage (III / 3) | 6kV |
Rated voltage (III/2) | 630V | Rated surge voltage (III/2) | 6kV |
Nominal voltage (II/2) | 1000V | Rated surge voltage (II/2) | 6kV |
Rated current | 10A | Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 |
Approvals per | CSA | Rated voltage UL (Use Group B) | 300V |
Rated current UL (Use Group B) | 10A | Rated voltage UL (Use Group D) | 300V |
Rated current UL (Use Group D) | 10A | Rated voltage CSA (Use Group B) | 300V |
Rated current CSA (Use Group B) | 10A | Connection technology | PUSH WIRE? |
Actuation type | Operating tool | Solid conductor | 0.25 … 0.75?mm2?/ 24 … 18?AWG |
Fine-stranded conductor; with uninsulated ferrule | 0.25 … 0.34?mm2 | Strip length | 9 … 10?mm?/ 0.35 … 0.39?inches |
Conductor connection direction to PCB | 0° | Number of poles | 1 |
Specifications may be subject to change without notice
