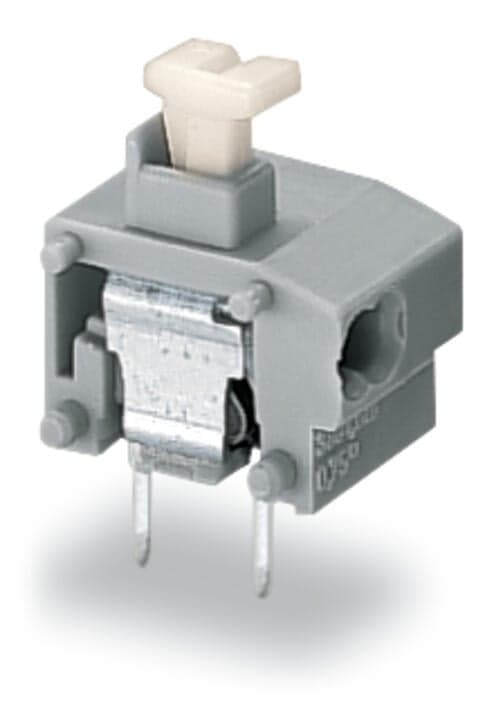

Product Model
235-851/332-000
Selling Points
- 1Easy Conductor Removal: Push-button termination for quick and easy conductor removal.
- 2Double-Conductor Connection: Designed for commoning signals, ensuring reliable signal integrity.
- 3Stackable Design: Modular and stackable, allowing for flexible terminal strip assemblies.
- 4High Voltage Rating: Rated voltage up to 630V and impulse voltage up to 8kV for overvoltage protection.
- 5Compliant with Industry Standards: Meets IEC/EN 60664-1 and UL 1059 standards for safety and reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Variants: | Other colors | Clamping units | 2 |
Total number of potentials | 1 | Number of connection types | 1 |
Number of levels | 1 | Pin spacing | 10/10.16?mm?/ 0.394/0.4?inches |
Width | 11.5?mm?/ 0.453?inches | Height | 19.1?mm?/ 0.752?inches |
Height from the surface | 15.5?mm?/ 0.61?inches | Depth | 12.5?mm?/ 0.492?inches |
Solder pin length | 3.6mm | Solder pin dimensions | 0.8 x 0.4?mm |
Drilled hole diameter with tolerance | 1(+0.1)mm | PCB contact | THT |
Solder pin arrangement | within the terminal block (in-line) | Number of solder pins per potential | 2 |
Note (material data) | Information on material specifications can be found here | Color | gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Clamping spring material | Chrome-nickel spring steel (CrNi) |
Contact material | Electrolytic copper (ECu) | Contact plating | Tin |
Fire load | 0.023MJ | Weight | 1g |
Limit temperature range | -60 … +105?°C | Product Group | 4 (Printed Circuit Connectors) |
eCl@ss 10.0 | 27-44-04-01 | eCl@ss 9.0 | 27-44-04-01 |
ETIM 9.0 | EC002643 | ETIM 8.0 | EC002643 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 400?(100)?pcs |
Packaging type | box | Country of origin | CN |
GTIN | 4044918833769 | RoHS Compliance Status | Compliant,No Exemption |
Ratings per | IEC/EN 60664-1 | Rated voltage (III / 3) | 630V |
Rated impulse voltage (III / 3) | 8kV | Rated voltage (III/2) | 500V |
Rated surge voltage (III/2) | 6kV | Nominal voltage (II/2) | 1000V |
Rated surge voltage (II/2) | 6kV | Rated current | 10A |
Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 | Approvals per | CSA |
Rated voltage UL (Use Group B) | 300V | Rated current UL (Use Group B) | 10A |
Rated voltage UL (Use Group D) | 300V | Rated current UL (Use Group D) | 10A |
Rated voltage CSA (Use Group B) | 300V | Rated current CSA (Use Group B) | 10A |
Connection technology | PUSH WIRE? | Actuation type | Push-button |
Solid conductor | 0.2 … 0.75?mm2?/ 24 … 18?AWG | Strip length | 9 … 10?mm?/ 0.35 … 0.39?inches |
Conductor connection direction to PCB | 0° | Number of poles | 1 |
