Product Model

236-406/334-604/997-406

In Stock
Last updated: 2025/4/18
wago 236-406/334-604/997-406

Selling Points

  • 1High-Quality PCB Connector: Designed for reliable connections in PCB applications.
  • 26-Pole Configuration: Ideal for complex wiring setups with six individual poles.
  • 32.5 mm² Cross-Section: Supports high current capacity with a robust 2.5 mm² cross-section.
  • 4CAGE CLAMP Technology: Easy and secure connection system with CAGE CLAMP technology.

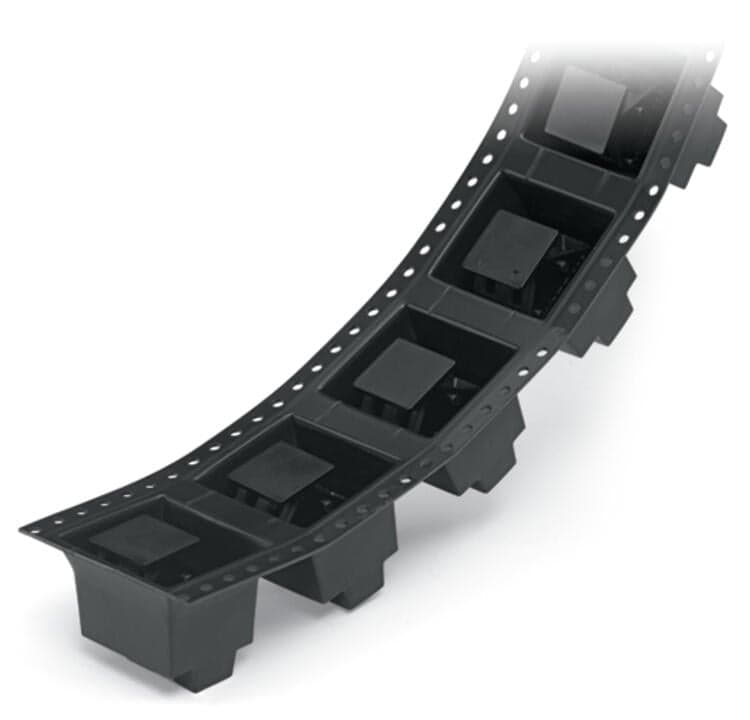

  • 5Tape-and-Reel Packaging: Convenient for automated assembly processes.
Product Details
236-406/334-604/997-406
wago

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Note
Application notes:Suitable for lead-free, reflow-soldering profiles per DIN EN 61760-1 and IEC 60068-2-58 up to max. 260°C peak temperature. Due to application-specific variables (component configuration and orientation, type of soldering machine, solder paste), trial runs are recommended to ensure product and process compatibility under actual manufacturing conditions.
Variants:
Other pole numbers
Clamping units
6
Total number of potentials
6
Number of connection types
1
Number of levels
1
Pin spacing
5?mm?/ 0.197?inches
Width
32.3?mm?/ 1.272?inches
Height
16.6?mm?/ 0.654?inches
Height from the surface
13?mm?/ 0.512?inches
Depth
14?mm?/ 0.551?inches
Solder pin length
3.6mm
Solder pin dimensions
0.7 x 0.7?mm
Plated through-hole diameter (THR)
1.1(+0.1)mm
Reel diameter of tape-and-reel packaging
330mm
Tape width
44mm
PCB contact
THR
Solder pin arrangement
over the entire terminal strip (in-line)
Number of solder pins per potential
2
Note (material data)
Information on material specifications can be found here
Color
black
Material group
IIIa
Insulation material (main housing)
Polyamide (PA46)
Flammability class per UL94
V2
Clamping spring material
Chrome-nickel spring steel (CrNi)
Contact material
Electrolytic copper (ECu)
Contact plating
Tin
Weight
5.5g
MSL per J-STD 020D
1
Limit temperature range
-60 … +115?°C
eCl@ss 10.0
27-44-04-01
eCl@ss 9.0
27-44-04-01
ETIM 9.0
EC002643
ETIM 8.0
EC002643
ECCN
NO US CLASSIFICATION
PU (SPU)
140?pcs
Packaging type
box
Country of origin
DE
GTIN
4055143469685
Customs tariff number
8536904000
RoHS Compliance Status
Compliant,No Exemption
Ratings per
IEC/EN 60664-1
Rated voltage (III / 3)
200V
Rated impulse voltage (III / 3)
4kV
Rated voltage (III/2)
320V
Rated surge voltage (III/2)
4kV
Nominal voltage (II/2)
320V
Rated surge voltage (II/2)
4kV
Rated current
24A
Legend (ratings)
(III / 2) ? Overvoltage category III / Pollution degree 2
Approvals per
CSA
Rated voltage UL (Use Group B)
300V
Rated current UL (Use Group B)
15A
Rated voltage UL (Use Group D)
300V
Rated current UL (Use Group D)
10A
Rated voltage CSA (Use Group B)
300V
Rated current CSA (Use Group B)
15A
Rated voltage CSA (Use Group D)
300V
Rated current CSA (Use Group D)
10A
Connection technology
CAGE CLAMP?
Actuation type
Operating tool
Solid conductor
0.08 … 2.5?mm2?/ 28 … 12?AWG
Fine-stranded conductor
0.08 … 2.5?mm2?/ 28 … 12?AWG
Fine-stranded conductor; with insulated ferrule
0.25 … 1.5?mm2
Fine-stranded conductor; with uninsulated ferrule
0.25 … 1.5?mm2
Note (conductor cross-section)
12 AWG: THHN, THWN
Strip length
5 … 6?mm?/ 0.2 … 0.24?inches
Conductor connection direction to PCB
45°
Number of poles
6

Specifications may be subject to change without notice
