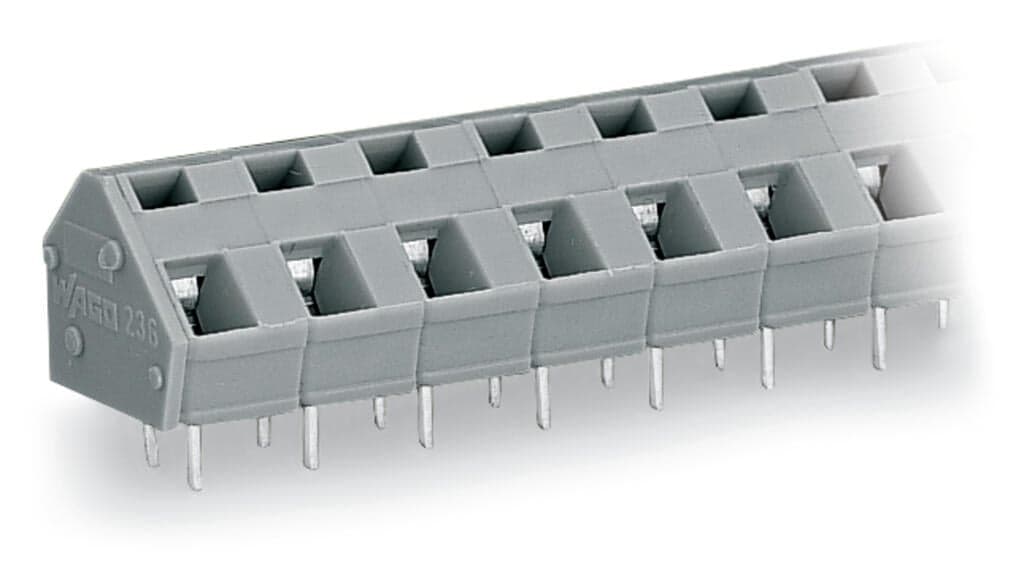

Product Model
236-502/000-009/999-950
Selling Points
- 1Suitable for Ex-e Applications: Designed for hazardous environments.
- 2CAGE CLAMP Technology: Easy and secure conductor connection.
- 3Commoning Option: Simplifies wiring and reduces complexity.
- 42.5 mm² Conductor Capacity: Handles high current requirements.
- 5Light Gray Color: Easy to identify and integrate into systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Variants: | Other pole numbers | Clamping units | 2 |
Total number of potentials | 2 | Number of connection types | 1 |
Number of levels | 1 | Pin spacing | 7.5/7.62?mm?/ 0.295/0.3?inches |
Width | 17.3?mm?/ 0.681?inches | Height | 17?mm?/ 0.669?inches |
Height from the surface | 13?mm?/ 0.512?inches | Depth | 14?mm?/ 0.551?inches |
Solder pin length | 4mm | Solder pin dimensions | 0.7 x 0.7?mm |
Drilled hole diameter with tolerance | 1.1(+0.1)mm | PCB contact | THT |
Solder pin arrangement | over the entire terminal strip (in-line) | Number of solder pins per potential | 2 |
Note (material data) | Information on material specifications can be found here | Color | light gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Clamping spring material | Chrome-nickel spring steel (CrNi) |
Contact material | Electrolytic copper (ECu) | Contact plating | Tin |
Fire load | 0.04MJ | Weight | 2.3g |
Limit temperature range | -60 … +105?°C | Product Group | 4 (Printed Circuit Connectors) |
eCl@ss 10.0 | 27-44-04-01 | eCl@ss 9.0 | 27-44-04-01 |
ETIM 9.0 | EC002643 | ETIM 8.0 | EC002643 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 280?(70)?pcs |
Packaging type | box | Country of origin | CH |
GTIN | 4044918772150 | Customs tariff number | 8536904000 |
RoHS Compliance Status | Compliant,No Exemption | Ratings per | ATEX: PTB 06 ATEX 1061 U / IECEx: PTB 06.0042 U |
Rated voltage EN (Ex e II) | 275V | Rated current (Ex e II) | 16A |
Connection technology | CAGE CLAMP? | Actuation type | Operating tool |
Solid conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG | Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG |
Fine-stranded conductor; with insulated ferrule | 0.25 … 1.5?mm2 | Fine-stranded conductor; with uninsulated ferrule | 0.25 … 1.5?mm2 |
Note (conductor cross-section) | 12 AWG: THHN, THWN | Strip length | 5 … 6?mm?/ 0.2 … 0.24?inches |
Conductor connection direction to PCB | 45° | Number of poles | 2 |
Specifications may be subject to change without notice
