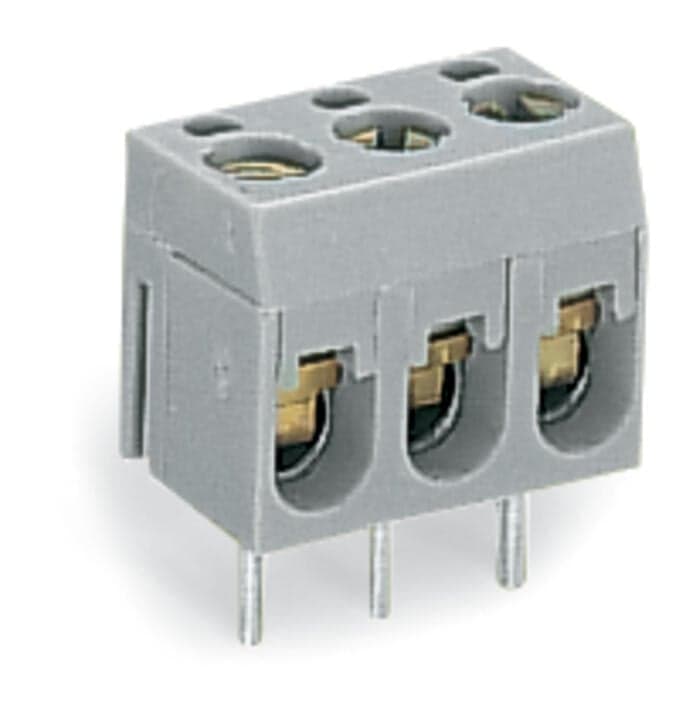

Product Model
237-103
Selling Points
- 1High current capacity of 2.5 mm²
- 2Compact design with 5 mm pin spacing
- 3Gray color for easy identification
- 4Three-pole configuration for multiple connections
- 5Durable and reliable spring pressure termination technology
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 3 | Total number of potentials | 3 |
Number of connection types | 1 | Number of levels | 1 |
Pin spacing | 5?mm?/ 0.197?inches | Width | 15?mm?/ 0.591?inches |
Height from the surface | 11?mm?/ 0.433?inches | Depth | 9?mm?/ 0.354?inches |
Solder pin length | 4.5mm | Solder pin diameter | 1mm |
PCB contact | THT | Solder pin arrangement | over the entire terminal strip (in-line) |
Number of solder pins per potential | 1 | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Clamping spring material | Chrome-nickel spring steel (CrNi) | Contact material | Electrolytic copper (ECu) |
Contact plating | Tin | Fire load | 0.024MJ |
Weight | 2.9g | Limit temperature range | -60 … +105?°C |
Product Group | 4 (Printed Circuit Connectors) | eCl@ss 10.0 | 27-44-04-01 |
eCl@ss 9.0 | 27-44-04-01 | ETIM 9.0 | EC002643 |
ETIM 8.0 | EC002643 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 400?(100)?pcs | Packaging type | box |
Country of origin | IN | GTIN | 4045454539788 |
Customs tariff number | 8536904000 | CAS-No. | 7439-92-1 |
REACH Candidate List Substance | Lead | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 6(c) | SCIP notification number (Austria) | 5b6a605f-5440-4169-bef2-142b8d04dc6e |
SCIP notification number (Belgium) | b04cf0f6-1700-4921-95b7-165e73045cf6 | SCIP notification number (Bulgaria) | 52044553-6ef1-4e57-af61-63b6cf165e98 |
SCIP notification number (Czech Republic) | 4c4254cd-5b22-4eb0-9911-4d6efaa1fec1 | SCIP notification number (Denmark) | c99046f8-caa9-448c-818b-c9826476f5d5 |
SCIP notification number (Finland) | 4cd8c859-e2f7-42ce-9faa-81e6a8e8e827 | SCIP notification number (France) | 4980ed86-fb41-44b2-9bcf-ba48f3b87e73 |
SCIP notification number (Germany) | 7f53d3f9-c2df-42b1-bbb3-59c5bda00fd5 | SCIP notification number (Hungary) | 3c53129a-fc7f-4041-9cbc-945032e09d13 |
SCIP notification number (Italy) | 1d899881-11a0-415c-88cb-676716423bfb | SCIP notification number (Netherlands) | 8c147065-385a-4f6e-a003-0c4acf1657d7 |
SCIP notification number (Poland) | 502c4af7-8654-4b70-858f-d8997032b476 | SCIP notification number (Romania) | 0b67f990-2712-4a32-93e9-40246fb802bc |
SCIP notification number (Sweden) | 599c7b18-188e-483c-bae2-f83de9cb3dd2 | Ratings per | IEC/EN 60664-1 |
Rated voltage (III/2) | 250V | Rated surge voltage (III/2) | 2.5kV |
Rated current | 16A | Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 |
Connection technology | Screw connection | Actuation type | Operating tool |
Solid conductor | 0.5 … 2.5?mm2?/ 20 … 14?AWG | Fine-stranded conductor | 0.5 … 2.5?mm2?/ 20 … 14?AWG |
Strip length | 5 … 7?mm?/ 0.2 … 0.28?inches | Conductor connection direction to PCB | 0° |
Number of poles | 3 |
Specifications may be subject to change without notice
