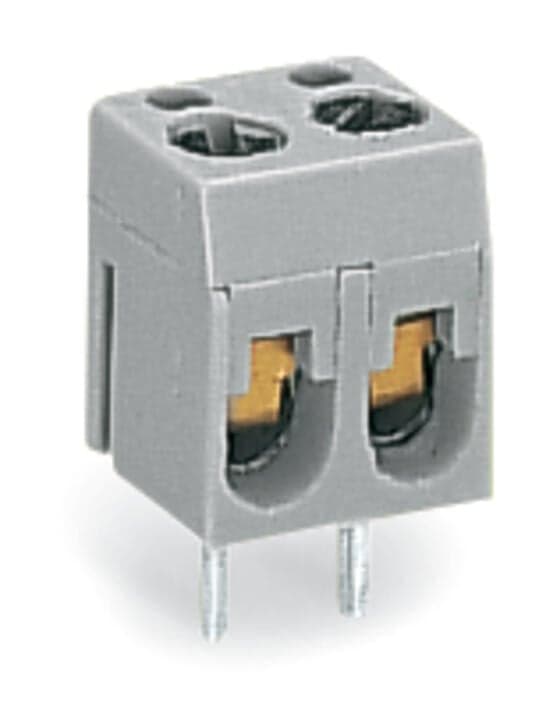

Product Model
237-132
Selling Points
- 1High-Quality Construction: Built with durable materials like polyamide 66 and chrome nickel spring steel for long-lasting performance.
- 2Efficient Connectivity: Designed for easy installation with screw clamp connections, reducing installation time and improving overall system performance.
- 3Secure Connections: Rated for 16 A and 250 V, ensuring reliable and secure connections in industrial applications.
- 4Versatile Use: Suitable for control cabinets, junction boxes, and other electrical installations to facilitate easy and safe wiring.
- 5Compliance and Certifications: Meets UL, CSA, CSM, and KEMA standards, ensuring compliance with various regulatory requirements.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 2 | Total number of potentials | 2 |
Number of connection types | 1 | Number of levels | 1 |
Width | 10.16?mm?/ 0.2?inches | Height from the surface | 11?mm?/ 0.433?inches |
Depth | 9?mm?/ 0.354?inches | Solder pin length | 4.5mm |
Solder pin diameter | 1mm | PCB contact | THT |
Solder pin arrangement | over the entire terminal strip (in-line) | Number of solder pins per potential | 1 |
Note (material data) | Information on material specifications can be found here | Color | gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Clamping spring material | Chrome-nickel spring steel (CrNi) |
Contact material | Electrolytic copper (ECu) | Contact plating | Tin |
Fire load | 0.019MJ | Weight | 2g |
Limit temperature range | -60 … +105?°C | eCl@ss 10.0 | 27-44-04-01 |
eCl@ss 9.0 | 27-44-04-01 | ETIM 9.0 | EC002643 |
ETIM 8.0 | EC002643 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 600?(100)?pcs | Packaging type | box |
Country of origin | IN | GTIN | 4045454539900 |
Customs tariff number | 8536904000 | CAS-No. | 7439-92-1 |
REACH Candidate List Substance | Lead | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 6(c) | SCIP notification number (Austria) | e2904c4e-e7d7-4aaa-8fc6-c25c599357fb |
SCIP notification number (Belgium) | 51fe15b4-4496-46ee-ba1c-b5bfd962234c | SCIP notification number (Bulgaria) | c69fbb30-70c0-4311-85d8-b24260fb662e |
SCIP notification number (Czech Republic) | fcac6530-59af-4798-a7cc-dfffb3e16126 | SCIP notification number (Denmark) | 4b10321d-5e3f-4e77-8365-4cff65bd5321 |
SCIP notification number (Finland) | 506b0e22-beff-4b13-b682-65bbf5d6f96b | SCIP notification number (France) | 7f1d6672-190c-4f76-9fb4-d5f4262d5ae0 |
SCIP notification number (Germany) | 779afb76-d2eb-4925-bcab-d9babe7dc6ad | SCIP notification number (Hungary) | 7f322ff9-29b9-4a8a-b14f-13bfacad9f7c |
SCIP notification number (Italy) | dd91de1a-6fb9-4cca-add9-cacf7690cf2e | SCIP notification number (Netherlands) | deb49973-d366-41e2-a2fe-cf255f97bb46 |
SCIP notification number (Poland) | 26ce6aff-0d03-4089-884a-f8f22fc226e2 | SCIP notification number (Romania) | 8575bd49-5b95-4e43-9036-0814ad63820c |
SCIP notification number (Sweden) | cec1dacf-808d-4c53-aafc-cd58a1d557a4 | Ratings per | IEC/EN 60664-1 |
Rated voltage (III/2) | 250V | Rated surge voltage (III/2) | 2.5kV |
Rated current | 16A | Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 |
Connection technology | Screw connection | Actuation type | Operating tool |
Solid conductor | 0.5 … 2.5?mm2?/ 20 … 14?AWG | Fine-stranded conductor | 0.5 … 2.5?mm2?/ 20 … 14?AWG |
Strip length | 5 … 7?mm?/ 0.2 … 0.28?inches | Conductor connection direction to PCB | 0° |
Number of poles | 2 |
Specifications may be subject to change without notice
