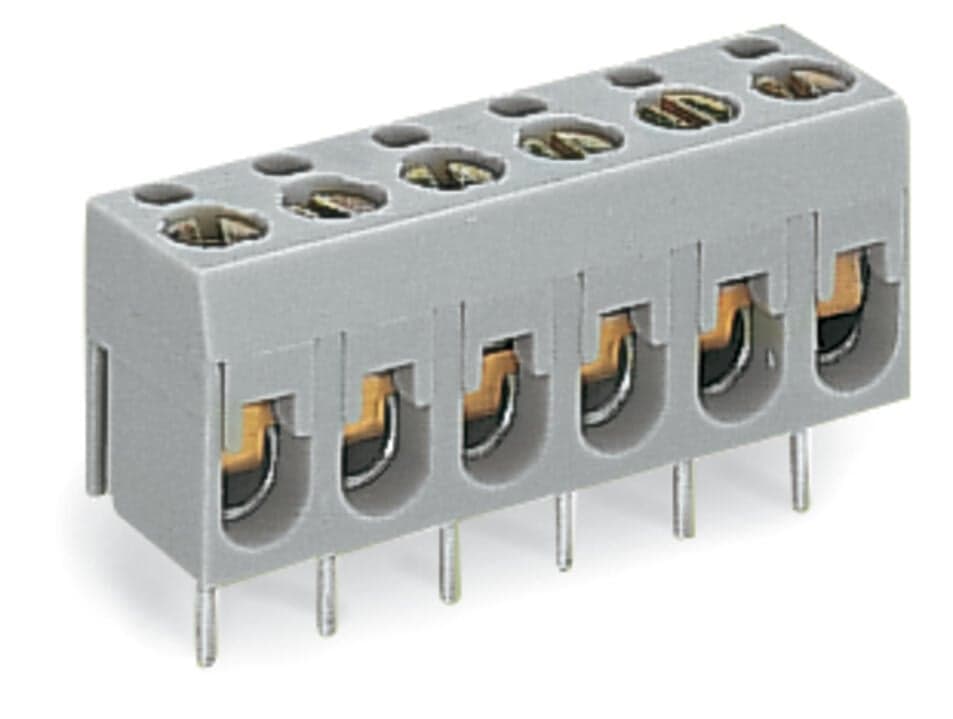

Product Model
237-146
Selling Points
- 1High-Performance Connectivity: Ensures secure and maintenance-free connections in industrial automation and process control.
- 2Durable Design: Constructed with electrocution copper contacts and chrome-nickel spring steel clamps for long-lasting reliability.
- 3Easy Installation: Features a screw clamp connection and operating tool for effortless setup.
- 4Versatile Compatibility: Compatible with other WAGO products, making it a versatile choice for professionals in the field.
- 5Compliant with Standards: Meets IEC/EN 60664-1 ratings and UL 1059 standards for overvoltage category III and pollution degree 2.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 3 | Total number of potentials | 3 |
Number of connection types | 1 | Number of levels | 1 |
Pin spacing | 5/10 mm / 0.197/0.197 inches | Width | 15?mm?/ 0.591?inches |
Height from the surface | 11?mm?/ 0.433?inches | Depth | 9?mm?/ 0.354?inches |
Solder pin length | 4.5mm | Solder pin diameter | 1mm |
PCB contact | THT | Solder pin arrangement | over the entire terminal strip (in-line) |
Number of solder pins per potential | 1 | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Clamping spring material | Chrome-nickel spring steel (CrNi) | Contact material | Electrolytic copper (ECu) |
Contact plating | Tin | Fire load | 0.096MJ |
Weight | 3.6g | Limit temperature range | -60 … +105?°C |
eCl@ss 10.0 | 27-44-04-01 | eCl@ss 9.0 | 27-44-04-01 |
ETIM 9.0 | EC002643 | ETIM 8.0 | EC002643 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 300?(100)?pcs |
Packaging type | box | Country of origin | IN |
GTIN | 4045454539979 | Customs tariff number | 8536904000 |
CAS-No. | 7439-92-1 | REACH Candidate List Substance | Lead |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 6(c) |
SCIP notification number (Austria) | a0dbd928-df72-461b-a7c2-b6abc866ab98 | SCIP notification number (Belgium) | 047ed212-bd7b-40ee-ac18-adb1c34ab632 |
SCIP notification number (Bulgaria) | 8bb63008-c706-4654-82e2-70f3c25772a5 | SCIP notification number (Czech Republic) | dfa4d72b-29c4-44f6-8cd3-95f92b23e0da |
SCIP notification number (Denmark) | 6ce68b1a-d244-41a0-8be7-df5264ddc72f | SCIP notification number (Finland) | 2975d0e3-e66a-4452-840c-5efe5e70fee6 |
SCIP notification number (France) | 2aac3f0b-cb61-42d3-834d-86fbb08438a6 | SCIP notification number (Germany) | 12aecaab-4485-431b-9111-6fbeaaeeabc8 |
SCIP notification number (Hungary) | cc922d94-79b9-4e43-86f9-18e6863f9c0e | SCIP notification number (Italy) | 6514c34a-c2ee-4e80-ac04-a27b05374146 |
SCIP notification number (Netherlands) | 98408107-0a18-436d-b417-6502f99eb781 | SCIP notification number (Poland) | eb3f2cf3-916e-4c4b-8f22-7a9e1878ecb1 |
SCIP notification number (Romania) | 9158eb37-b316-453e-8367-16344cde8706 | SCIP notification number (Sweden) | 02d7769b-a266-43e0-b7fc-418c1176d804 |
Ratings per | IEC/EN 60664-1 | Rated voltage (III/2) | 800V |
Rated surge voltage (III/2) | 2.5kV | Rated current | 16A |
Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 | Connection technology | Screw connection |
Actuation type | Operating tool | Solid conductor | 0.5 … 2.5?mm2?/ 20 … 14?AWG |
Fine-stranded conductor | 0.5 … 2.5?mm2?/ 20 … 14?AWG | Strip length | 5 … 7?mm?/ 0.2 … 0.28?inches |
Conductor connection direction to PCB | 0° | Number of poles | 3 |
Specifications may be subject to change without notice
