Product Model

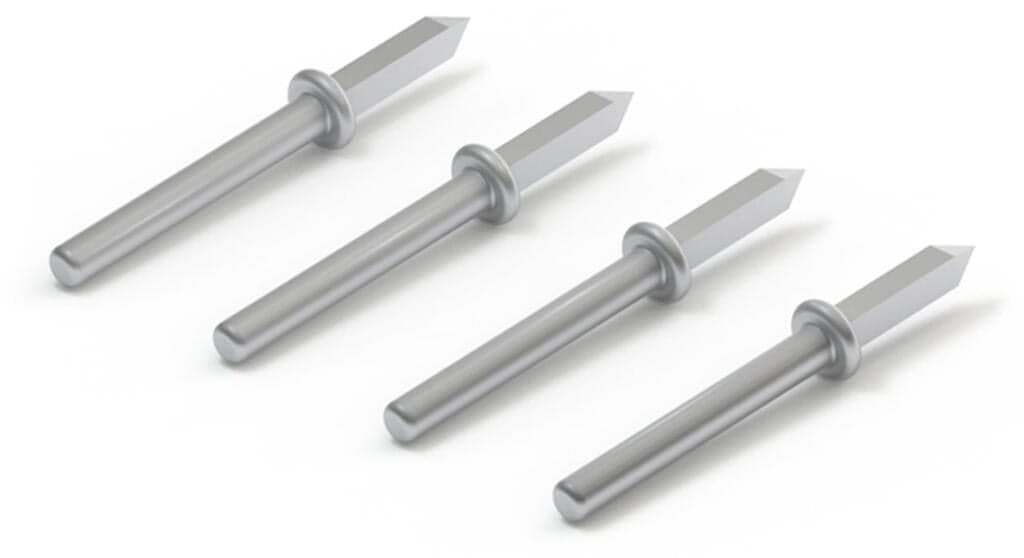

243-131
Selling Points
- 1RoHS Compliant: Meets environmental regulations with no exemptions.
- 2Silver-Colored: Durable and corrosion-resistant silver finish.
- 3Suitable for PCBs: Compatible with PCBs up to 2 mm thick.
- 4High Precision: 1 mm diameter and 4.5 mm length for precise connections.
- 5Bulk Availability: Available in quantities of 1000 pieces or more.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Number of levels | 1 | Solder pin length | 4.5mm |
Solder pin diameter | 1mm | Drilled hole diameter with tolerance | 1.2(+0.05)mm |
Suitable | for PCBs up to 2 mm thick | Contact type (pluggable connector) | Male connector/plug |
Connector (connection type) | for PCB | Mating direction to the PCB | 90° |
PCB contact | THT | Note (material data) | Information on material specifications can be found here |
Color | silver-colored | Weight | 0.1g |
eCl@ss 10.0 | 27-14-11-92 | eCl@ss 9.0 | 27-14-11-92 |
ETIM 9.0 | EC002848 | ETIM 8.0 | EC002848 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1000?pcs |
Packaging type | bag | Country of origin | DE |
GTIN | 4044918886017 | Customs tariff number | 8536908585 |
RoHS Compliance Status | Compliant,No Exemption | Number of poles | 1 |
Specifications may be subject to change without notice
