Product Model
243-212
Selling Points
- 1Compact design for low-power applications
- 2Push-in terminal connection for easy installation
- 3Suitable for 0.6 mm to 0.8 mm solid conductors

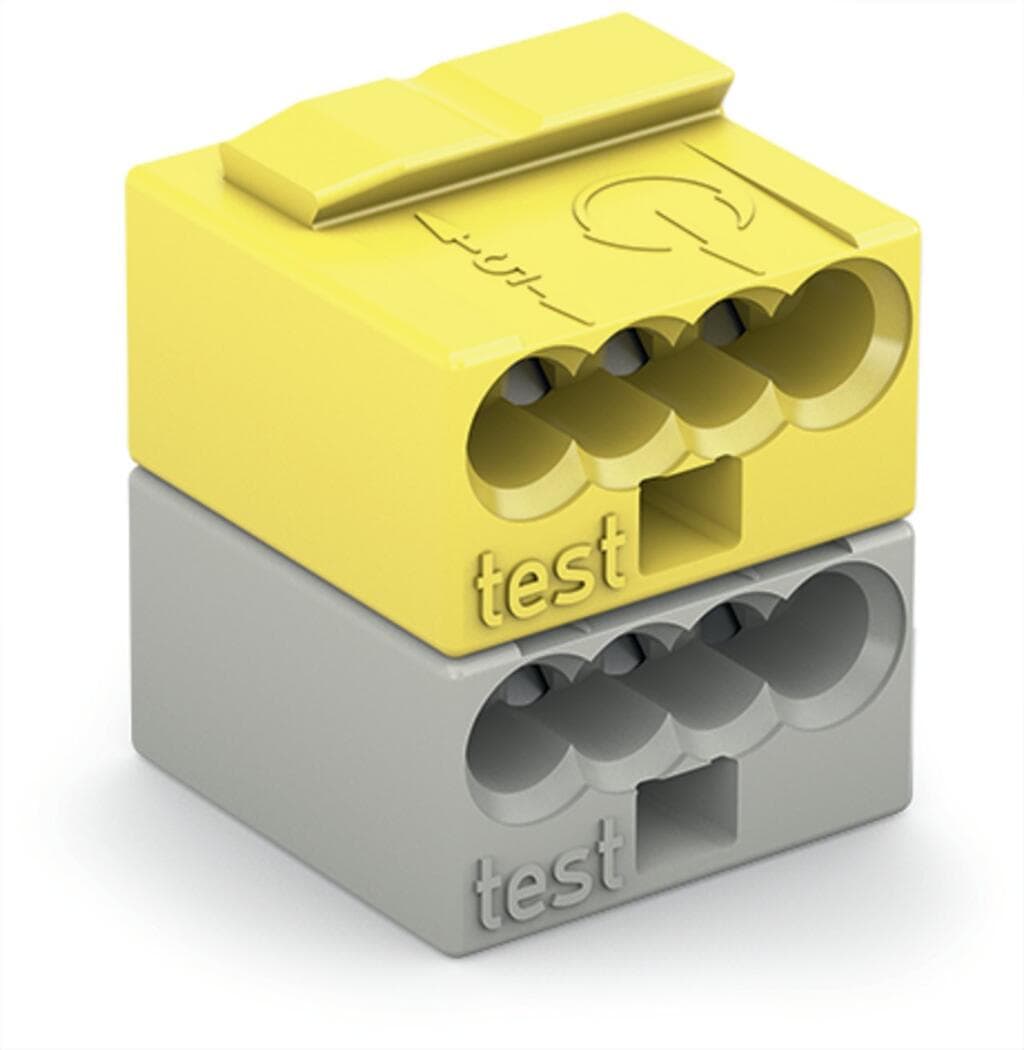

- 4Available in light grey and yellow colors
- 5Reliable connection technology from WAGO
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 8 | Total number of potentials | 2 |
Number of connection types | 1 | Number of levels | 1 |
Width | 10?mm?/ 0.394?inches | Height | 11.5?mm?/ 0.453?inches |
Depth | 10?mm?/ 0.394?inches | Contact type (pluggable connector) | Female connector/socket |
Connector (connection type) | for conductor | Note (material data) | Information on material specifications can be found here |
Color | light gray/yellow | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Clamping spring material | Chrome-nickel spring steel (CrNi) | Contact material | Electrolytic copper (ECu) |
Contact plating | Tin | Fire load | 0.024MJ |
Weight | 1.5g | Limit temperature range | -60 … +105?°C |
Continuous operating temperature | -60?°C | eCl@ss 10.0 | 27-14-11-04 |
eCl@ss 9.0 | 27-14-11-04 | ETIM 9.0 | EC000446 |
ETIM 8.0 | EC000446 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 500?(50)?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4044918441407 |
Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
Ratings per | IEC/EN 60664-1 | Rated voltage (III / 3) | 250V |
Rated impulse voltage (III / 3) | 4kV | Rated voltage (III/2) | 320V |
Rated surge voltage (III/2) | 4kV | Nominal voltage (II/2) | 630V |
Rated surge voltage (II/2) | 4kV | Rated current | 6A |
Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 | Connection technology | PUSH WIRE? |
Solid conductor | 22 … 18?AWG | Conductor diameter | 0.6 … 0.8?mm?/ 22 … 20?AWG |
Conductor diameter (note) | When using different conductor diameters | Strip length | 5 … 6?mm?/ 0.2 … 0.24?inches |
Number of poles | 2 | Solid conductor 2 | 18?AWG |
Conductor diameter 2 | 1?mm?/ 18?AWG | Conductor diameter (note) 2 | When using identical conductor diameters |
Specifications may be subject to change without notice
