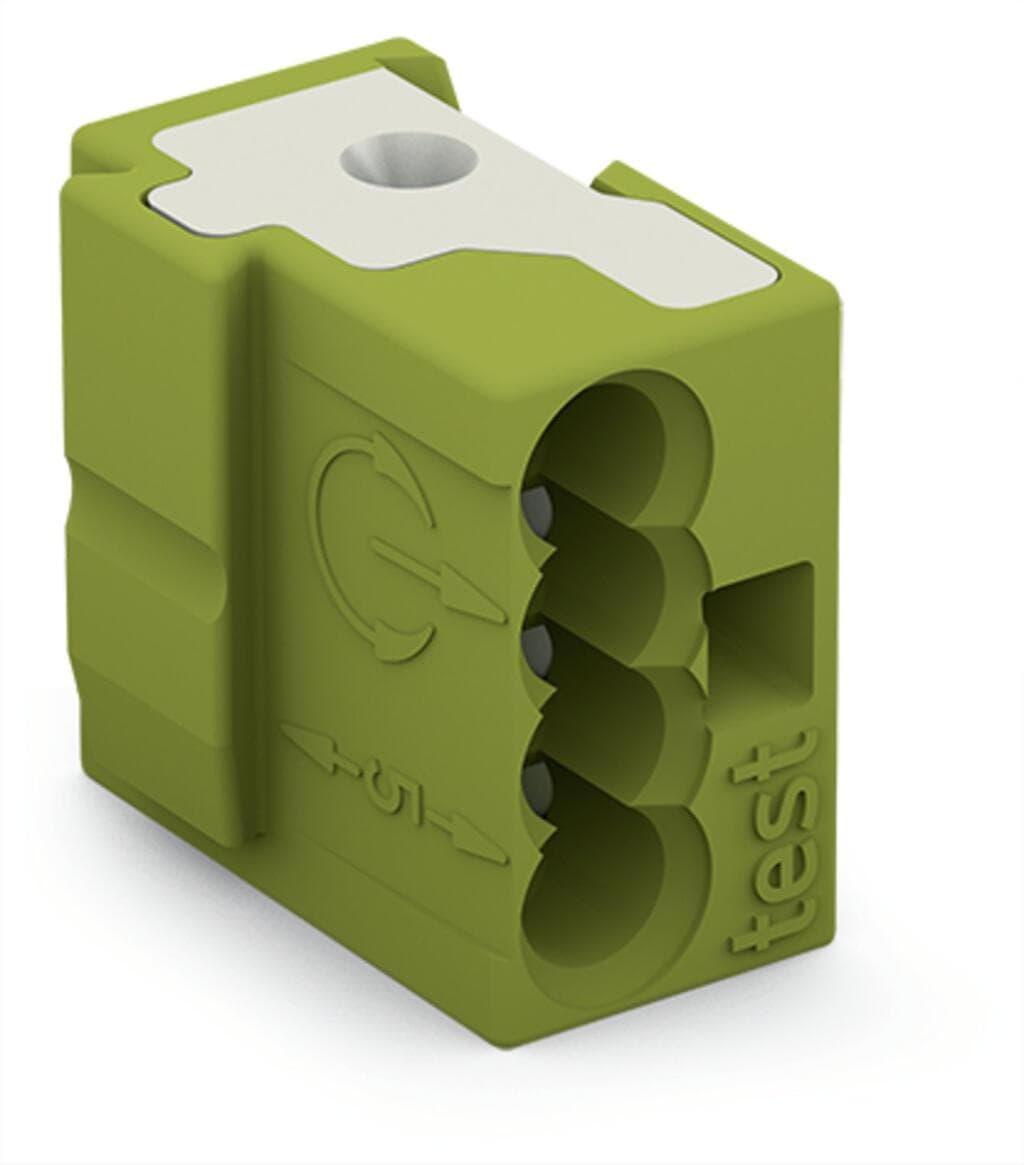

Product Model
243-721
Selling Points
- 1Quick and easy PCB replacement without disrupting looped-through potentials.
- 2Push-in termination of solid conductors up to 18 AWG.
- 3Four entries for power supply and potential distribution.
- 4Compatible with all conductor types, including copper solid conductors.
- 5RoHS compliant and UL listed for safety and reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Variants: | Other pole numbers | Clamping units | 4 |
Total number of potentials | 1 | Number of connection types | 1 |
Number of levels | 1 | Pin spacing | 5.75?mm?/ 0.226?inches |
Width | 5.75?mm?/ 0.226?inches | Height | 10?mm?/ 0.394?inches |
Depth | 10.5?mm?/ 0.413?inches | Solder pin length | 4.5mm |
Solder pin diameter | 1mm | Drilled hole diameter with tolerance | 1.2(-0.05 … +0.05)mm |
Contact type (pluggable connector) | Female connector/socket | Connector (connection type) | for PCB |
Mating direction to the PCB | 90° | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Clamping spring material | Copper alloy | Contact material | Electrolytic copper (ECu) |
Contact plating | Tin | Fire load | 0.012MJ |
Weight | 0.8g | Limit temperature range | -60 … +105?°C |
Continuous operating temperature | -60?°C | eCl@ss 10.0 | 27-44-04-01 |
eCl@ss 9.0 | 27-44-04-01 | ETIM 9.0 | EC002643 |
ETIM 8.0 | EC002643 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 400?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4044918440912 |
Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
Ratings per | IEC/EN 60664-1 | Rated voltage (III / 3) | 250V |
Rated impulse voltage (III / 3) | 4kV | Rated voltage (III/2) | 320V |
Rated surge voltage (III/2) | 4kV | Nominal voltage (II/2) | 630V |
Rated surge voltage (II/2) | 4kV | Rated current | 6A |
Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 | Approvals per | CSA |
Rated voltage UL (Use Group B) | 150V | Rated current UL (Use Group B) | 7A |
Rated voltage UL (Use Group D) | 150V | Rated current UL (Use Group D) | 7A |
Rated voltage CSA (Use Group B) | 150V | Rated current CSA (Use Group B) | 7A |
Rated voltage CSA (Use Group D) | 150V | Rated current CSA (Use Group D) | 7A |
Connection technology | PUSH WIRE? | Connectable conductor materials | Copper |
Solid conductor | 22 … 18?AWG | Conductor diameter | 0.5 … 1?mm?/ 24 … 18?AWG |
Strip length | 5 … 6?mm?/ 0.2 … 0.24?inches | Conductor connection direction to PCB | 0° |
Number of poles | 1 |
Specifications may be subject to change without notice
