Product Model

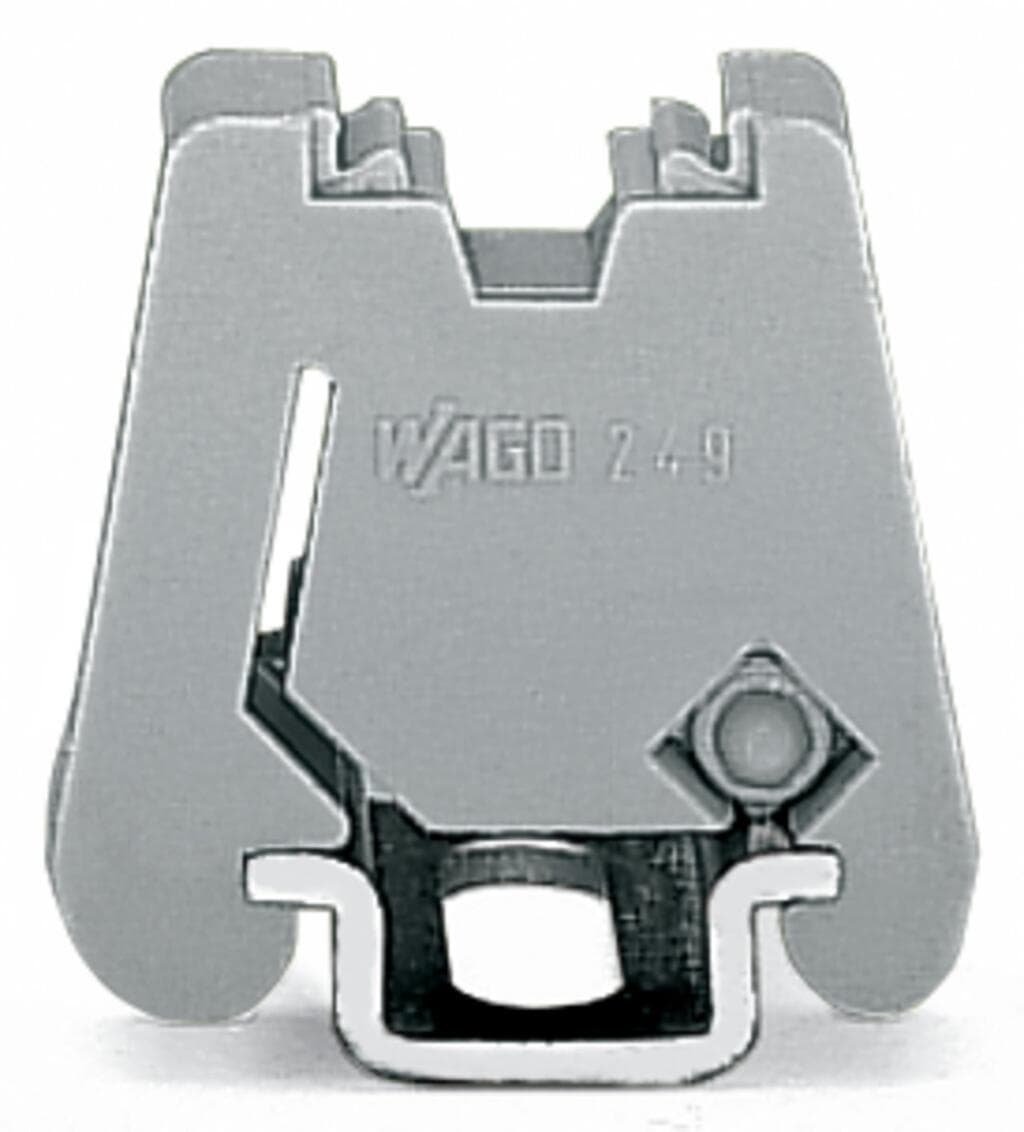

249-101
Selling Points
- 1Gray Color: The WAGO 249-101 features a durable gray color.
- 2DIN-15 Rail Compatible: Designed for mounting on DIN-15 rails.
- 36 mm Wide: Compact design with a width of 6 mm.
- 4ROHS Compliant: Meets ROHS standards for environmental safety.
- 5Easy Installation: Screwless design for quick and secure mounting.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Mounting type | DIN-15 rail | Width | 6?mm?/ 0.236?inches |
Height | 23.2?mm?/ 0.913?inches | Depth from upper-edge of DIN-rail | 16?mm?/ 0.63?inches |
Color | gray | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.049MJ |
Weight | 1.6g | Product Group | 2 (Terminal Block Accessories) |
eCl@ss 10.0 | 27-14-11-35 | eCl@ss 9.0 | 27-14-11-35 |
ETIM 9.0 | EC001041 | ETIM 8.0 | EC001041 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 50?(25)?pcs |
Packaging type | box | Country of origin | CN |
GTIN | 4050821427766 | Customs tariff number | 8538906000 |
RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
