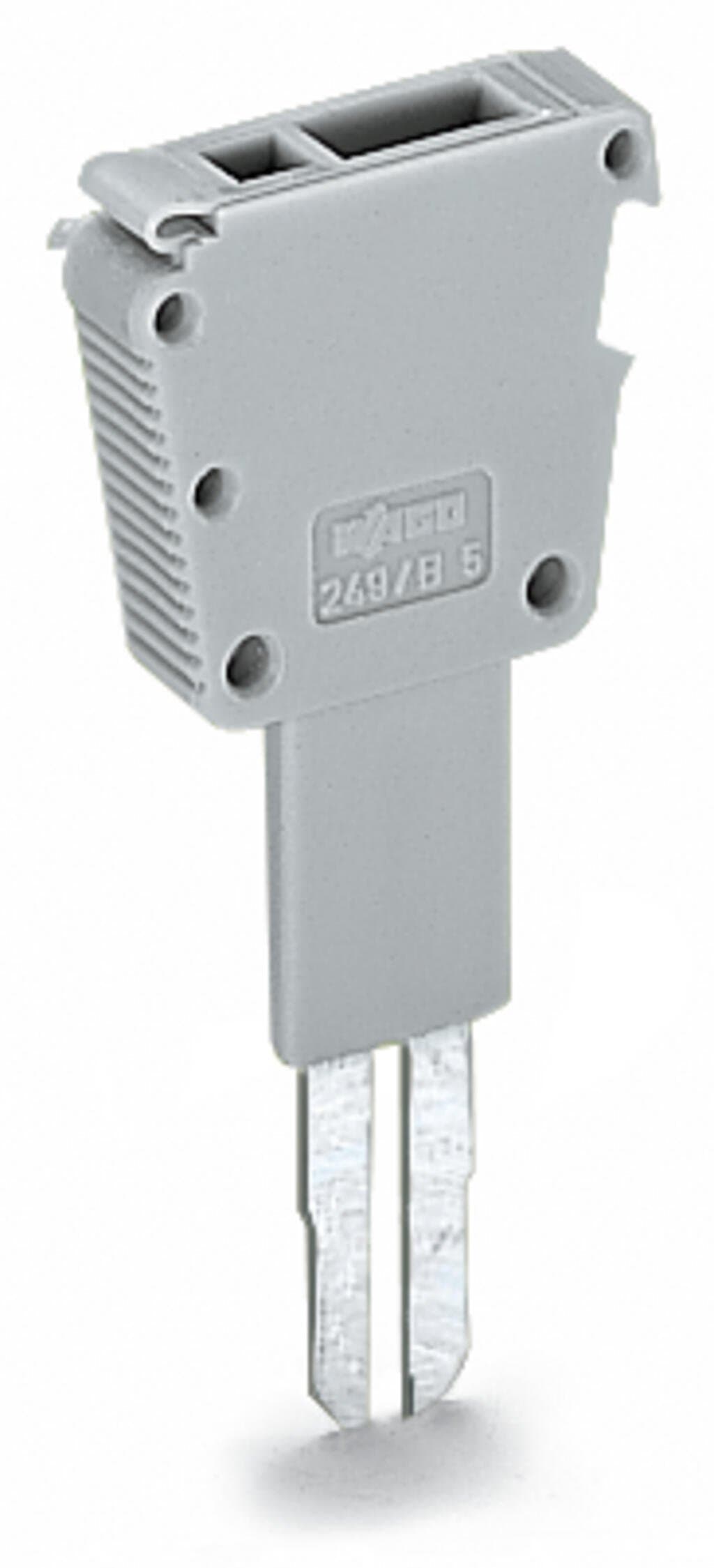

Product Model
249-106
Selling Points
- 1Modular design for easy installation and customization.
- 2Compatible with 1.5mm² wires, ensuring reliable connections.
- 3Features CAGE CLAMP spring connections for secure wiring.
- 4Gray color for easy identification in various environments.
- 5DIN rail compatible, perfect for industrial applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | These test plugs are not suitable for Ex e applications. | Clamping units | 1 |
Total number of potentials | 1 | Width | 5?mm?/ 0.197?inches |
Module width | 5?mm?/ 0.197?inches | Marking level | Side marking |
Note (material data) | Information on material specifications can be found here | Color | gray |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V2 |
Fire load | 0.032MJ | Weight | 2.2g |
Product Group | 2 (Terminal Block Accessories) | eCl@ss 10.0 | 27-14-11-48 |
eCl@ss 9.0 | 27-14-11-48 | ETIM 9.0 | EC002555 |
ETIM 8.0 | EC002555 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 100?(25)?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4045454265083 |
Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Test voltage | 630V |
Test current | 10A | Connection technology | CAGE CLAMP? |
Actuation type | Operating tool | Connectable conductor materials | Copper |
Solid conductor | 0.08 … 1.5?mm2?/ 28 … 16?AWG | Fine-stranded conductor | 0.08 … 1.5?mm2?/ 28 … 16?AWG |
Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches | Number of poles | 1 |
Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
