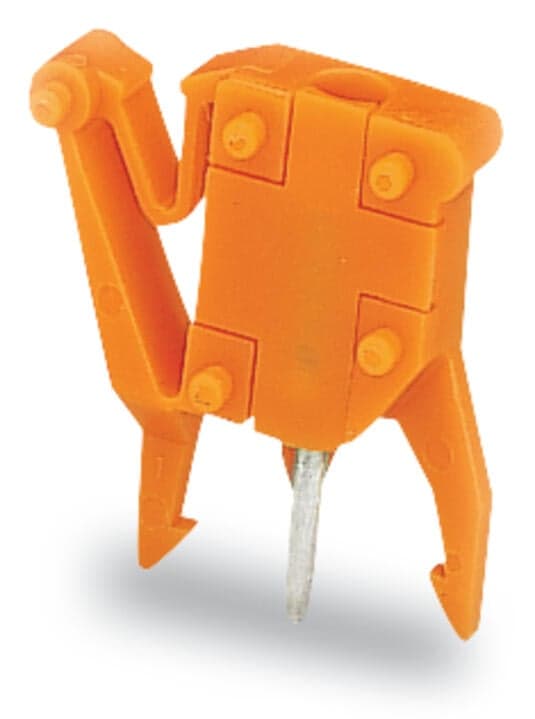

Product Model
249-115
Selling Points
- 1Durable and precise design ensures reliable performance.
- 2Simple to use, no special tools required.
- 3Suitable for various PCB terminal types.
- 4Available in packs of 25 units.
- 5Order now for delivery in as little as 20 weeks.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Pin spacing | 10.16?mm?/ 0.4?inches | Width | 10.16?mm?/ 0.4?inches |
Height | 21.5?mm?/ 0.846?inches | Depth | 19.5?mm?/ 0.768?inches |
Suitable | for PCB terminal blocks (255, 256, 257 Series); with socket for 2 mm and 2.3 mm ? test plugs | Note (material data) | Information on material specifications can be found here |
Color | orange | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.035MJ | Weight | 1.6g |
Limit temperature range | -60 … +105?°C | Product Group | 2 (Terminal Block Accessories) |
eCl@ss 10.0 | 27-14-11-48 | eCl@ss 9.0 | 27-14-11-48 |
ETIM 9.0 | EC002255 | ETIM 8.0 | EC002255 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 100?(25)?pcs |
Packaging type | box | Country of origin | CH |
GTIN | 4045454306861 | Customs tariff number | 8536698000 |
RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60664-1 |
Rated voltage (III/2) | 320V | Rated surge voltage (III/2) | 4kV |
Rated current | 6A | Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 |
Number of poles | 1 |
Specifications may be subject to change without notice
