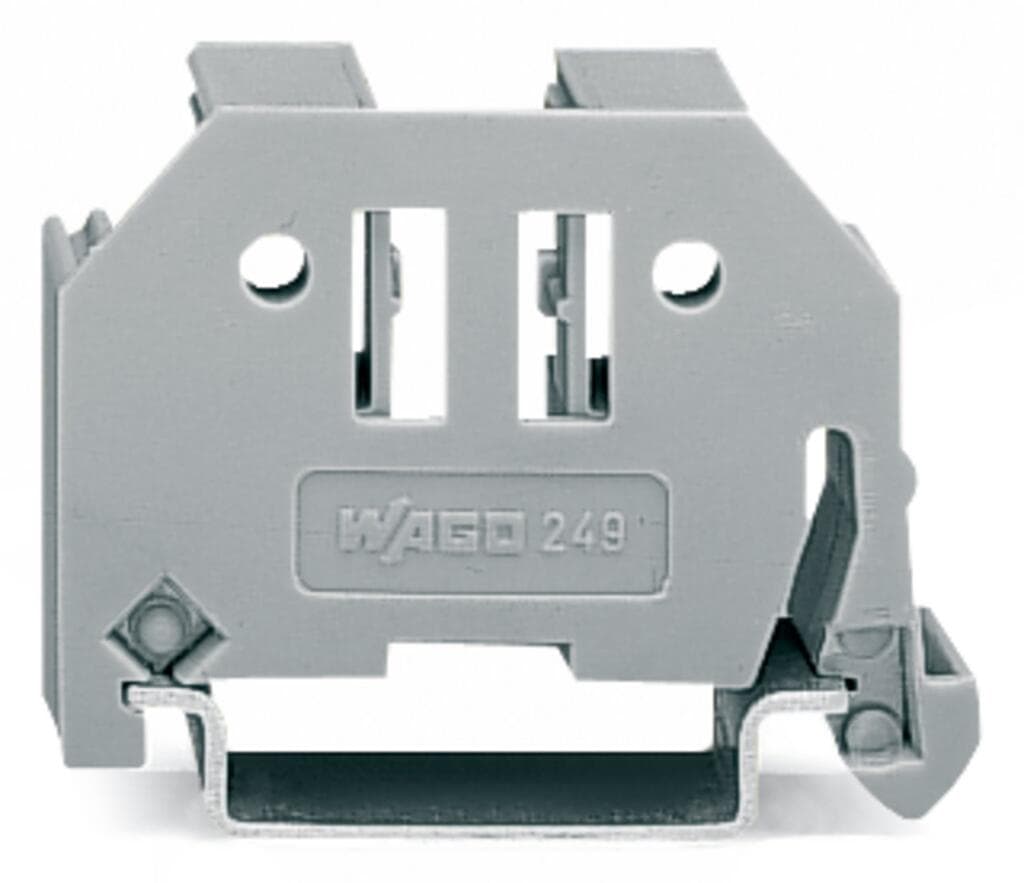

Product Model
249-117
Selling Points
- 1Tool-free design for easy installation.
- 2Securely mounts terminal blocks on DIN-35 rails.
- 3Excellent tight fit with two small clamping plates.
- 4Suitable for use with 249 Series DIN-35 rail terminal blocks.
- 5Gray color, 10mm wide, and 45mm deep for precise mounting.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | Snap on – that's it!Assembling the new WAGO screwless end stop is as simple and quick as snapping a WAGO rail-mount terminal block onto the rail.Tool free!A tool-free design allows rail-mount terminal blocks to be safely and economically secured against any movement on all DIN-35 rails per DIN EN 60715 (35 x 7.5 mm; 35 x 15 mm).Entirely without screws!The “secret” to a perfect fit lies in the two small clamping plates which keep the end stop in position, even if the rails are mounted vertically.Simply snap on – that's it!In addition, costs are significantly reduced when using large numbers of end stops.Additional benefit: Three marker slots for all WAGO rail-mount terminal block markers and one snap-in hole for WAGO adjustable height group marker carriers offer individual marking options. | Mounting type | DIN-35 rail |
Width | 10?mm?/ 0.394?inches | Height | 44?mm?/ 1.732?inches |
Depth | 35?mm?/ 1.378?inches | Depth from upper-edge of DIN-rail | 28?mm?/ 1.102?inches |
Color | gray | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.145MJ |
Weight | 4.9g | Product Group | 2 (Terminal Block Accessories) |
eCl@ss 10.0 | 27-14-11-35 | eCl@ss 9.0 | 27-14-11-35 |
ETIM 9.0 | EC001041 | ETIM 8.0 | EC001041 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 50?(25)?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4055143314169 | Customs tariff number | 8538906000 |
RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
