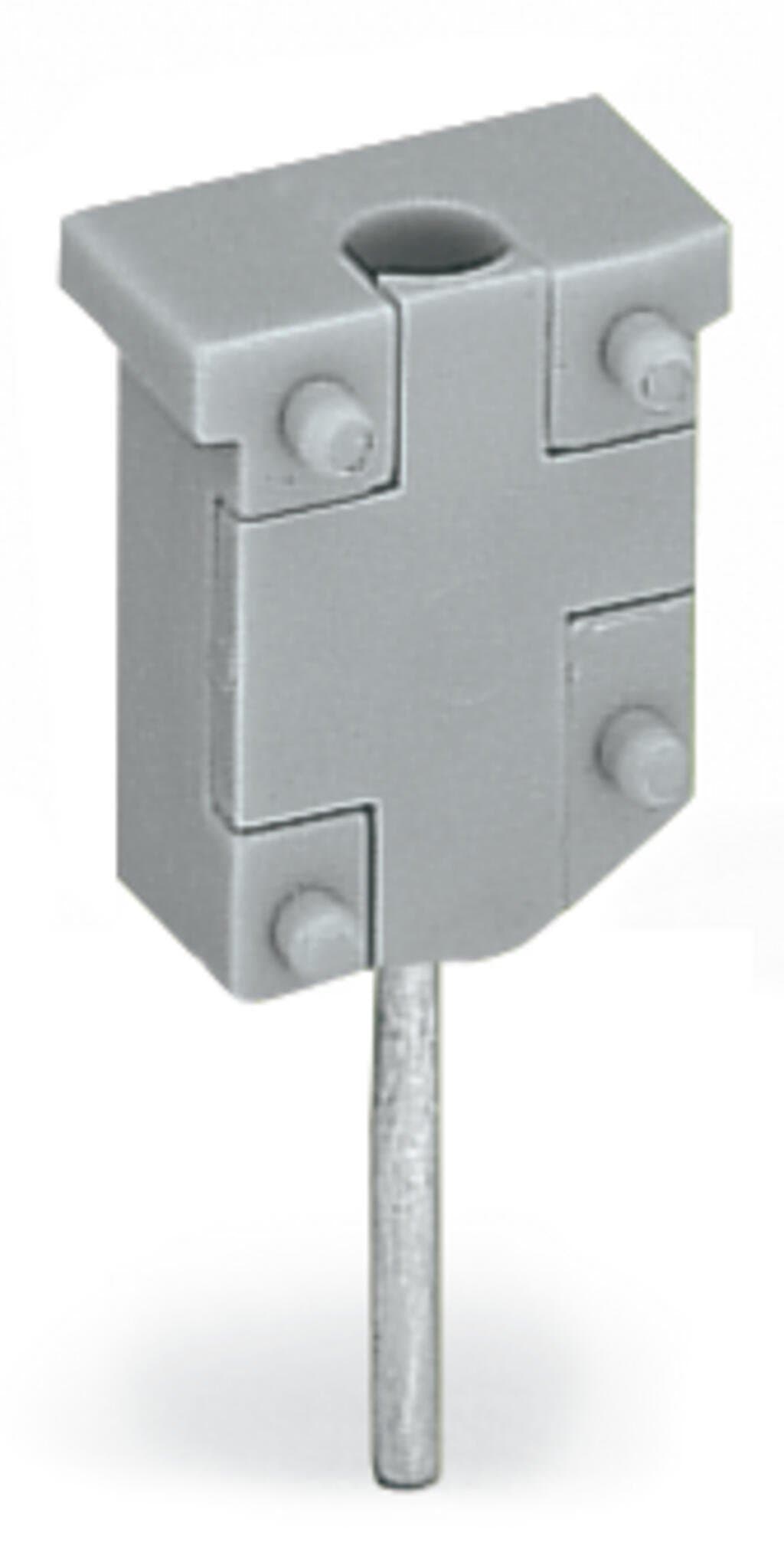

Product Model
249-136
Selling Points
- 1Modular Design: Compatible with 2-conductor terminal blocks.
- 2Gray Color: Easy to identify in any setup.
- 348V Test Voltage: Safely tests electrical circuits.
- 4Compact Size: Measures 6 mm / 0.236 inch wide.
- 5High-Quality Brand: Manufactured by WAGO, a trusted brand in electrical components.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | Middle pressure, 2.2 N per pole | Width | 6?mm?/ 0.236?inches |
Module width | 6?mm?/ 0.236?inches | Note (material data) | Information on material specifications can be found here |
Color | gray | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.1MJ |
Weight | 1.2g | Product Group | 2 (Terminal Block Accessories) |
eCl@ss 10.0 | 27-14-11-48 | eCl@ss 9.0 | 27-14-11-48 |
ETIM 9.0 | EC002555 | ETIM 8.0 | EC002555 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 100?(25)?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4045454335953 | Customs tariff number | 8536904000 |
CAS-No. | 7439-92-1 | REACH Candidate List Substance | Lead |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 6(c) |
SCIP notification number (Austria) | b0e1dd8d-fb89-4e70-85a2-85bf818c9ec6 | SCIP notification number (Belgium) | ec457443-2558-41dc-900b-f19efd86d49b |
SCIP notification number (Bulgaria) | e6ae450f-f296-407f-8fbf-903779a9795a | SCIP notification number (Czech Republic) | 876369e4-ada3-4cd3-8677-cd49b06e8a54 |
SCIP notification number (Denmark) | cf134109-fd54-408c-bef8-d4e61713201a | SCIP notification number (Finland) | dd295e68-7240-480c-adce-01131b10979a |
SCIP notification number (France) | 4be5b798-ada1-4729-b976-6fc99e16dae4 | SCIP notification number (Germany) | bc0b436d-1e1c-40b0-92e0-3b3d0eaf5066 |
SCIP notification number (Hungary) | f684f1f2-126d-490e-b7c4-35c8af69a88f | SCIP notification number (Italy) | 8534f5b4-70fe-4c8d-bd0d-fbd846a7fd6b |
SCIP notification number (Netherlands) | cdbca3e9-33ad-4929-92d9-f5695a84d4dd | SCIP notification number (Poland) | 18e1ea41-89a7-4263-8584-eb0689b2c08e |
SCIP notification number (Romania) | 29b5e961-8d8f-4cbc-9734-18002dfbae28 | SCIP notification number (Sweden) | 8180e40f-b14b-49d8-88a4-a7bab9cea884 |
Rated voltage (III / 3) | 400V | Ratings (note) | Maximum test voltage (touch contact): 48 V (test pins are not touch-proof) |
Ratings (note) 2 | Maximum test current (touch contact): 0.5 AMaximum test current: 6 A (if the test pins are securely connected in the clamping units) | Test voltage | 400V |
Test current | 0.5A |
Specifications may be subject to change without notice
