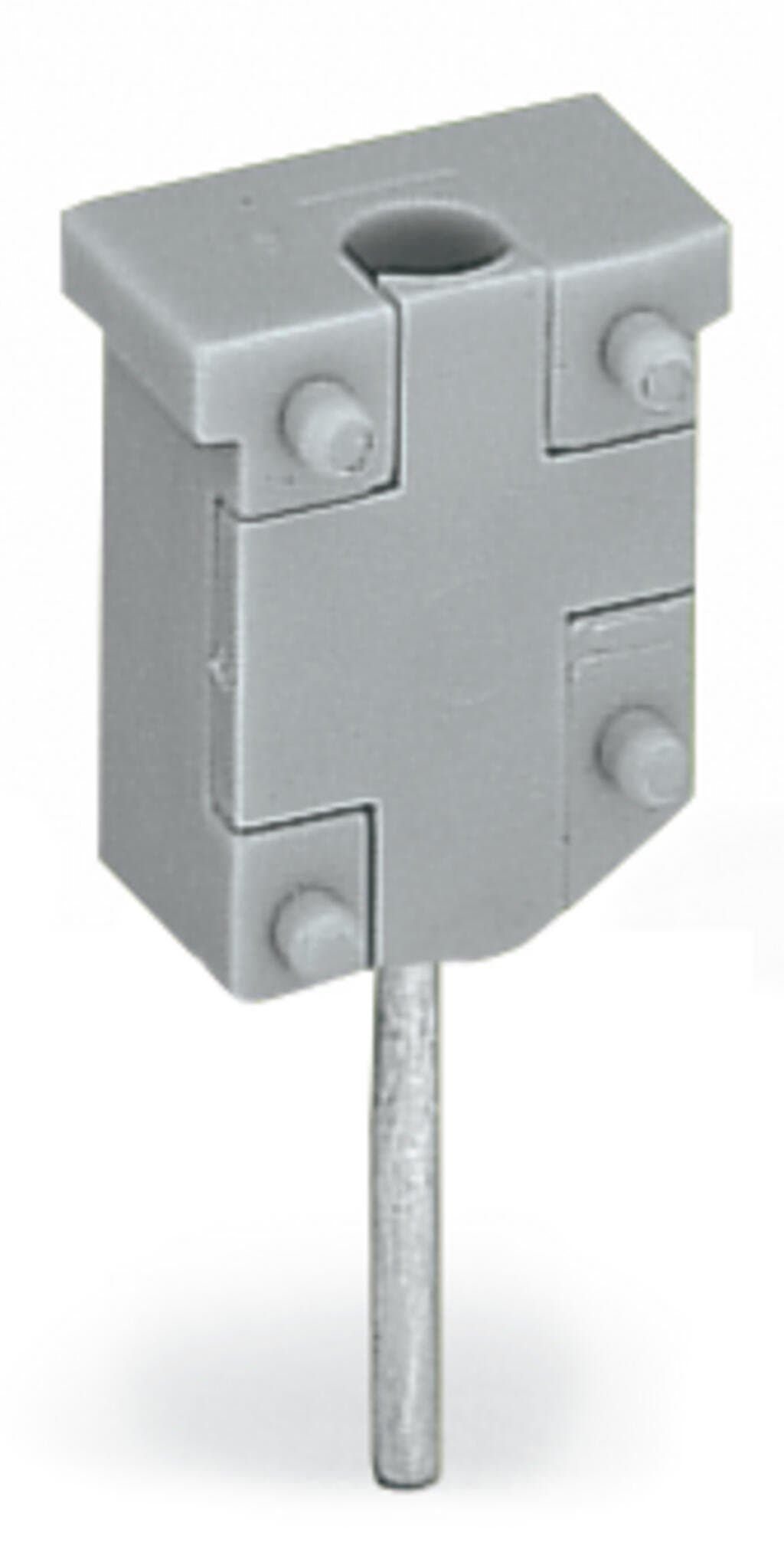

Product Model
249-137
Selling Points
- 1Supports conductors from 0.14 to 1.5 mm², suitable for various applications.
- 2Meets stringent safety standards for Ex i and Ex e II applications.
- 3Constructed with high-quality materials for long-lasting performance.
- 4Snap-in mounting feet and screw mount options for quick and secure installation.
- 5Rated for 800 V/6 kV/3 600 V, ensuring reliable operation in diverse electrical environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | Middle pressure, 2.2 N per pole | Width | 7?mm?/ 0.276?inches |
Module width | 7?mm?/ 0.276?inches | Note (material data) | Information on material specifications can be found here |
Color | gray | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.102MJ |
Weight | 1.1g | Product Group | 2 (Terminal Block Accessories) |
eCl@ss 10.0 | 27-14-11-48 | eCl@ss 9.0 | 27-14-11-48 |
ETIM 9.0 | EC002555 | ETIM 8.0 | EC002555 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 100?(25)?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4050821868927 | Customs tariff number | 8536904000 |
CAS-No. | 7439-92-1 | REACH Candidate List Substance | Lead |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 6(c) |
SCIP notification number (Austria) | b33b9467-f8a9-4db1-8165-6cd5fb8cd0db | SCIP notification number (Belgium) | 05110c70-61f2-4a46-a617-6ad896e58ea6 |
SCIP notification number (Bulgaria) | 7b2ad740-6ca4-4a69-b244-29722f7d0c36 | SCIP notification number (Czech Republic) | 56de8b48-47b8-483a-9a8a-df9f7f5ac2cc |
SCIP notification number (Denmark) | 5d07a681-1d3a-472c-b8ad-0c2e8d9305ac | SCIP notification number (Finland) | d437dea4-6dee-483d-9d9a-f7e14313af28 |
SCIP notification number (France) | 186967e1-a093-417a-8fa5-6daa86e69ff0 | SCIP notification number (Germany) | d7e004af-aed2-4025-ab4d-8e778d2f5475 |
SCIP notification number (Hungary) | 34f3bcbf-7a65-48e9-91e6-0460b9b55e2a | SCIP notification number (Italy) | b52ed689-b804-4dd6-b0c2-2bcfbb641335 |
SCIP notification number (Netherlands) | 6c2ccd93-80d1-4d52-813e-8cfe40149b93 | SCIP notification number (Poland) | e47b79b1-79d0-4745-adad-465a33a1bea4 |
SCIP notification number (Romania) | 85c103c2-76c2-4099-a44a-23e2eb569291 | SCIP notification number (Sweden) | 46e07948-bab3-4bc9-9223-a30d0c2d8f84 |
Rated voltage (III / 3) | 500V | Ratings (note) | Maximum test voltage (touch contact): 48 V (test pins are not touch-proof) |
Ratings (note) 2 | Maximum test current (touch contact): 0.5 AMaximum test current: 6 A (if the test pins are securely connected in the clamping units) | Test voltage | 500V |
Test current | 0.5A |
Specifications may be subject to change without notice
