Product Model

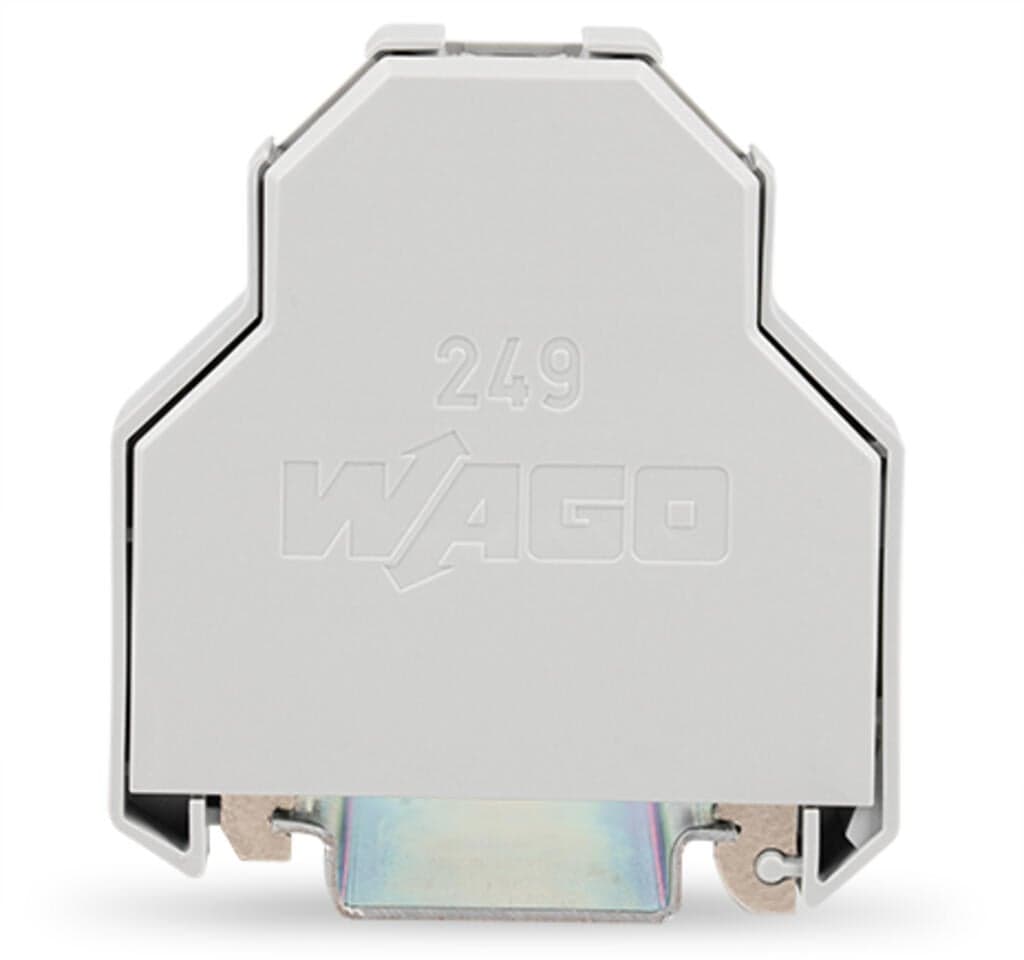

249-198
Selling Points
- 114mm wide, designed for DIN-rail 35 x 15 and 35 x 7.5.
- 2Made from gray polyamide (PA66) with a flammability class of V0.
- 3Screwless end stop for quick and secure mounting.
- 4Meets environmental standards regarding the restriction of hazardous substances.
- 5Available in a box packaging type with a standard pack unit (SPU) of 10 pieces.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Mounting type | DIN-35 rail | Width | 14?mm?/ 0.51?inches |
Height from upper-edge of DIN-rail | 60?mm?/ 2.362?inches | Depth | 60?mm?/ 2.362?inches |
Color | gray | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.576MJ |
Weight | 22.9g | ETIM 9.0 | EC001041 |
ETIM 8.0 | EC001041 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 10?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4055143960533 |
Customs tariff number | 8538906000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
