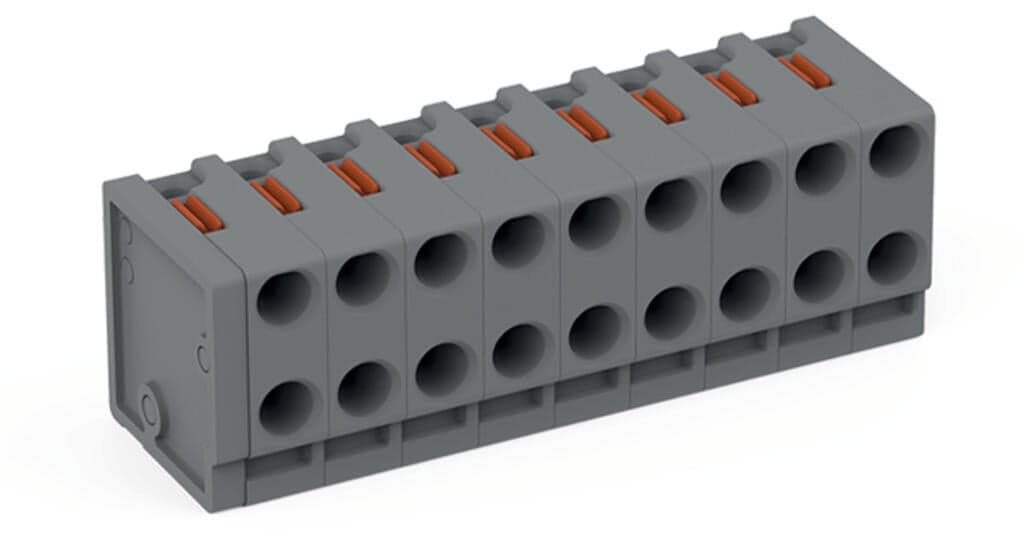

Product Model
252-309
Selling Points
- 1High-performance industrial automation component for precise control.
- 2Durable design with long-lasting reliability in harsh environments.
- 3Easy integration with existing systems for seamless operation.
- 4Advanced connectivity options for efficient data transfer.
- 5Compact size for space-saving installation in industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Variants: | Other pole numbers | Total number of potentials | 9 |
Number of connection types | 1 | Number of levels | 1 |
Pin spacing | 3.5?mm?/ 0.138?inches | Width | 31.5?mm?/ 1.240?inches |
Height | 11?mm?/ 0.433?inches | Depth | 11.8?mm?/ 0.465?inches |
Contact type (pluggable connector) | Female connector/socket | Connector (connection type) | for PCB |
Plugging without loss of pin spacing | Yes | Mating direction to the rail-mount terminal block | 90° |
Note (material data) | Information on material specifications can be found here | Color | gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Clamping spring material | Copper alloy |
Contact material | Electrolytic copper (ECu) | Contact plating | Tin |
Fire load | 0.085MJ | Weight | 4.1g |
Limit temperature range | -60 … +105?°C | ETIM 9.0 | EC002643 |
ETIM 8.0 | EC002643 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 200?(50)?pcs | Packaging type | box |
Country of origin | PL | GTIN | 4055143959308 |
Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
Ratings per | IEC/EN 60664-1 | Rated voltage (III / 3) | 160V |
Rated impulse voltage (III / 3) | 2.5kV | Rated voltage (III/2) | 160V |
Rated surge voltage (III/2) | 2.5kV | Nominal voltage (II/2) | 320V |
Rated surge voltage (II/2) | 2.5kV | Rated current | 2A |
Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 | Approvals per | UL 1059 |
Rated voltage UL (Use Group B) | 300V | Rated current UL (Use Group B) | 2A |
Rated voltage UL (Use Group D) | 300V | Rated current UL (Use Group D) | 2A |
Connection technology | PUSH WIRE? | Actuation type | Push-button |
Solid conductor | 0.14 … 0.5?mm2?/ 26 … 20?AWG | Conductor diameter | 0.4 … 0.8?mm?/ 26 … 20?AWG |
Strip length | 6 … 7?mm?/ 0.24 … 0.28?inches | Conductor connection direction to PCB | 0° |
Number of poles | 9 | Test specification <br/>Railway applications – <br/>Rolling stock – <br/>Electronic equipment | DIN EN 50155 (VDE 0115-200):2022-06 |
Test procedure <br/>Railway applications – <br/>Rolling stock equipment – <br/>Shock and vibration tests | DIN EN 61373 (VDE 0115-0106):2011-04 | Spectrum/Installation location | Service life test, Category?1, Class?A/B |
Function test with noise-like vibration | Test passed according to Section 8 of the standard | Frequency | f1= 5 Hz to f2= 150 Hz |
Acceleration | 5g (highest test level used for all axes) | Test duration per axis | 5 h |
Test directions | X, Y and Z axes | Monitoring for contact faults/interruptions | Passed |
Voltage drop measurement before and after each axis | Passed | Simulated service life test through increased levels of noise-like vibration | Test passed according to Section 9 of the standard |
Extended test scope: Monitoring for contact faults/interruptions | Passed | Extended test scope: Voltage drop measurement before and after each axis | Passed |
Shock test | Test passed according to Section 10 of the standard | Shock form | Half sine |
Shock duration | 30 ms | Number of shocks per axis | 3 pos. und 3 neg. |
Vibration and shock stress for rolling stock equipment | Passed |
Specifications may be subject to change without notice
