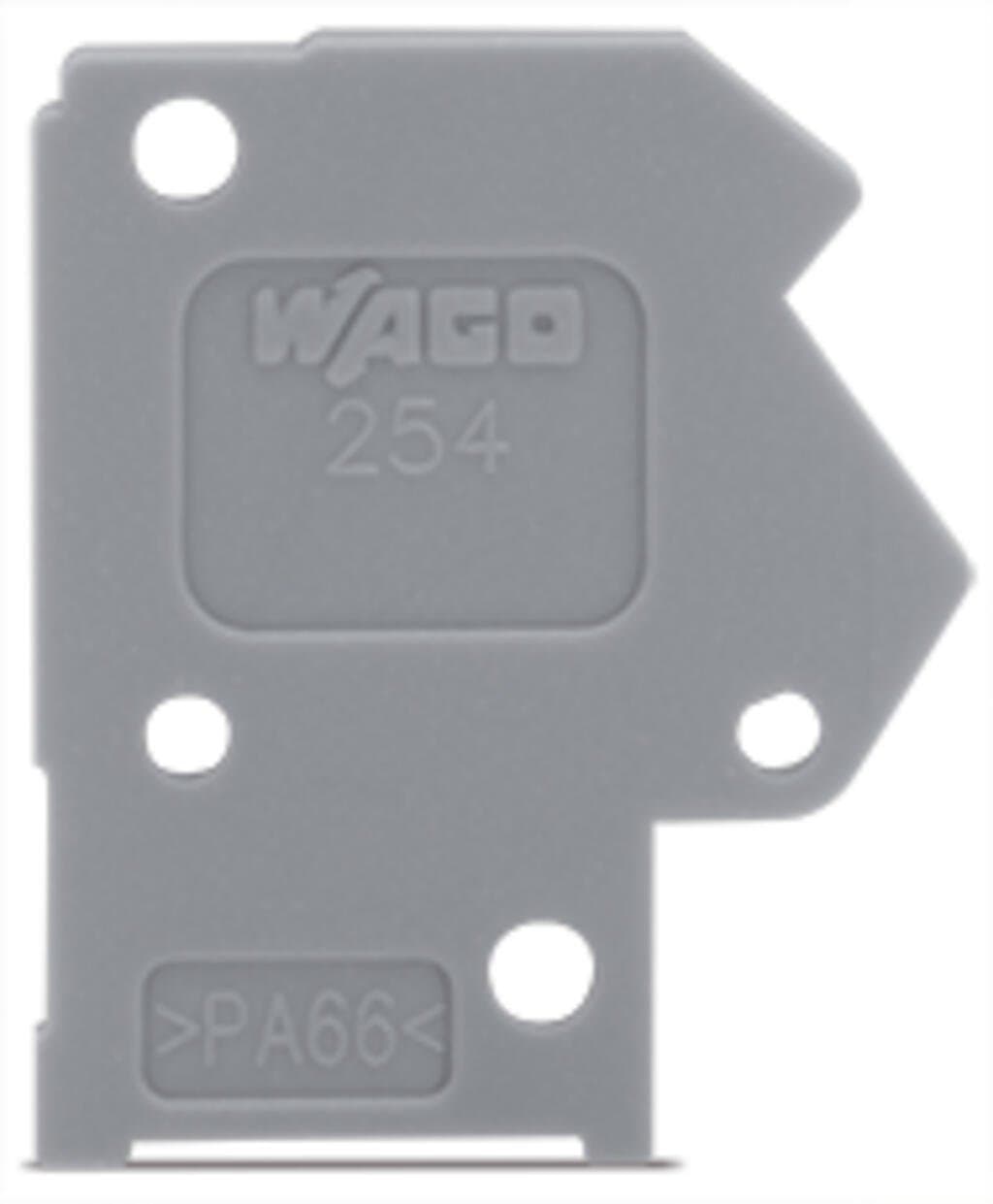

Product Model
254-300
Selling Points
- 1Snap-fit design for easy installation
- 2Light gray color for visibility and aesthetics
- 31 mm thickness for robust connections
- 4Ideal for PCB terminal blocks and pluggable connectors
- 5Durable and reliable for various electronic applications
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 1?mm?/ 0.039?inches | Height | 15.7?mm?/ 0.618?inches |
Depth | 13.5?mm?/ 0.531?inches | Mounting type | snap-on type |
Note (material data) | Information on material specifications can be found here | Color | light gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.005MJ |
Weight | 0.2g | Product Group | 4 (Printed Circuit Connectors) |
eCl@ss 10.0 | 27-44-04-92 | eCl@ss 9.0 | 27-44-04-92 |
ETIM 9.0 | EC000886 | ETIM 8.0 | EC000886 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 2000?(100)?pcs |
Packaging type | box | Country of origin | CH |
GTIN | 4017332268813 | Customs tariff number | 8538906000 |
RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
