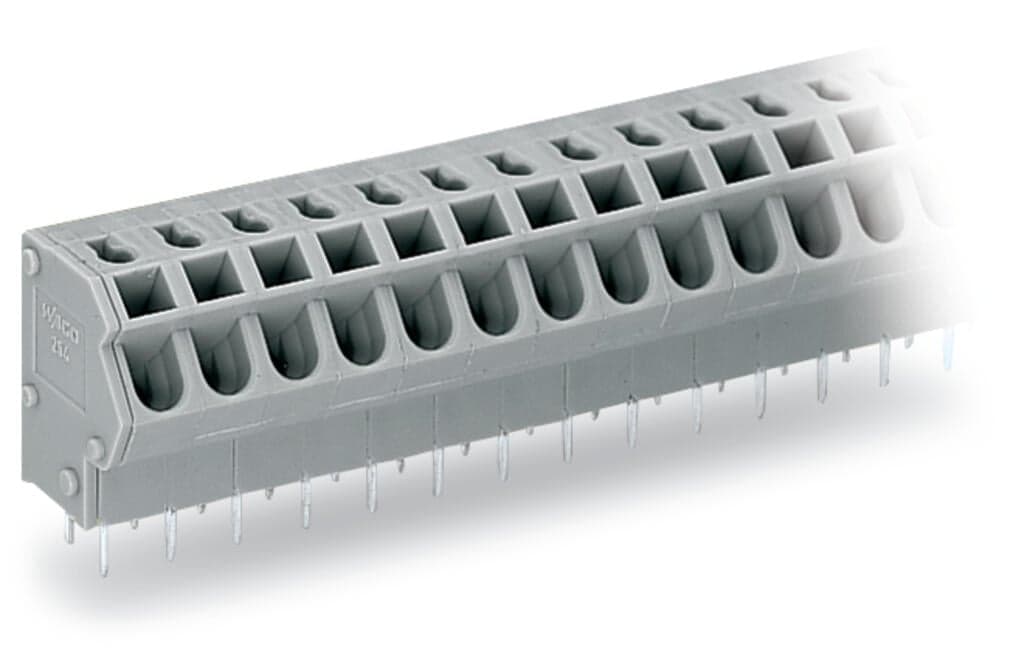

Product Model
254-460
Selling Points
- 1Reliable PUSH WIRE Connection: Securely connect solid and ferruled conductors with the PUSH WIRE technology.
- 2High-Quality Materials: Constructed with durable polyamide 66 (PA 66) and chrome nickel spring steel for long-lasting performance.
- 3Efficient Design: Save space on PCBs with a depth of just 8.9 mm, ideal for compact designs.
- 4Comprehensive Certifications: Meets IEC/EN 60664-1, UL 1059, and CSA standards for electrical safety.
- 5Versatile Applications: Suitable for various applications including drive and controller technology, lighting industry, and more.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Variants: | Other pole numbers | Clamping units | 10 |
Total number of potentials | 10 | Number of connection types | 1 |
Number of levels | 1 | Pin spacing | 5/5.08?mm?/ 0.197/0.2?inches |
Width | 51.5?mm?/ 2.028?inches | Height | 19.7?mm?/ 0.776?inches |
Height from the surface | 15.7?mm?/ 0.618?inches | Depth | 13.5?mm?/ 0.531?inches |
Solder pin length | 4mm | Solder pin dimensions | 0.5 x 0.75?mm |
Drilled hole diameter with tolerance | 1.1(+0.1)mm | PCB contact | THT |
Solder pin arrangement | over the entire terminal strip (in-line) | Number of solder pins per potential | 2 |
Note (material data) | Information on material specifications can be found here | Color | gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Clamping spring material | Chrome-nickel spring steel (CrNi) |
Contact material | Electrolytic copper (ECu) | Contact plating | Tin |
Fire load | 0.185MJ | Weight | 11g |
Limit temperature range | -60 … +105?°C | Product Group | 4 (Printed Circuit Connectors) |
eCl@ss 10.0 | 27-44-04-01 | eCl@ss 9.0 | 27-44-04-01 |
ETIM 9.0 | EC002643 | ETIM 8.0 | EC002643 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 80?(20)?pcs |
Packaging type | box | Country of origin | PL |
GTIN | 4044918940689 | Customs tariff number | 8536904000 |
RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60664-1 |
Rated voltage (III / 3) | 320V | Rated impulse voltage (III / 3) | 4kV |
Rated voltage (III/2) | 320V | Rated surge voltage (III/2) | 4kV |
Nominal voltage (II/2) | 630V | Rated surge voltage (II/2) | 4kV |
Rated current | 24A | Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 |
Approvals per | CSA | Rated voltage UL (Use Group B) | 300V |
Rated current UL (Use Group B) | 10A | Rated voltage UL (Use Group D) | 300V |
Rated current UL (Use Group D) | 10A | Rated voltage CSA (Use Group B) | 300V |
Rated current CSA (Use Group B) | 10A | Rated voltage CSA (Use Group D) | 300V |
Rated current CSA (Use Group D) | 10A | Connection technology | PUSH WIRE? |
Actuation type | Operating tool | Solid conductor | 0.5 … 2.5?mm2?/ 20 … 14?AWG |
Fine-stranded conductor; with insulated ferrule | 0.5 … 1.5?mm2 | Fine-stranded conductor; with uninsulated ferrule | 0.5 … 1.5?mm2 |
Note (conductor cross-section) | 12 AWG: THHN, THWN | Strip length | 10 … 12?mm?/ 0.39 … 0.47?inches |
Conductor connection direction to PCB | 45° | Number of poles | 10 |
Specifications may be subject to change without notice
