Product Model
255-609/333-000
Selling Points

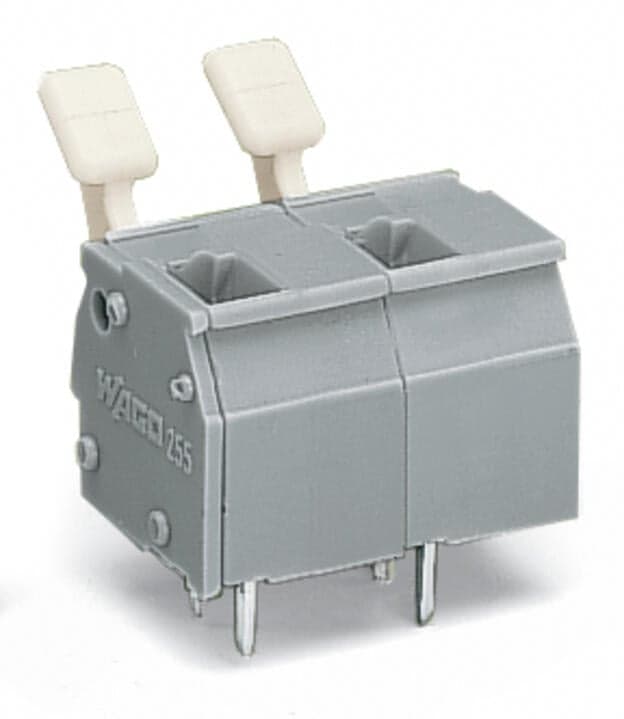

- 1Efficient Electrical Connections: The WAGO 255-609/333-000 PCB terminal block ensures reliable and efficient electrical connections with its finger-operated levers.
- 2Industrial Compatibility: Designed to meet specific technical specifications, this component is compatible with various industrial and commercial applications.
- 3Finger-Operated Levers: Easy to use, the finger-operated levers provide a convenient and secure way to connect and disconnect wires.
- 49-Pole Configuration: The 9-pole configuration offers ample space for multiple connections, enhancing the versatility of the terminal block.
- 5CAGE CLAMP Technology: Equipped with CAGE CLAMP technology, this terminal block ensures secure and reliable clamping of wires.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Variants: | Other pole numbers | Clamping units | 9 |
Total number of potentials | 9 | Number of connection types | 1 |
Number of levels | 1 | Pin spacing | 10/10.16?mm?/ 0.394/0.4?inches |
Width | 92.9?mm?/ 3.657?inches | Height | 22.2?mm?/ 0.874?inches |
Height from the surface | 18.2?mm?/ 0.559?inches | Depth | 23?mm?/ 0.906?inches |
Solder pin length | 4mm | Solder pin dimensions | 0.7 x 0.7?mm |
Drilled hole diameter with tolerance | 1.1(+0.1)mm | PCB contact | THT |
Solder pin arrangement | over the entire terminal strip (in-line) | Number of solder pins per potential | 2 |
Note (material data) | Information on material specifications can be found here | Color | gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Clamping spring material | Chrome-nickel spring steel (CrNi) |
Contact material | Electrolytic copper (ECu) | Contact plating | Tin |
Fire load | 0.429MJ | Weight | 15.6g |
Limit temperature range | -60 … +105?°C | eCl@ss 10.0 | 27-44-04-01 |
eCl@ss 9.0 | 27-44-04-01 | ETIM 9.0 | EC002643 |
ETIM 8.0 | EC002643 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 40?(10)?pcs | Packaging type | box |
Country of origin | CH | GTIN | 4055143494595 |
Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
Ratings per | IEC/EN 60664-1 | Rated voltage (III / 3) | 630V |
Rated impulse voltage (III / 3) | 8kV | Rated voltage (III/2) | 1000V |
Rated surge voltage (III/2) | 8kV | Nominal voltage (II/2) | 1000V |
Rated surge voltage (II/2) | 8kV | Rated current | 24A |
Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 | Approvals per | CSA |
Rated voltage UL (Use Group B) | 300V | Rated current UL (Use Group B) | 15A |
Rated voltage UL (Use Group D) | 300V | Rated current UL (Use Group D) | 10A |
Rated voltage CSA (Use Group B) | 300V | Rated current CSA (Use Group B) | 15A |
Rated voltage CSA (Use Group D) | 300V | Rated current CSA (Use Group D) | 10A |
Connection technology | CAGE CLAMP? | Actuation type | Finger-operated lever |
Solid conductor | 0.08 … 2.5?mm2?/ 25 … 12?AWG | Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG |
Fine-stranded conductor; with insulated ferrule | 0.25 … 1.5?mm2 | Fine-stranded conductor; with uninsulated ferrule | 0.25 … 1.5?mm2 |
Note (conductor cross-section) | 12 AWG: THHN, THWN | Strip length | 5 … 6?mm?/ 0.2 … 0.24?inches |
Conductor connection direction to PCB | 90° | Number of poles | 9 |
Specifications may be subject to change without notice
