Product Model
255-801
Selling Points

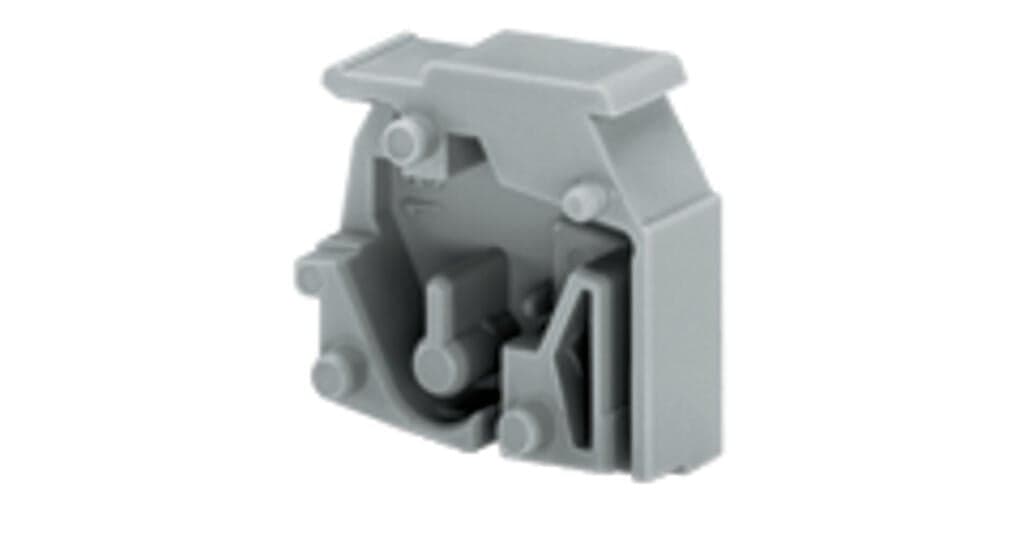

- 1The WAGO 255-801 spacer increases pin spacing to 5/5.08 mm for improved electrical connections.
- 2Made from durable, high-quality material, ensuring long-lasting performance and reliability.
- 3Easy to mount with a snap-on design, reducing installation time and effort.
- 4Meets ROHS compliance standards, making it suitable for various industrial and commercial applications.
- 5Available in gray color for easy identification and integration into your electrical systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Pin spacing | 5/5.08?mm?/ 0.197/0.2?inches | Width | 5.08?mm?/ 0.2?inches |
Height | 13.2?mm?/ 0.52?inches | Depth | 14?mm?/ 0.551?inches |
Use | extends pin spacing | Mounting type | snap-on type |
Note (material data) | Information on material specifications can be found here | Color | gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.017MJ |
Weight | 0.6g | Product Group | 4 (Printed Circuit Connectors) |
eCl@ss 10.0 | 27-44-04-92 | eCl@ss 9.0 | 27-44-04-92 |
ETIM 9.0 | EC002848 | ETIM 8.0 | EC002848 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 500?(100)?pcs |
Packaging type | box | Country of origin | CH |
GTIN | 4044918059398 | Customs tariff number | 3926909985 |
RoHS Compliance Status | Compliant,No Exemption | Number of poles | 1 |
Specifications may be subject to change without notice
