Product Model

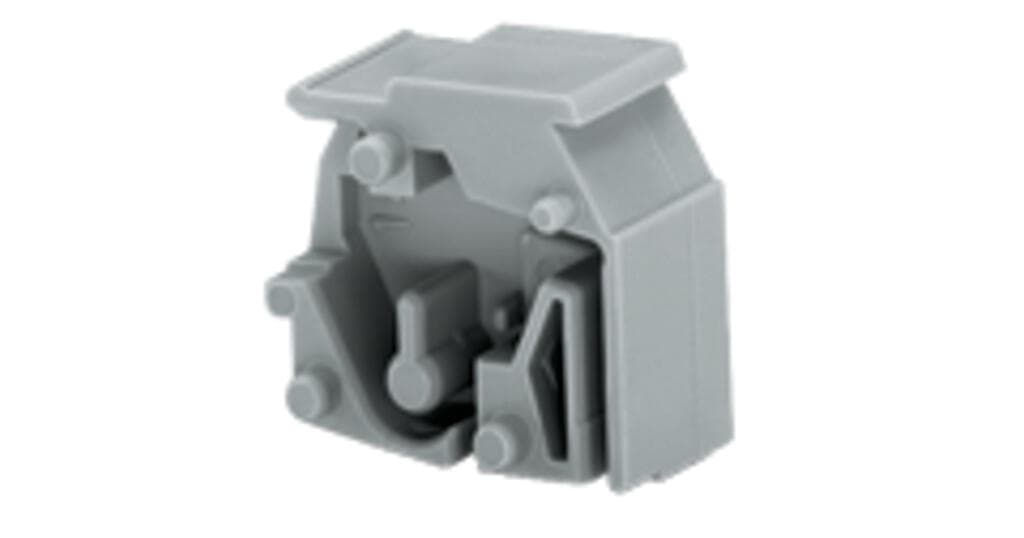

255-811
Selling Points
- 1The WAGO 255-811 terminal block uses the patented CAGE CLAMP technology to automatically connect solid or stranded wires without special preparation.
- 2No crimps, ferrules, or tinning required; simply strip the wire and connect it for a secure fit.
- 3The clamping force adjusts automatically to the conductor cross-section, ensuring a tight connection regardless of wire size.
- 4Made from high-quality stainless steel, the CAGE CLAMP mechanism provides long-lasting performance and reliability.
- 5Suitable for various wire sizes from 0.08 mm² to 35 mm², making it versatile for different applications and projects.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Pin spacing | 7.5/7.62?mm?/ 0.295/0.3?inches | Width | 7.62?mm?/ 0.3?inches |
Height | 13.2?mm?/ 0.52?inches | Depth | 14?mm?/ 0.551?inches |
Use | extends pin spacing | Mounting type | snap-on type |
Note (material data) | Information on material specifications can be found here | Color | gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.024MJ |
Weight | 0.8g | Product Group | 4 (Printed Circuit Connectors) |
eCl@ss 10.0 | 27-44-04-92 | eCl@ss 9.0 | 27-44-04-92 |
ETIM 9.0 | EC002848 | ETIM 8.0 | EC002848 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 400?(100)?pcs |
Packaging type | box | Country of origin | CH |
GTIN | 4044918134071 | Customs tariff number | 3926909985 |
RoHS Compliance Status | Compliant,No Exemption | Number of poles | 1 |
Specifications may be subject to change without notice
