Product Model

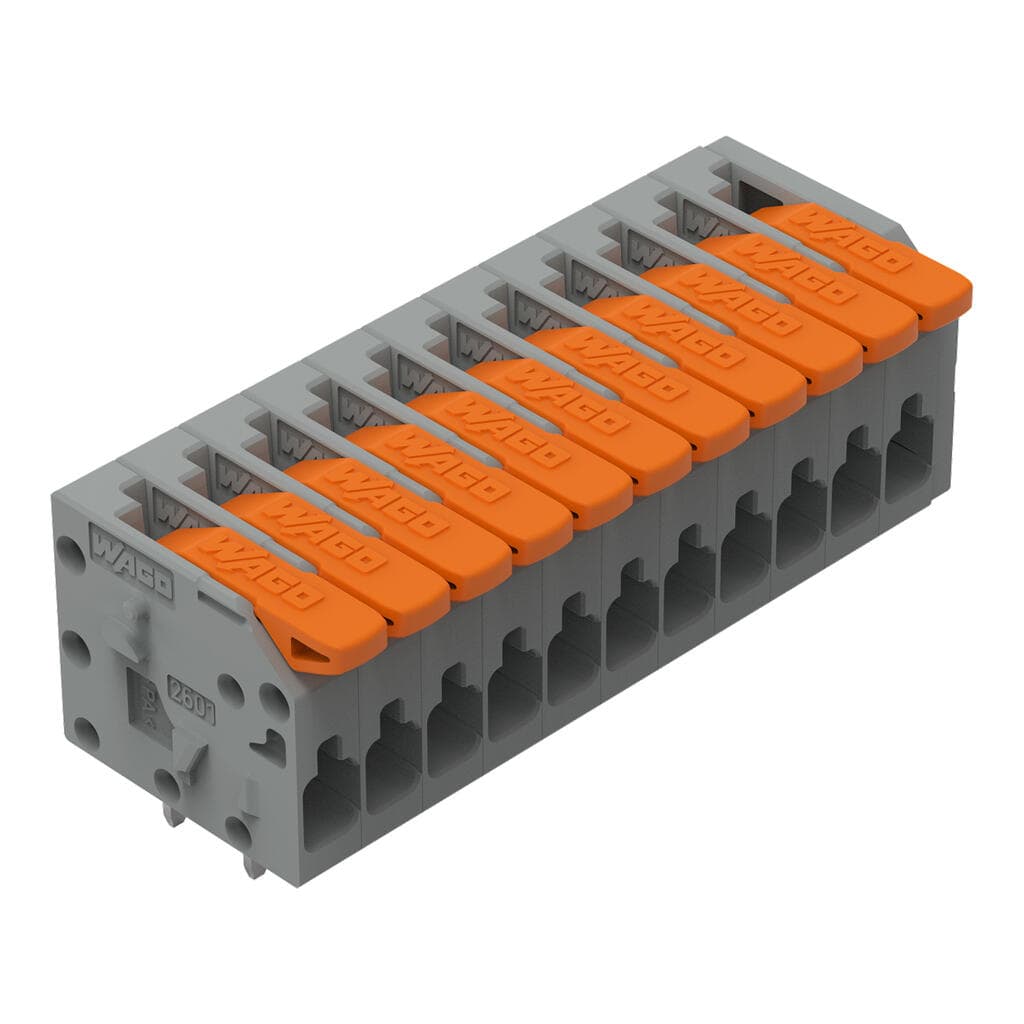

2601-1111
Selling Points
- 1Compact Design: Super-compact PCB terminal block with lever technology.
- 2Tool-Free Wiring: Easy, tool-free wiring for small conductor cross-sections.
- 3High Current Rating: Rated for 17.5A and up to 320V.
- 4Versatile Connectivity: Push-in CAGE CLAMP for both solid and ferruled conductors.
- 5RoHS Compliant: Compliant with RoHS and phthalates regulations, ensuring environmental safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Variants: | Other pole numbers | Clamping units | 11 |
Total number of potentials | 11 | Number of connection types | 1 |
Number of levels | 1 | Pin spacing | 3.5?mm?/ 0.138?inches |
Width | 40?mm?/ 1.575?inches | Height | 16.35?mm?/ 0.644?inches |
Height from the surface | 12.75?mm?/ 0.502?inches | Depth | 16.58?mm?/ 0.653?inches |
Solder pin length | 3.6mm | Solder pin dimensions | 1 x 0.5?mm |
Drilled hole diameter with tolerance | 1.2(+0.1)mm | PCB contact | THT |
Solder pin arrangement | Over the entire terminal strip (in-line) | Number of solder pins per potential | 2 |
Note (material data) | Information on material specifications can be found here | Color | gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Clamping spring material | Chrome-nickel spring steel (CrNi) |
Contact material | Electrolytic copper (ECu) | Contact plating | Tin |
Fire load | 0.161MJ | Actuator color | orange |
Weight | 8.5g | Limit temperature range | -60 … +105?°C |
Processing temperature | -35 … +60?°C | Continuous operating temperature | -60 … +105?°C |
ETIM 9.0 | EC002643 | ETIM 8.0 | EC002643 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 50?pcs |
Packaging type | Box | Country of origin | PL |
GTIN | 4066966242201 | Customs tariff number | 85369010000 |
RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60664-1 |
Rated voltage (III / 3) | 160V | Rated impulse voltage (III / 3) | 2.5kV |
Rated voltage (III/2) | 160V | Rated surge voltage (III/2) | 2.5kV |
Nominal voltage (II/2) | 320V | Rated surge voltage (II/2) | 2.5kV |
Rated current | 17.5A | Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 |
Approvals per | CSA | Rated voltage UL (Use Group B) | 300V |
Rated current UL (Use Group B) | 10A | Rated voltage UL (Use Group D) | 300V |
Rated current UL (Use Group D) | 10A | Rated voltage CSA (Use Group B) | 300V |
Rated current CSA (Use Group B) | 10A | Rated voltage CSA (Use Group D) | 300V |
Rated current CSA (Use Group D) | 10A | Connection technology | Push-in CAGE CLAMP? |
Actuation type | Lever | Solid conductor | 0.14 … 2.5 mm2 / 26 … 14 AWG |
Solid conductor; push-in termination | 0.14 … 2.5 mm2 / 26 … 14 AWG | Fine-stranded conductor | 0.14 … 2.5 mm2 / 26 … 14 AWG |
Fine-stranded conductor; with insulated ferrule | 0.25 … 0.75?mm2 | Fine-stranded conductor; with uninsulated ferrule | 0.25 … 1.5?mm2 |
Note (conductor cross-section) | For conductors (26 AWG) that are not rigid enough, the clamping unit must be opened using a lever. | Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches |
Conductor connection direction to PCB | 0° | Number of poles | 11 |
Specifications may be subject to change without notice
