Product Model

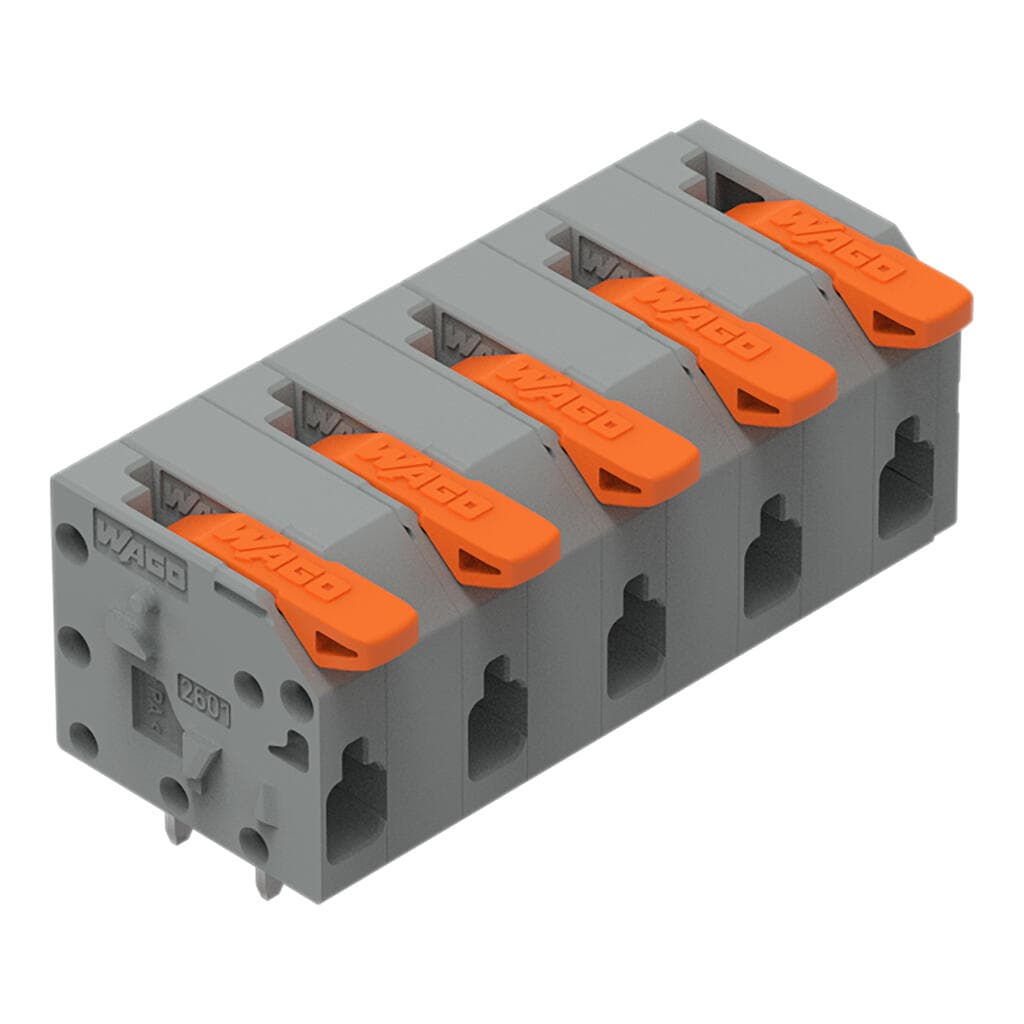

2601-1305
Selling Points
- 1Push-in CAGE CLAMP Connection: Simplify your wiring with the push-in CAGE CLAMP technology, ensuring secure and efficient connections.
- 2Tool-Free Operation: Enjoy intuitive and tool-free operation, making it easy to connect and disconnect conductors without any hassle.
- 3Multi-Core Cable Compatibility: Hold multiple clamping units open simultaneously, simplifying the connection of multi-core cables.
- 4High Voltage Rating: Rated for nominal voltage up to 500V and rated surge voltage up to 6kV, suitable for various electrical applications.
- 5Compliance and Certifications: Compliant with RoHS and certified by DEKRA, CSA, and UL, ensuring high-quality and safety standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Variants: | Other pole numbers | Clamping units | 5 |
Total number of potentials | 5 | Number of connection types | 1 |
Number of levels | 1 | Pin spacing | 7.5?mm?/ 0.295?inches |
Width | 37.3?mm?/ 1.467?inches | Height | 16.35?mm?/ 0.644?inches |
Height from the surface | 12.75?mm | Depth | 16.58?mm?/ 0.653?inches |
Solder pin length | 3.6mm | Solder pin dimensions | 1 x 0.5?mm |
Drilled hole diameter with tolerance | 1.2(+0.1)mm | PCB contact | THT |
Solder pin arrangement | within the terminal block (in-line) | Number of solder pins per potential | 2 |
Note (material data) | Information on material specifications can be found here | Color | gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Clamping spring material | Chrome-nickel spring steel (CrNi) |
Contact material | Electrolytic copper (ECu) | Contact plating | Tin |
Fire load | 0.125MJ | Weight | 5.5g |
Limit temperature range | -60 … +105?°C | Processing temperature | -35 … +60?°C |
Continuous operating temperature | -60 … +105?°C | ETIM 9.0 | EC002643 |
ETIM 8.0 | EC002643 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 50?pcs | Packaging type | Box |
Country of origin | PL | GTIN | 4066966241969 |
Customs tariff number | 85369010000 | RoHS Compliance Status | Compliant,No Exemption |
Ratings per | IEC/EN 60664-1 | Rated voltage (III / 3) | 500V |
Rated impulse voltage (III / 3) | 6kV | Rated voltage (III/2) | 1000V |
Rated surge voltage (III/2) | 6kV | Nominal voltage (II/2) | 1000V |
Rated surge voltage (II/2) | 6kV | Rated current | 17.5A |
Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 | Approvals per | CSA |
Rated voltage UL (Use Group B) | 300V | Rated current UL (Use Group B) | 15A |
Rated voltage UL (Use Group C) | 150V | Rated current UL (Use Group C) | 15A |
Rated voltage UL (Use Group D) | 300V | Rated current UL (Use Group D) | 10A |
Rated voltage CSA (Use Group B) | 300V | Rated current CSA (Use Group B) | 15A |
Rated voltage CSA (Use Group C) | 150V | Rated current CSA (Use Group C) | 15A |
Rated voltage CSA (Use Group D) | 300V | Rated current CSA (Use Group D) | 10A |
Connection technology | Push-in CAGE CLAMP? | Actuation type | Lever |
Solid conductor | 0.14 … 1.5?mm2?/ 26 … 14?AWG | Solid conductor; push-in termination | 0.5 … 1.5?mm2?/ 26 … 14?AWG |
Fine-stranded conductor | 0.2 … 1.5?mm2?/ 26 … 14?AWG | Fine-stranded conductor; with insulated ferrule | 0.25 … 0.75?mm2 |
Fine-stranded conductor; with uninsulated ferrule | 0.25 … 1.5?mm2 | Note (conductor cross-section) | For conductors (26 AWG) that are not rigid enough, the clamping unit must be opened using a lever. |
Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches | Conductor connection direction to PCB | 0° |
Number of poles | 5 |
Specifications may be subject to change without notice
