Product Model

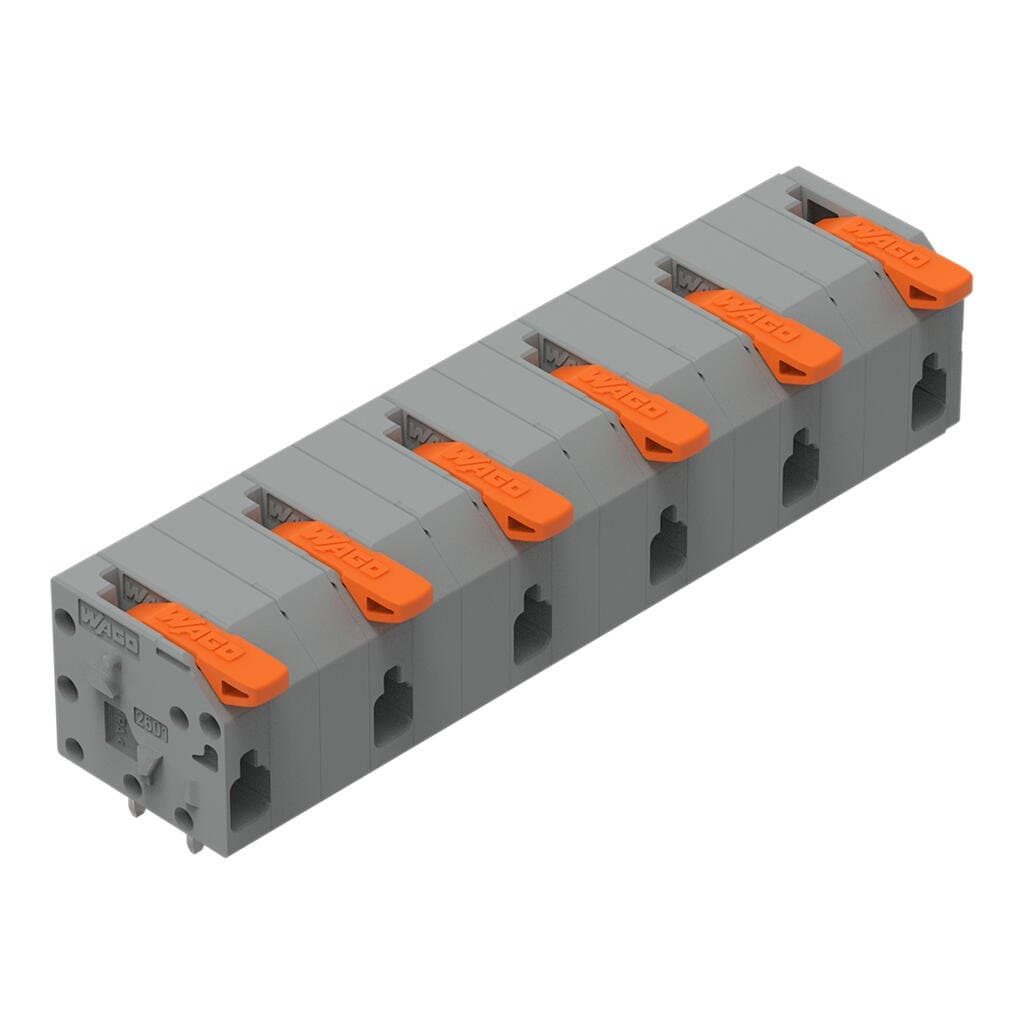

2601-1506
Selling Points
- 1Tool-free wiring with lever technology for easy connection.
- 2Compatible with cross-sections from 26 to 14 AWG.
- 3Pin spacing of 11.5 mm, minimizing board space.
- 4Secure connection with WAGO's patented Push-In Cage Clamp technology.
- 5Suitable for both vertical and horizontal PCB connections.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Variants: | Other pole numbers | Clamping units | 6 |
Total number of potentials | 6 | Number of connection types | 1 |
Number of levels | 1 | Pin spacing | 11.5?mm?/ 0.453?inches |
Width | 64.8?mm?/ 2.549?inches | Height | 16.35?mm?/ 0.644?inches |
Height from the surface | 12.75?mm | Depth | 16.58?mm?/ 0.653?inches |
Solder pin length | 3.6mm | Solder pin dimensions | 1 x 0.5?mm |
Drilled hole diameter with tolerance | 1.2(+0.1)mm | PCB contact | THT |
Solder pin arrangement | within the terminal block (in-line) | Number of solder pins per potential | 2 |
Note (material data) | Information on material specifications can be found here | Color | gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Clamping spring material | Chrome-nickel spring steel (CrNi) |
Contact material | Electrolytic copper (ECu) | Contact plating | Tin |
Fire load | 0.211MJ | Weight | 8.6g |
Limit temperature range | -60 … +105?°C | Processing temperature | -35 … +60?°C |
Continuous operating temperature | -60 … +105?°C | ETIM 9.0 | EC002643 |
ETIM 8.0 | EC002643 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 30?pcs | Packaging type | Box |
Country of origin | PL | GTIN | 4066966242638 |
Customs tariff number | 85369010000 | RoHS Compliance Status | Compliant,No Exemption |
Ratings per | IEC/EN 60664-1 | Rated voltage (III / 3) | 800V |
Rated impulse voltage (III / 3) | 8kV | Rated voltage (III/2) | 1000V |
Rated surge voltage (III/2) | 8kV | Nominal voltage (II/2) | 1000V |
Rated surge voltage (II/2) | 8kV | Rated current | 17.5A |
Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 | Approvals per | CSA |
Rated voltage UL (Use Group B) | 300V | Rated current UL (Use Group B) | 15A |
Rated voltage UL (Use Group C) | 300V | Rated current UL (Use Group C) | 15A |
Rated voltage UL (Use Group D) | 600V | Rated current UL (Use Group D) | 15A |
Rated voltage CSA (Use Group B) | 300V | Rated current CSA (Use Group B) | 15A |
Rated voltage CSA (Use Group C) | 300V | Rated current CSA (Use Group C) | 15A |
Rated voltage CSA (Use Group D) | 600V | Rated current CSA (Use Group D) | 15A |
Connection technology | Push-in CAGE CLAMP? | Actuation type | Lever |
Solid conductor | 0.14 … 1.5?mm2?/ 26 … 14?AWG | Solid conductor; push-in termination | 0.5 … 1.5?mm2?/ 26 … 14?AWG |
Fine-stranded conductor | 0.2 … 1.5?mm2?/ 26 … 14?AWG | Fine-stranded conductor; with insulated ferrule | 0.25 … 0.75?mm2 |
Fine-stranded conductor; with uninsulated ferrule | 0.25 … 1.5?mm2 | Note (conductor cross-section) | For conductors (26 AWG) that are not rigid enough, the clamping unit must be opened using a lever. |
Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches | Number of poles | 6 |
Specifications may be subject to change without notice
