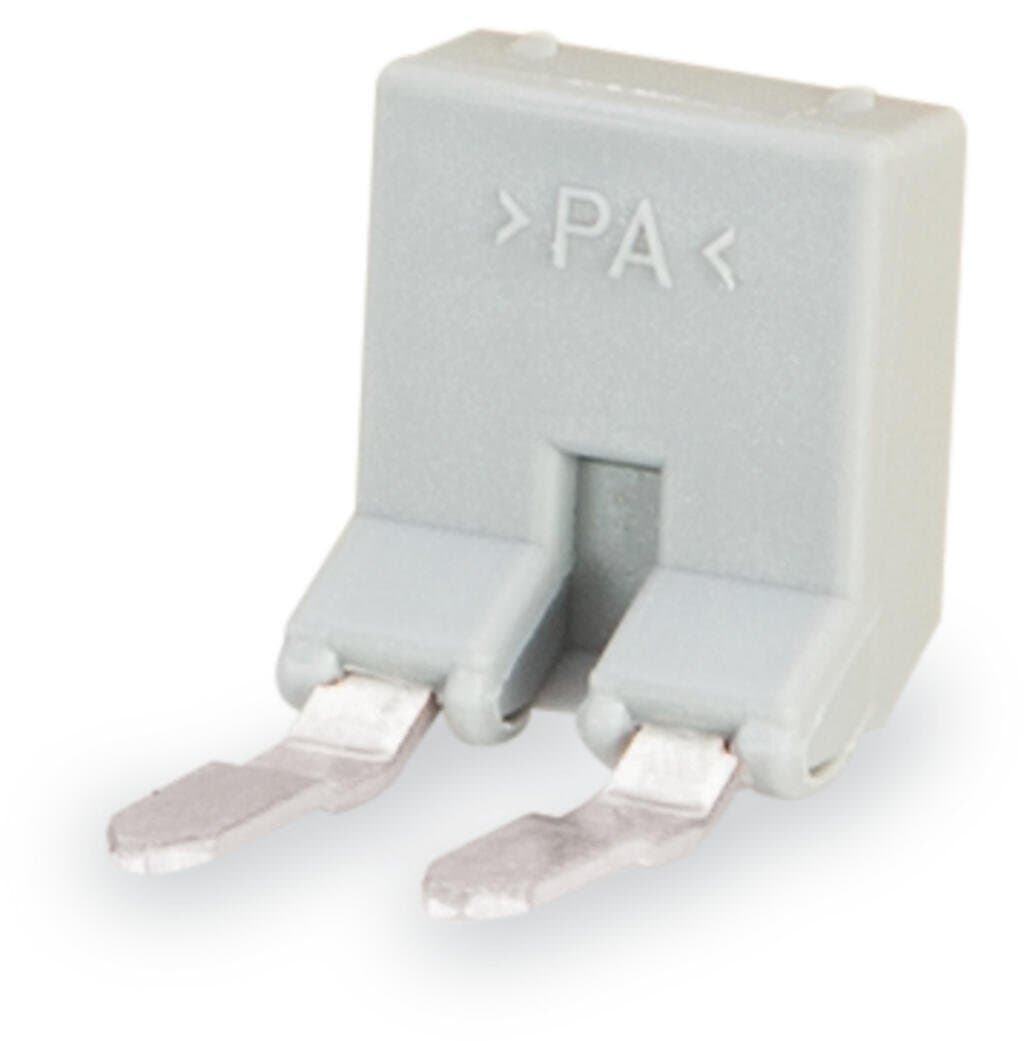

Product Model
260-402
Selling Points
- 10.39 in H x 0.31 in W x 0.15 in D dimensions.
- 2Rated for 10A to handle demanding industrial applications.
- 3Insulated with a gray color for safety and visibility.
- 4Designed for use with standard chassis-mount terminal blocks.
- 5Meets RoHS standards, ensuring environmental compliance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 8?mm?/ 0.315?inches | Height | 10?mm?/ 0.394?inches |
Depth | 4?mm?/ 0.157?inches | Jumper assignment | 1-2 |
Note (material data) | Information on material specifications can be found here | Color | gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.006MJ |
Weight | 0.4g | Processing temperature | -35 … +85?°C |
Continuous operating temperature | -60 … +105?°C | Product Group | 9 (Std Chassis Mt Blocks) |
eCl@ss 10.0 | 27-14-11-40 | eCl@ss 9.0 | 27-14-11-40 |
ETIM 9.0 | EC000489 | ETIM 8.0 | EC000489 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 500?(25)?pcs |
Packaging type | box | Country of origin | PL |
GTIN | 4045454030858 | Customs tariff number | 8536698000 |
RoHS Compliance Status | Compliant,No Exemption | Rated current | 10A |
Specifications may be subject to change without notice
