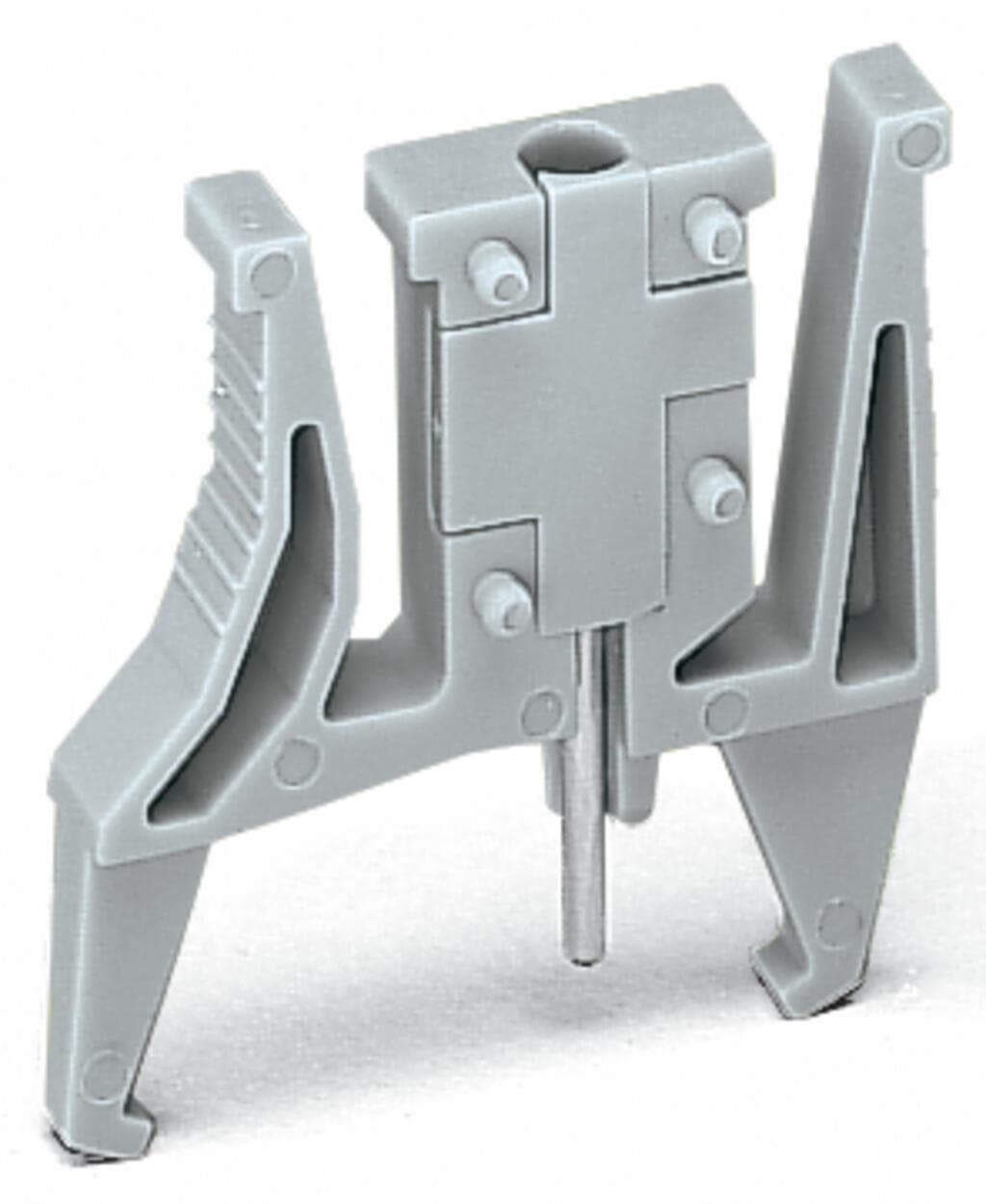

Product Model
260-404
Selling Points
- 1Modular Design: Compatible with 2-conductor terminal blocks for versatile use.
- 2Locking Latches: Ensures secure connection during testing.
- 3Gray Color: Easy to identify in any environment.
- 4Rated Current: 0.5A for reliable testing performance.
- 5Rohs Compliant: Meets international safety standards for environmental protection.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 5?mm?/ 0.197?inches | Module width | 5?mm?/ 0.197?inches |
Note (material data) | Information on material specifications can be found here | Color | gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.043MJ |
Weight | 2.1g | Processing temperature | -35 … +85?°C |
Continuous operating temperature | -60 … +105?°C | Product Group | 9 (Std Chassis Mt Blocks) |
eCl@ss 10.0 | 27-14-11-48 | eCl@ss 9.0 | 27-14-11-48 |
ETIM 9.0 | EC002555 | ETIM 8.0 | EC002555 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 100?(25)?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4045454620660 | Customs tariff number | 8536904000 |
CAS-No. | 7439-92-1 | REACH Candidate List Substance | Lead |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 6(c) |
SCIP notification number (Austria) | c9606a5e-9a53-42ee-9be0-5bc8430cfefa | SCIP notification number (Belgium) | b4037d88-b1eb-478c-9ecd-6f4d877cd97b |
SCIP notification number (Bulgaria) | 4e356408-b0c2-47e4-8466-d62449e7bbe7 | SCIP notification number (Czech Republic) | a899071b-9856-4b60-9877-97c07dbf4dd6 |
SCIP notification number (Denmark) | d1f89693-2760-45f0-b7c1-95e4a9c53913 | SCIP notification number (Finland) | 8a1feb0f-2a3c-495f-8d8b-b39648068954 |
SCIP notification number (France) | 66b08e57-fcb6-49d4-ad70-16663e07ce7a | SCIP notification number (Germany) | 7ba26186-5e01-4428-a6d4-f2548e51131e |
SCIP notification number (Hungary) | 00df818f-bbad-496b-8872-da2767bbb7e5 | SCIP notification number (Italy) | f87de3be-85ed-4218-9903-da9dde84c47b |
SCIP notification number (Netherlands) | 29f7a8e2-fc21-482a-bf56-c83b214079f3 | SCIP notification number (Poland) | a3f7c040-00d2-4a63-aec3-6299af05bada |
SCIP notification number (Romania) | 9ce8fbd6-c3ef-4f72-a253-983044df3c1c | SCIP notification number (Sweden) | 2faa4722-7d06-4fba-b880-bea6a759e280 |
Rated voltage (III / 3) | 250V | Ratings (note) | Maximum test voltage (touch contact): 48 V (test pins are not touch-proof) |
Ratings (note) 2 | Maximum test current (touch contact): 0.5 AMaximum test current: 6 A (if the test pins are securely connected in the clamping units) | Test voltage | 48V |
Test current | 0.5A |
Specifications may be subject to change without notice
