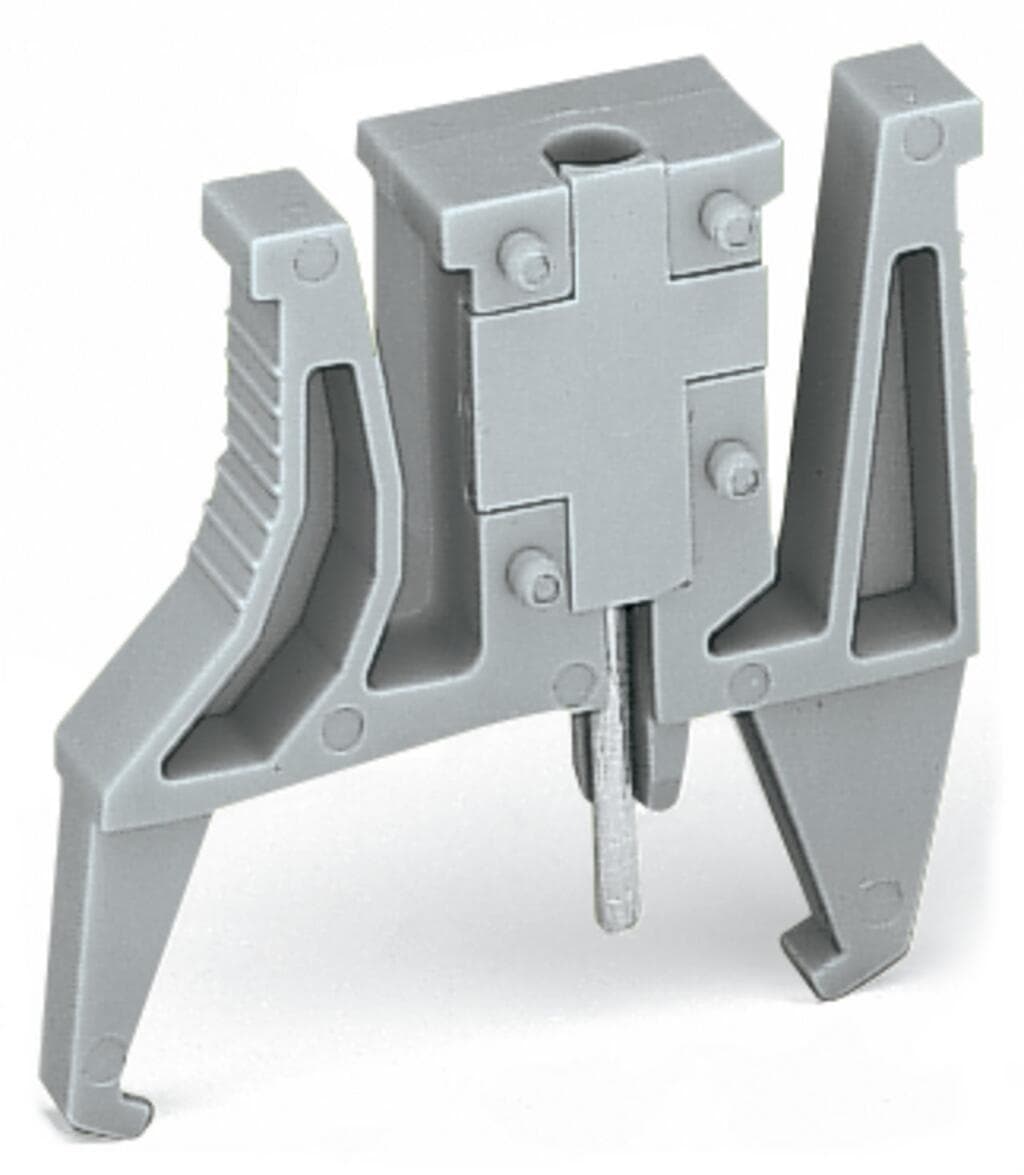

Product Model
260-405
Selling Points
- 1Modular Design: Compatible with 4-conductor terminal blocks.
- 2Locking Latches: Ensures secure connection during testing.
- 3Gray Color: Easy to identify in any setup.
- 4Rated Current: 0.5A, suitable for various testing applications.
- 5RoHS Compliant: Meets environmental standards for safe use.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 8?mm?/ 0.315?inches | Module width | 8?mm?/ 0.315?inches |
Note (material data) | Information on material specifications can be found here | Color | gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Weight | 2.2g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
Product Group | 9 (Std Chassis Mt Blocks) | eCl@ss 10.0 | 27-14-11-48 |
eCl@ss 9.0 | 27-14-11-48 | ETIM 9.0 | EC002555 |
ETIM 8.0 | EC002555 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 100?(25)?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4050821868941 |
Customs tariff number | 8536904000 | CAS-No. | 7439-92-1 |
REACH Candidate List Substance | Lead | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 6(c) | SCIP notification number (Austria) | e07b893f-be2f-4454-8072-4b10b0fa609e |
SCIP notification number (Belgium) | e1d61b71-7865-4db9-9cec-c528084fa2b6 | SCIP notification number (Bulgaria) | 0149ed8b-8344-400f-9c67-64e741b5e615 |
SCIP notification number (Czech Republic) | a6c88aa7-21a5-47fa-a2ed-41c4be095ad0 | SCIP notification number (Denmark) | a5d5f2da-0b25-4781-b194-056cd57c7180 |
SCIP notification number (Finland) | 3b8d99ca-c3db-431c-96f8-5c97af64c379 | SCIP notification number (France) | 7da2dbe5-d58b-4024-b275-465a6983e0ec |
SCIP notification number (Germany) | c6ec24e1-4823-43cd-91e8-489e983a621e | SCIP notification number (Hungary) | e1f86406-e382-4f38-a758-5b6cc465be31 |
SCIP notification number (Italy) | cf30e572-c93a-4ce8-a89d-7ad0c2a595b5 | SCIP notification number (Netherlands) | 4178d072-e438-4587-99a4-e09362a22392 |
SCIP notification number (Poland) | 10355f43-60e4-4085-a4e3-9e9f1c08f554 | SCIP notification number (Romania) | 609718c7-fee8-461d-93b2-925c2da4dad1 |
SCIP notification number (Sweden) | 8ffaa56f-9fc8-4af5-b210-9735018269fa | Rated voltage (III / 3) | 500V |
Ratings (note) | Maximum test voltage (touch contact): 48 V (test pins are not touch-proof) | Ratings (note) 2 | Maximum test current (touch contact): 0.5 AMaximum test current: 6 A (if the test pins are securely connected in the clamping units) |
Test voltage | 48V | Test current | 0.5A |
Specifications may be subject to change without notice
