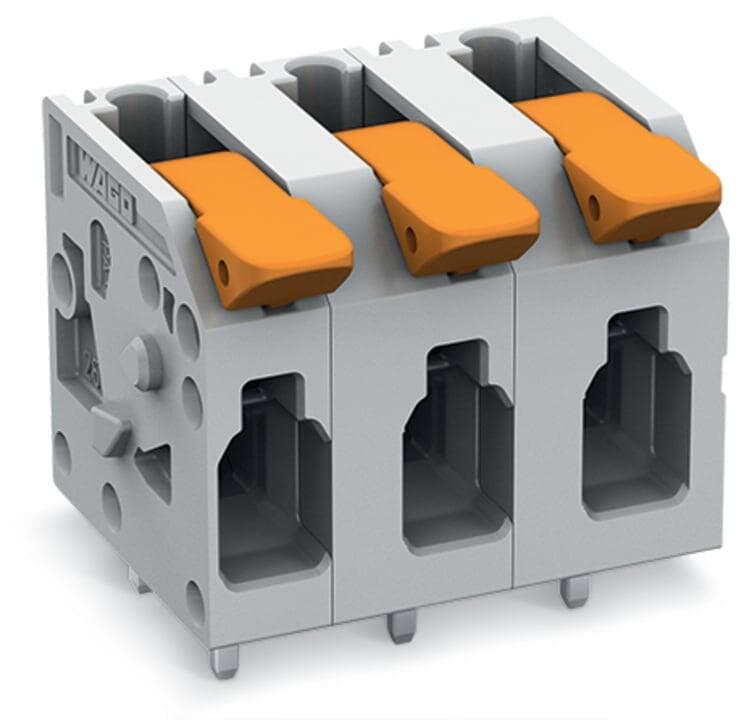

Product Model
2604-1103/000-015
Selling Points
- 1Push-in cage clamp technology for quick and secure connections.
- 2Lever-equipped design for 100% tool-free operation.
- 3Rated for 32A, suitable for demanding applications.
- 43-pole terminal block with 5mm pin spacing, perfect for PCB mounting.
- 5Compatible with solid, ferruled, and rigid-stranded conductors.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Variants: | Other pole numbers | Clamping units | 3 |
Total number of potentials | 3 | Number of connection types | 1 |
Number of levels | 1 | Pin spacing | 7.5 mm / 0.295 inches |
Width | 22.4 mm / 0.882 inches | Height | 20.7 mm / 0.815 inches |
Height from the surface | 16.7 mm / 0.657 inches | Depth | 19.2 mm / 0.756 inches |
Solder pin length | 4mm | Solder pin dimensions | 0.8 x 1 mm |
Drilled hole diameter with tolerance | 1.3(+0.1)mm | PCB contact | THT |
Solder pin arrangement | over the entire terminal strip (in-line) | Number of solder pins per potential | 2 |
Note (material data) | Information on material specifications can be found here | Color | gentian blue |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Clamping spring material | Chrome-nickel spring steel (CrNi) |
Contact material | Electrolytic copper (ECu) | Contact plating | Tin |
Fire load | 0.117MJ | Actuator color | orange |
Weight | 4.7g | Limit temperature range | -60 … +105 °C |
Processing temperature | -35 … +60 °C | Continuous operating temperature | -60 … +105 °C |
ETIM 9.0 | EC002643 | ETIM 8.0 | EC002643 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 120 pcs |
Packaging type | Box | Country of origin | CH |
GTIN | 4066966476996 | Customs tariff number | 85369010000 |
RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60664-1 |
Rated voltage (III / 3) | 630V | Rated impulse voltage (III / 3) | 6kV |
Rated voltage (III/2) | 1000V | Rated surge voltage (III/2) | 6kV |
Nominal voltage (II/2) | 1000V | Rated surge voltage (II/2) | 6kV |
Rated current | 32A | Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 |
Approvals per | CSA | Rated voltage UL (Use Group B) | 300V |
Rated current UL (Use Group B) | 20A | Rated voltage UL (Use Group C) | 300V |
Rated current UL (Use Group C) | 20A | Rated voltage UL (Use Group D) | 600V |
Rated current UL (Use Group D) | 5A | Rated voltage CSA (Use Group B) | 300V |
Rated current CSA (Use Group B) | 20A | Rated voltage CSA (Use Group C) | 300V |
Rated current CSA (Use Group C) | 20A | Rated voltage CSA (Use Group D) | 600V |
Rated current CSA (Use Group D) | 5A | Connection technology | Push-in CAGE CLAMP? |
Actuation type | Lever | Solid conductor | 0.2 … 4 mm2 / 24 … 12 AWG |
Fine-stranded conductor | 0.2 … 4 mm2 / 24 … 12 AWG | Fine-stranded conductor; with insulated ferrule | 0.25 … 2.5 mm2 |
Fine-stranded conductor; with uninsulated ferrule | 0.25 … 2.5 mm2 | Fine-stranded conductor; with twin ferrule | 0.25 … 1.5 mm2 |
Strip length | 9 … 11 mm / 0.35 … 0.43 inches | Conductor connection direction to PCB | 0° |
Number of poles | 3 | Test specification <br/>Railway applications – <br/>Rolling stock – <br/>Electronic equipment | DIN EN 50155 (VDE 0115-200):2022-06 |
Test procedure <br/>Railway applications – <br/>Rolling stock equipment – <br/>Shock and vibration tests | DIN EN 61373 (VDE 0115-0106):2011-04 | Spectrum/Installation location | Service life test, Category?1, Class?A/B |
Function test with noise-like vibration | Test passed according to Section 8 of the standard | Frequency | f1= 5 Hz to f2= 150 Hz |
Acceleration | 5g (highest test level used for all axes) | Test duration per axis | 5 h |
Test directions | X, Y and Z axes | Monitoring for contact faults/interruptions | Passed |
Voltage drop measurement before and after each axis | Passed | Simulated service life test through increased levels of noise-like vibration | Test passed according to Section 9 of the standard |
Extended test scope: Monitoring for contact faults/interruptions | Passed | Extended test scope: Voltage drop measurement before and after each axis | Passed |
Shock test | Test passed according to Section 10 of the standard | Shock form | Half sine |
Shock duration | 30 ms | Number of shocks per axis | 3 pos. und 3 neg. |
Vibration and shock stress for rolling stock equipment | Passed |
