Product Model

2604-1107

In Stock
Last updated: 2025/4/19

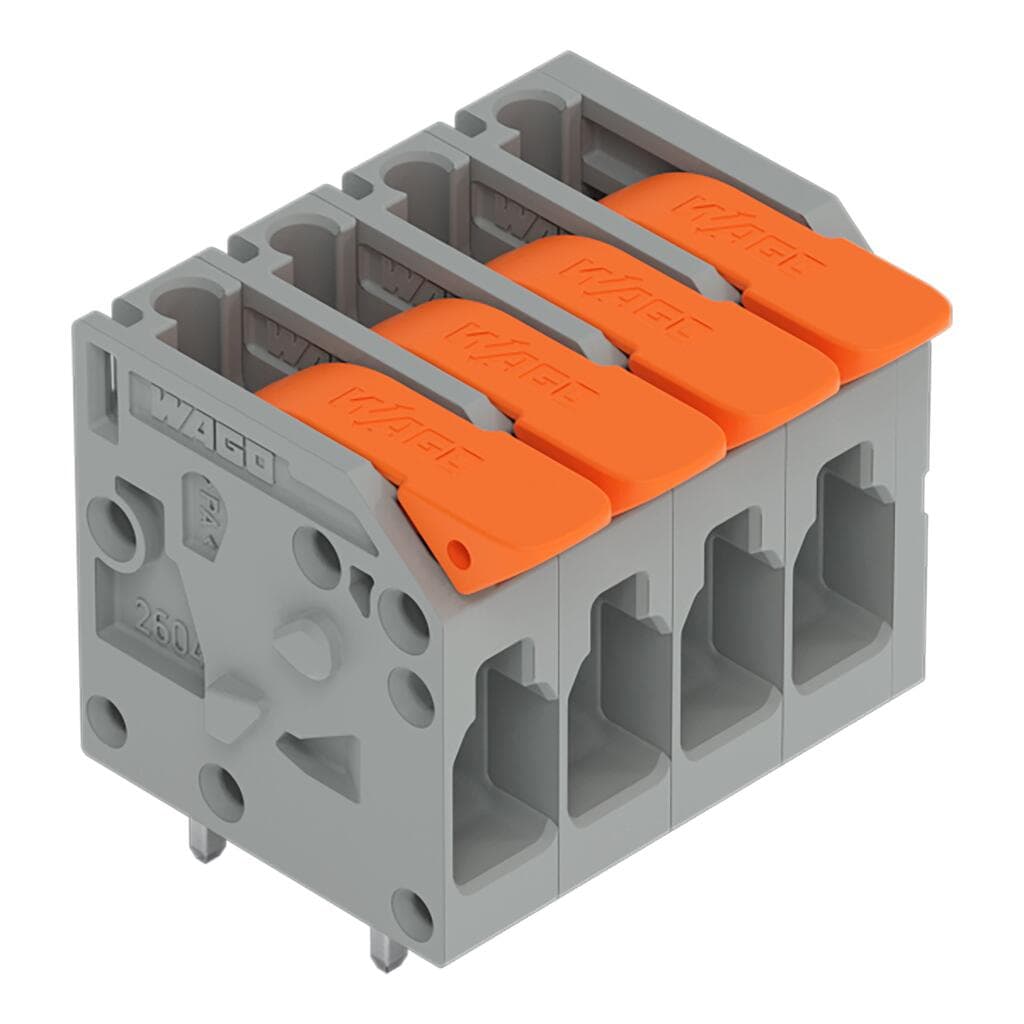

wago 2604-1107

Selling Points

  • 1High Current Capacity: Handles up to 32 amperes, suitable for demanding power electronics.
  • 2Easy Wiring: Tool-free, intuitive lever operation for fast and secure conductor connections.
  • 3Versatile Conductor Range: Accommodates solid, ferruled, and rigid-stranded conductors from 0.2 to 4mm².
  • 4Robust Construction: Made from Polyamide (PA66) with a flammability class of V0, ensuring safety and reliability.
  • 5Wide Operating Temperature Range: Operates from -60 to +105°C, suitable for various industrial environments.
Product Details
2604-1107
wago

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Variants:
Other pole numbers
Clamping units
7
Total number of potentials
7
Number of connection types
1
Number of levels
1
Pin spacing
5?mm?/ 0.197?inches
Width
37.4?mm?/ 1.472?inches
Height
20.7?mm?/ 0.815?inches
Height from the surface
16.7?mm?/ 0.657?inches
Depth
19.2?mm?/ 0.756?inches
Solder pin length
4mm
Solder pin dimensions
0.8 x 1?mm
Drilled hole diameter with tolerance
1.3(+0.1)mm
PCB contact
THT
Solder pin arrangement
over the entire terminal strip (in-line)
Number of solder pins per potential
2
Note (material data)
Information on material specifications can be found here
Color
gray
Material group
I
Insulation material (main housing)
Polyamide (PA66)
Flammability class per UL94
V0
Clamping spring material
Chrome-nickel spring steel (CrNi)
Contact material
Electrolytic copper (ECu)
Contact plating
Tin
Fire load
0.273MJ
Actuator color
orange
Weight
10.6g
Limit temperature range
-60 … +105?°C
Processing temperature
-35 … +60?°C
Continuous operating temperature
-60 … +105?°C
eCl@ss 10.0
27-44-04-01
eCl@ss 9.0
27-44-04-01
ETIM 9.0
EC002643
ETIM 8.0
EC002643
ECCN
NO US CLASSIFICATION
PU (SPU)
50 pcs
Packaging type
box
Country of origin
PL
GTIN
4066966390001
Customs tariff number
8536904000
RoHS Compliance Status
Compliant,No Exemption
Ratings per
IEC/EN 60664-1
Rated voltage (III / 3)
320V
Rated impulse voltage (III / 3)
4kV
Rated voltage (III/2)
400V
Rated surge voltage (III/2)
4kV
Nominal voltage (II/2)
630V
Rated surge voltage (II/2)
4kV
Rated current
32A
Legend (ratings)
(III / 2) ? Overvoltage category III / Pollution degree 2
Approvals per
CSA
Rated voltage UL (Use Group B)
300V
Rated current UL (Use Group B)
20A
Rated voltage UL (Use Group D)
300V
Rated current UL (Use Group D)
10A
Rated voltage CSA (Use Group B)
300V
Rated current CSA (Use Group B)
20A
Rated voltage CSA (Use Group D)
300V
Rated current CSA (Use Group D)
5A
Connection technology
Push-in CAGE CLAMP?
Actuation type
Lever
Solid conductor
0.2 … 4?mm2?/ 24 … 12?AWG
Fine-stranded conductor
0.2 … 4?mm2?/ 24 … 12?AWG
Fine-stranded conductor; with insulated ferrule
0.25 … 2.5?mm2
Fine-stranded conductor; with uninsulated ferrule
0.25 … 2.5?mm2
Fine-stranded conductor; with twin ferrule
0.25 … 1.5?mm2
Strip length
9 … 11?mm?/ 0.35 … 0.43?inches
Conductor connection direction to PCB
Number of poles
7
Test specification <br/>Railway applications – <br/>Rolling stock – <br/>Electronic equipment
DIN EN 50155 (VDE 0115-200):2022-06
Test procedure <br/>Railway applications – <br/>Rolling stock equipment – <br/>Shock and vibration tests
DIN EN 61373 (VDE 0115-0106):2011-04
Spectrum/Installation location
Service life test, Category?1, Class?A/B
Function test with noise-like vibration
Test passed according to Section 8 of the standard
Frequency
f1= 5 Hz to f2= 150 Hz
Acceleration
5g (highest test level used for all axes)
Test duration per axis
5 h
Test directions
X, Y and Z axes
Monitoring for contact faults/interruptions
Passed
Voltage drop measurement before and after each axis
Passed
Simulated service life test through increased levels of noise-like vibration
Test passed according to Section 9 of the standard
Extended test scope: Monitoring for contact faults/interruptions
Passed
Extended test scope: Voltage drop measurement before and after each axis
Passed
Shock test
Test passed according to Section 10 of the standard
Shock form
Half sine
Shock duration
30 ms
Number of shocks per axis
3 pos. und 3 neg.
Vibration and shock stress for rolling stock equipment
Passed

Specifications may be subject to change without notice
