Product Model

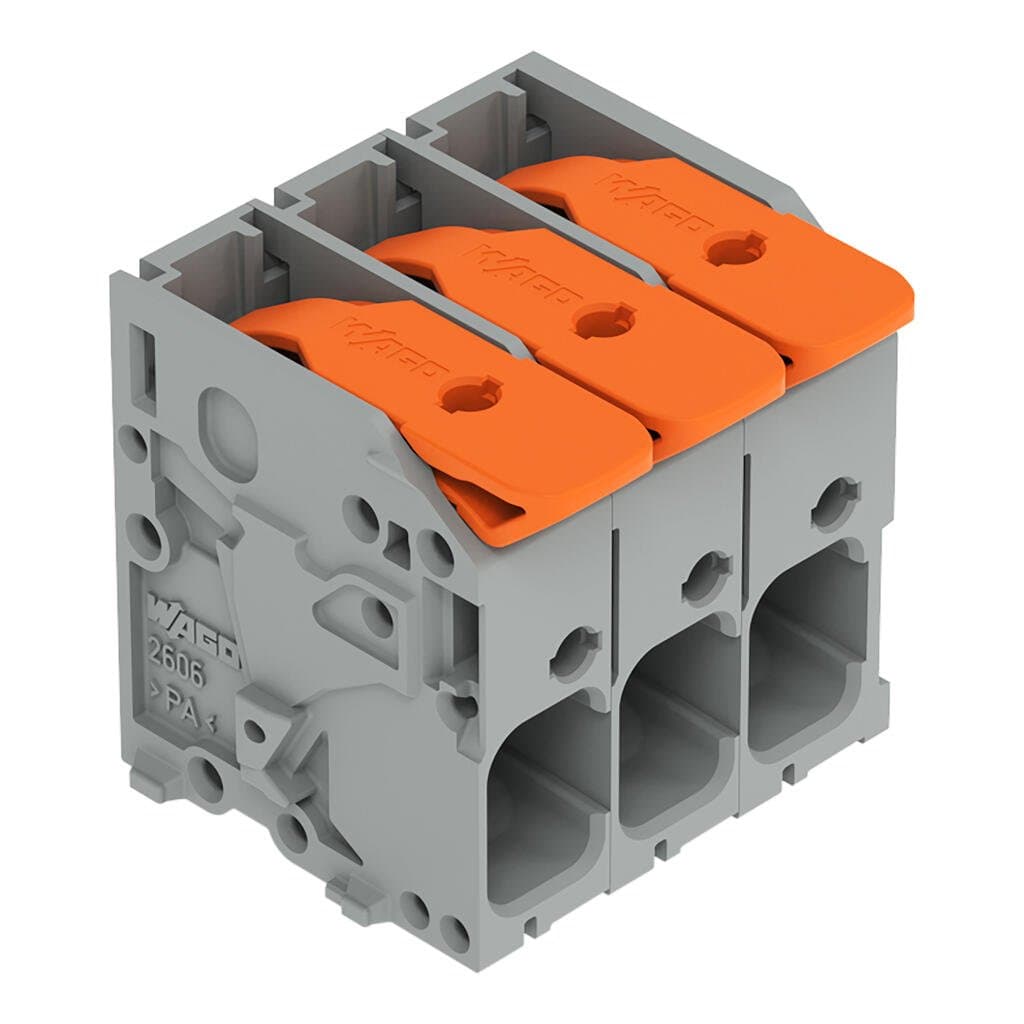

2606-1103
Selling Points
- 1Tool-free lever operation simplifies conductor connection.
- 2Push-in CAGE CLAMP technology ensures solid and ferruled conductor connections.
- 3Handles conductors up to 10 mm², suitable for demanding applications.
- 4Compatible with both horizontal and vertical PCB terminations.
- 5Integrated protective contact caps and optional interlock for maximum safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Variants: | Other pole numbers | Clamping units | 3 |
Total number of potentials | 3 | Number of connection types | 1 |
Number of levels | 1 | Pin spacing | 7.5?mm?/ 0.295?inches |
Width | 25.35?mm?/ 0.998?inches | Height | 28?mm?/ 1.102?inches |
Height from the surface | 24?mm?/ 0.945?inches | Depth | 24.3?mm?/ 0.957?inches |
Solder pin length | 4mm | Solder pin dimensions | 1.5 x 1.2?mm |
Drilled hole diameter with tolerance | 2(+0.1)mm | PCB contact | THT |
Solder pin arrangement | Over the entire terminal strip (in-line) | Number of solder pins per potential | 2 |
Note (material data) | Information on material specifications can be found here | Color | gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Clamping spring material | Chrome-nickel spring steel (CrNi) |
Contact material | Electrolytic copper (ECu) | Contact plating | Tin |
Fire load | 0.269MJ | Actuator color | orange |
Weight | 12.3g | Limit temperature range | -60 … +105?°C |
Processing temperature | -35 … +60?°C | Continuous operating temperature | -60 … +105?°C |
ETIM 9.0 | EC002643 | ETIM 8.0 | EC002643 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 80?pcs |
Packaging type | Box | Country of origin | PL |
GTIN | 4066966203738 | Customs tariff number | 85369010000 |
RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60664-1 |
Rated voltage (III / 3) | 500V | Rated impulse voltage (III / 3) | 6kV |
Rated voltage (III/2) | 630V | Rated surge voltage (III/2) | 6kV |
Nominal voltage (II/2) | 1000V | Rated surge voltage (II/2) | 6kV |
Rated current | 41A | Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 |
Approvals per | CSA | Rated voltage UL (Use Group B) | 300V |
Rated current UL (Use Group B) | 31A | Rated voltage UL (Use Group C) | 150V |
Rated current UL (Use Group C) | 31A | Rated voltage UL (Use Group D) | 600V |
Rated current UL (Use Group D) | 5A | Rated voltage CSA (Use Group B) | 300V |
Rated current CSA (Use Group B) | 31A | Rated voltage CSA (Use Group C) | 150V |
Rated current CSA (Use Group C) | 31A | Rated voltage CSA (Use Group D) | 600V |
Rated current CSA (Use Group D) | 31A | Connection technology | Push-in CAGE CLAMP? |
Actuation type | Lever | Solid conductor | 0.2 … 10?mm2?/ 24 … 8?AWG |
Fine-stranded conductor | 0.2 … 10?mm2?/ 24 … 8?AWG | Fine-stranded conductor; with insulated ferrule | 0.25 … 6?mm2 |
Fine-stranded conductor; with uninsulated ferrule | 0.25 … 6?mm2 | Fine-stranded conductor; with twin ferrule | 0.25 … 2.5?mm2 |
Strip length | 11 … 13?mm?/ 0.43 … 0.51?inches | Conductor connection direction to PCB | 0° |
Number of poles | 3 | Test specification <br/>Railway applications – <br/>Rolling stock – <br/>Electronic equipment | DIN EN 50155 (VDE 0115-200):2022-06 |
Test procedure <br/>Railway applications – <br/>Rolling stock equipment – <br/>Shock and vibration tests | DIN EN 61373 (VDE 0115-0106):2011-04 | Spectrum/Installation location | Service life test, Category?1, Class?A/B |
Function test with noise-like vibration | Test passed according to Section 8 of the standard | Frequency | f1= 5 Hz to f2= 150 Hz |
Acceleration | 5g (highest test level used for all axes) | Test duration per axis | 5 h |
Test directions | X, Y and Z axes | Monitoring for contact faults/interruptions | Passed |
Voltage drop measurement before and after each axis | Passed | Simulated service life test through increased levels of noise-like vibration | Test passed according to Section 9 of the standard |
Extended test scope: Monitoring for contact faults/interruptions | Passed | Extended test scope: Voltage drop measurement before and after each axis | Passed |
Shock test | Test passed according to Section 10 of the standard | Shock form | Half sine |
Shock duration | 30 ms | Number of shocks per axis | 3 pos. und 3 neg. |
Vibration and shock stress for rolling stock equipment | Passed |
Specifications may be subject to change without notice
