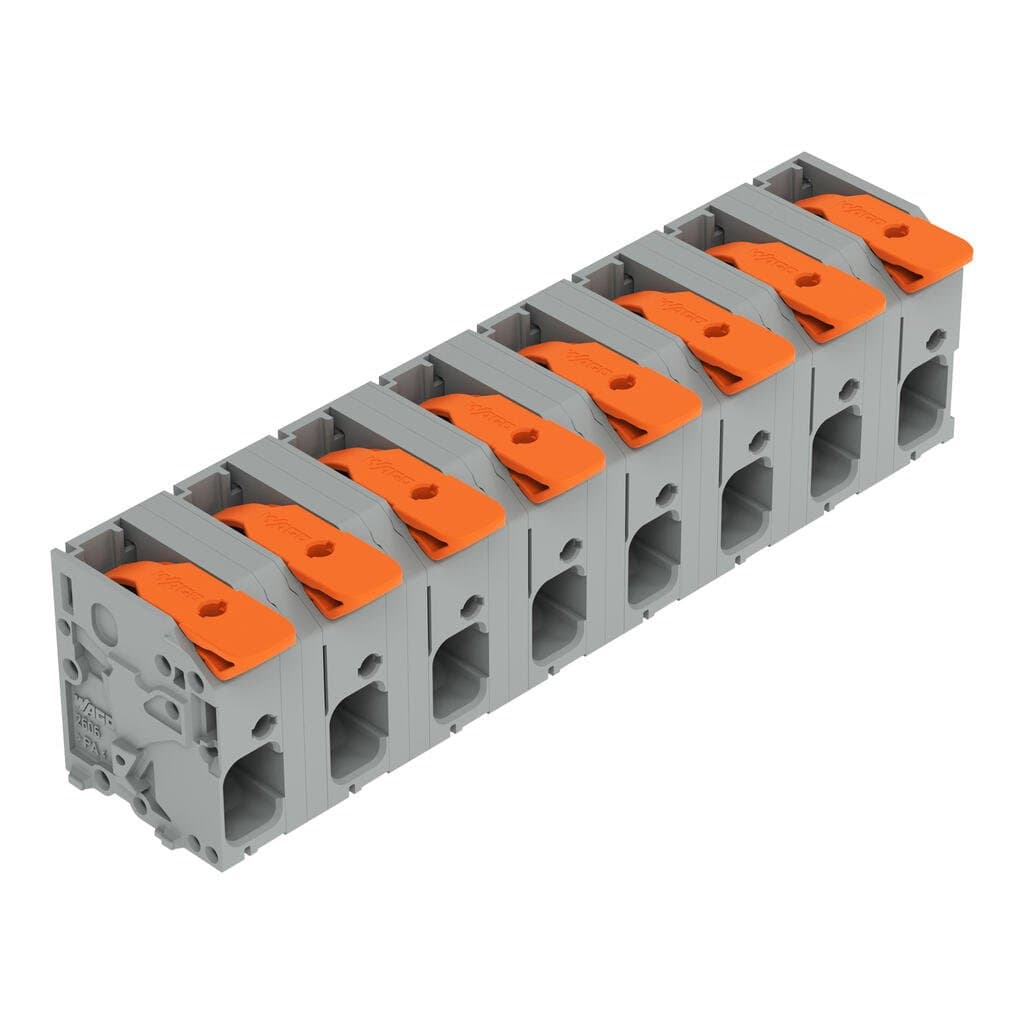

Product Model
2606-1358
Selling Points
- 1Industry-leading reliability with high-quality components.
- 2Easy installation and configuration for seamless integration.
- 3Robust design for harsh industrial environments.
- 4Fast and secure data transmission with advanced connectivity options.
- 5Compatible with a wide range of industrial automation systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Variants: | Other pole numbers | Clamping units | 8 |
Total number of potentials | 8 | Number of connection types | 1 |
Number of levels | 1 | Pin spacing | 12.5?mm?/ 0.492?inches |
Width | 96.5?mm?/ 3.799?inches | Height | 28?mm?/ 1.102?inches |
Height from the surface | 24?mm?/ 0.945?inches | Solder pin length | 4mm |
Solder pin dimensions | 1.5 x 1.2?mm | Drilled hole diameter with tolerance | 2(+0.1)mm |
PCB contact | THT | Solder pin arrangement | over the entire terminal strip (in-line) |
Number of solder pins per potential | 2 | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Clamping spring material | Chrome-nickel spring steel (CrNi) | Contact material | Electrolytic copper (ECu) |
Contact plating | Tin | Fire load | 1.011MJ |
Actuator color | orange | Weight | 42.4g |
Limit temperature range | -60 … +105?°C | Processing temperature | -35 … +60?°C |
Continuous operating temperature | -60 … +105?°C | ETIM 9.0 | EC002643 |
ETIM 8.0 | EC002643 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 18 pcs | Packaging type | box |
Country of origin | PL | GTIN | 4066966392609 |
Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
Ratings per | IEC/EN 60664-1 | Rated voltage (III / 3) | 800V |
Rated impulse voltage (III / 3) | 8kV | Rated voltage (III/2) | 1000V |
Rated surge voltage (III/2) | 8kV | Nominal voltage (II/2) | 1000V |
Rated surge voltage (II/2) | 8kV | Rated current | 41A |
Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 | Approvals per | CSA |
Rated voltage UL (Use Group B) | 600V | Rated current UL (Use Group B) | 42A |
Rated voltage UL (Use Group C) | 600V | Rated current UL (Use Group C) | 42A |
Rated voltage CSA (Use Group B) | 600V | Rated current CSA (Use Group B) | 31A |
Rated voltage CSA (Use Group C) | 600V | Rated current CSA (Use Group C) | 31A |
Connection technology | Push-in CAGE CLAMP? | Actuation type | Lever |
Solid conductor | 0.2 … 10?mm2?/ 24 … 8?AWG | Fine-stranded conductor | 0.2 … 10?mm2?/ 24 … 8?AWG |
Fine-stranded conductor; with insulated ferrule | 0.25 … 6?mm2 | Fine-stranded conductor; with uninsulated ferrule | 0.25 … 6?mm2 |
Fine-stranded conductor; with twin ferrule | 0.25 … 2.5?mm2 | Strip length | 11 … 13?mm?/ 0.43 … 0.51?inches |
Conductor connection direction to PCB | 0° | Number of poles | 8 |
Test specification <br/>Railway applications – <br/>Rolling stock – <br/>Electronic equipment | DIN EN 50155 (VDE 0115-200):2022-06 | Test procedure <br/>Railway applications – <br/>Rolling stock equipment – <br/>Shock and vibration tests | DIN EN 61373 (VDE 0115-0106):2011-04 |
Spectrum/Installation location | Service life test, Category?1, Class?A/B | Function test with noise-like vibration | Test passed according to Section 8 of the standard |
Frequency | f1= 5 Hz to f2= 150 Hz | Acceleration | 5g (highest test level used for all axes) |
Test duration per axis | 5 h | Test directions | X, Y and Z axes |
Monitoring for contact faults/interruptions | Passed | Voltage drop measurement before and after each axis | Passed |
Simulated service life test through increased levels of noise-like vibration | Test passed according to Section 9 of the standard | Extended test scope: Monitoring for contact faults/interruptions | Passed |
Extended test scope: Voltage drop measurement before and after each axis | Passed | Shock test | Test passed according to Section 10 of the standard |
Shock form | Half sine | Shock duration | 30 ms |
Number of shocks per axis | 3 pos. und 3 neg. | Vibration and shock stress for rolling stock equipment | Passed |
Specifications may be subject to change without notice
