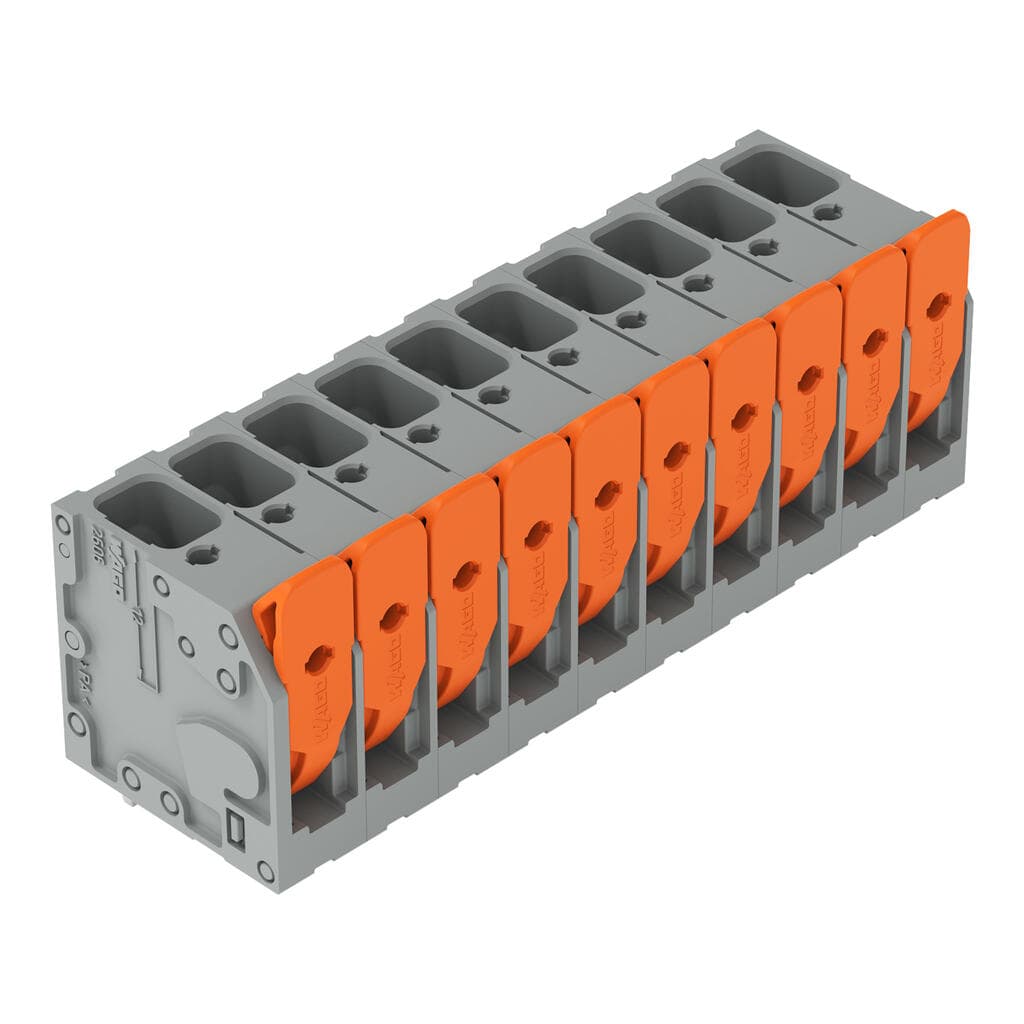

Product Model
2606-3110/020-000
Selling Points
- 1High-performance industrial connector designed for demanding applications.
- 2Robust and durable construction ensures reliable connectivity.
- 3Easy to install and maintain, reducing downtime and costs.
- 4Compatible with a wide range of industrial systems and protocols.
- 5Meets or exceeds industry standards for safety and performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Variants: | Other pole numbers | Clamping units | 10 |
Total number of potentials | 10 | Number of connection types | 1 |
Number of levels | 1 | Pin spacing | 7.5?mm?/ 0.295?inches |
Width | 77.85?mm?/ 3.065?inches | Height | 31?mm?/ 1.22?inches |
Height from the surface | 27?mm?/ 1.063?inches | Depth | 24?mm?/ 0.945?inches |
Solder pin length | 4mm | Solder pin dimensions | 1.5 x 1.2?mm |
Drilled hole diameter with tolerance | 2(+0.1)mm | PCB contact | THT |
Solder pin arrangement | over the entire terminal strip (staggered) | Number of solder pins per potential | 1 |
Note (material data) | Information on material specifications can be found here | Color | gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Clamping spring material | Chrome-nickel spring steel (CrNi) |
Contact material | Electrolytic copper (ECu) | Contact plating | Tin |
Fire load | 0.35MJ | Actuator color | orange |
Weight | 42.1g | Limit temperature range | -60 … +105?°C |
Processing temperature | -35 … +60?°C | Continuous operating temperature | -60 … +105?°C |
eCl@ss 10.0 | 27-44-04-01 | eCl@ss 9.0 | 27-44-04-01 |
ETIM 9.0 | EC002643 | ETIM 8.0 | EC002643 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 25?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4055143586702 | Customs tariff number | 8536904000 |
RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60664-1 |
Rated voltage (III / 3) | 800V | Rated impulse voltage (III / 3) | 8kV |
Rated voltage (III/2) | 1000V | Rated surge voltage (III/2) | 8kV |
Nominal voltage (II/2) | 1000V | Rated surge voltage (II/2) | 8kV |
Rated current | 41A | Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 |
Approvals per | CSA | Rated voltage UL (Use Group B) | 600V |
Rated current UL (Use Group B) | 31A | Rated voltage UL (Use Group C) | 600V |
Rated current UL (Use Group C) | 31A | Rated voltage CSA (Use Group B) | 600V |
Rated current CSA (Use Group B) | 31A | Rated voltage CSA (Use Group C) | 600V |
Rated current CSA (Use Group C) | 31A | Connection technology | Push-in CAGE CLAMP? |
Actuation type | Lever | Solid conductor | 0.2 … 10?mm2?/ 24 … 8?AWG |
Fine-stranded conductor | 0.2 … 10?mm2?/ 24 … 8?AWG | Fine-stranded conductor; with insulated ferrule | 0.25 … 6?mm2 |
Fine-stranded conductor; with uninsulated ferrule | 0.25 … 6?mm2 | Fine-stranded conductor; with twin ferrule | 0.25 … 2.5?mm2 |
Strip length | 11 … 13?mm?/ 0.43 … 0.51?inches | Conductor connection direction to PCB | 90° |
Number of poles | 10 |
Specifications may be subject to change without notice
