Product Model

2606-3362

In Stock
Last updated: 2025/4/20

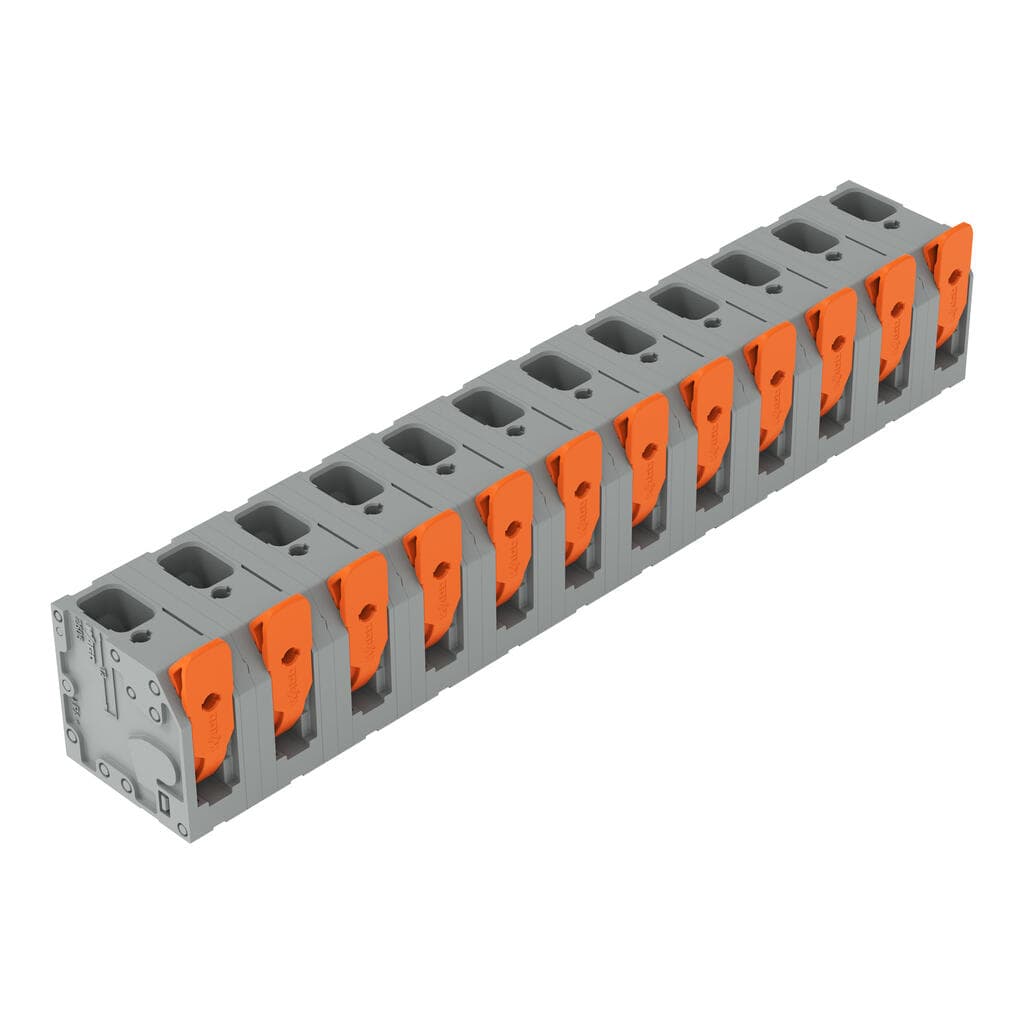

wago 2606-3362

Selling Points

  • 1Tool-Free Operation: Intuitive lever operation ensures secure connections without tools.
  • 2Push-in CAGE CLAMP: Quickly terminate solid and ferruled conductors with the Push-in CAGE CLAMP.
  • 3Multi-Core Cable Connection: Simplify multi-core cable connections by holding multiple clamping units open simultaneously.
  • 4Versatile Testing: Test conductors both parallel and perpendicular to conductor entry for comprehensive verification.
  • 5High-Rated Performance: Rated for 600 V, 41 A, and 8 kV surge voltage, suitable for various electrical applications.
Product Details
2606-3362
wago

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Variants:
Other pole numbers
Clamping units
12
Total number of potentials
12
Number of connection types
1
Number of levels
1
Pin spacing
12.5?mm?/ 0.492?inches
Width
146.5?mm?/ 5.768?inches
Height
31?mm?/ 1.22?inches
Height from the surface
27?mm?/ 1.063?inches
Depth
24?mm?/ 0.945?inches
Solder pin length
4mm
Solder pin dimensions
1.5 x 1.2?mm
Drilled hole diameter with tolerance
2(+0.1)mm
PCB contact
THT
Solder pin arrangement
over the entire terminal strip (in-line)
Number of solder pins per potential
2
Note (material data)
Information on material specifications can be found here
Color
gray
Material group
I
Insulation material (main housing)
Polyamide (PA66)
Flammability class per UL94
V0
Clamping spring material
Chrome-nickel spring steel (CrNi)
Contact material
Electrolytic copper (ECu)
Contact plating
Tin
Fire load
0.992MJ
Actuator color
orange
Weight
72.2g
Limit temperature range
-60 … +105?°C
Processing temperature
-35 … +60?°C
Continuous operating temperature
-60 … +105?°C
ETIM 9.0
EC002643
ETIM 8.0
EC002643
ECCN
NO US CLASSIFICATION
PU (SPU)
12?pcs
Packaging type
box
Country of origin
PL
GTIN
4055143862318
Customs tariff number
8536904000
RoHS Compliance Status
Compliant,No Exemption
Ratings per
IEC/EN 60664-1
Rated voltage (III / 3)
800V
Rated impulse voltage (III / 3)
8kV
Rated voltage (III/2)
1000V
Rated surge voltage (III/2)
8kV
Nominal voltage (II/2)
1000V
Rated surge voltage (II/2)
8kV
Rated current
41A
Legend (ratings)
(III / 2) ? Overvoltage category III / Pollution degree 2
Approvals per
CSA
Rated voltage UL (Use Group B)
600V
Rated current UL (Use Group B)
42A
Rated voltage UL (Use Group C)
600V
Rated current UL (Use Group C)
42A
Rated voltage CSA (Use Group B)
600V
Rated current CSA (Use Group B)
31A
Rated voltage CSA (Use Group C)
600V
Rated current CSA (Use Group C)
31A
Connection technology
Push-in CAGE CLAMP?
Actuation type
Lever
Solid conductor
0.2 … 10?mm2?/ 24 … 8?AWG
Fine-stranded conductor
0.2 … 10?mm2?/ 24 … 8?AWG
Fine-stranded conductor; with insulated ferrule
0.25 … 6?mm2
Fine-stranded conductor; with uninsulated ferrule
0.25 … 6?mm2
Fine-stranded conductor; with twin ferrule
0.25 … 2.5?mm2
Strip length
11 … 13?mm?/ 0.43 … 0.51?inches
Conductor connection direction to PCB
90°
Number of poles
12
Test specification <br/>Railway applications – <br/>Rolling stock – <br/>Electronic equipment
DIN EN 50155 (VDE 0115-200):2022-06
Test procedure <br/>Railway applications – <br/>Rolling stock equipment – <br/>Shock and vibration tests
DIN EN 61373 (VDE 0115-0106):2011-04
Spectrum/Installation location
Service life test, Category?1, Class?A/B
Function test with noise-like vibration
Test passed according to Section 8 of the standard
Frequency
f1= 5 Hz to f2= 150 Hz
Acceleration
5g (highest test level used for all axes)
Test duration per axis
5 h
Test directions
X, Y and Z axes
Monitoring for contact faults/interruptions
Passed
Voltage drop measurement before and after each axis
Passed
Simulated service life test through increased levels of noise-like vibration
Test passed according to Section 9 of the standard
Extended test scope: Monitoring for contact faults/interruptions
Passed
Extended test scope: Voltage drop measurement before and after each axis
Passed
Shock test
Test passed according to Section 10 of the standard
Shock form
Half sine
Shock duration
30 ms
Number of shocks per axis
3 pos. und 3 neg.
Vibration and shock stress for rolling stock equipment
Passed

Specifications may be subject to change without notice
