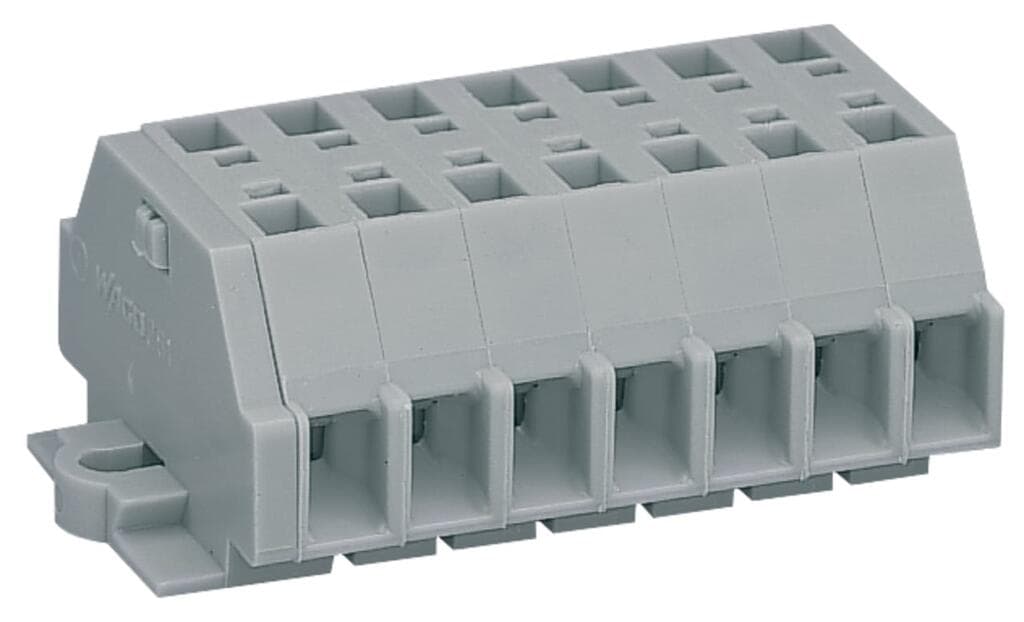

Product Model
261-107
Selling Points
- 1Versatile Mounting Options: Suitable for screw or similar mounting types.
- 2High Current Capacity: Handles up to 2.5 mm².
- 3Durable Design: Features CAGE CLAMP technology for secure connections.
- 4Easy Installation: Includes fixing flanges for straightforward mounting.
- 5Gray Color: Available in a durable gray finish.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 14 | Total number of potentials | 7 |
Number of levels | 1 | Width | 56.1?mm?/ 2.209?inches |
Height from the surface | 18.1?mm?/ 0.713?inches | Depth | 28.1?mm?/ 1.106?inches |
Module width | 6?mm?/ 0.236?inches | Design | horizontal type |
Mounting type | Mounting flange | Marking level | Side marking |
Note (material data) | Information on material specifications can be found here | Color | gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.327MJ |
Halogen-free | Yes | Weight | 17.3g |
Product Group | 9 (Std Chassis Mt Blocks) | eCl@ss 10.0 | 27-14-11-06 |
eCl@ss 9.0 | 27-14-11-06 | ETIM 9.0 | EC001284 |
ETIM 8.0 | EC001284 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 50?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4044918617246 |
Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
Rated voltage (III / 3) | 500V | Rated impulse voltage (III / 3) | 6kV |
Rated current | 24A | Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 |
Approvals per | CSA 22.2 No 158 | Rated voltage UL (Use Group B) | 300V |
Rated current UL (Use Group B) | 15A | Rated voltage UL (Use Group C) | 300V |
Rated current UL (Use Group C) | 15A | Rated voltage UL (Use Group D) | 600V |
Rated current UL (Use Group D) | 5A | Rated voltage CSA (Use Group C) | 300V |
Rated current CSA (Use Group C) | 10A | Rated voltage CSA (Use Group D) | 600V |
Rated current CSA (Use Group D) | 5A | Connection technology | CAGE CLAMP? |
Actuation type | Operating tool | Connectable conductor materials | Copper |
Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches | Number of poles | 7 |
Wiring direction | Side-entry wiring |
Specifications may be subject to change without notice
