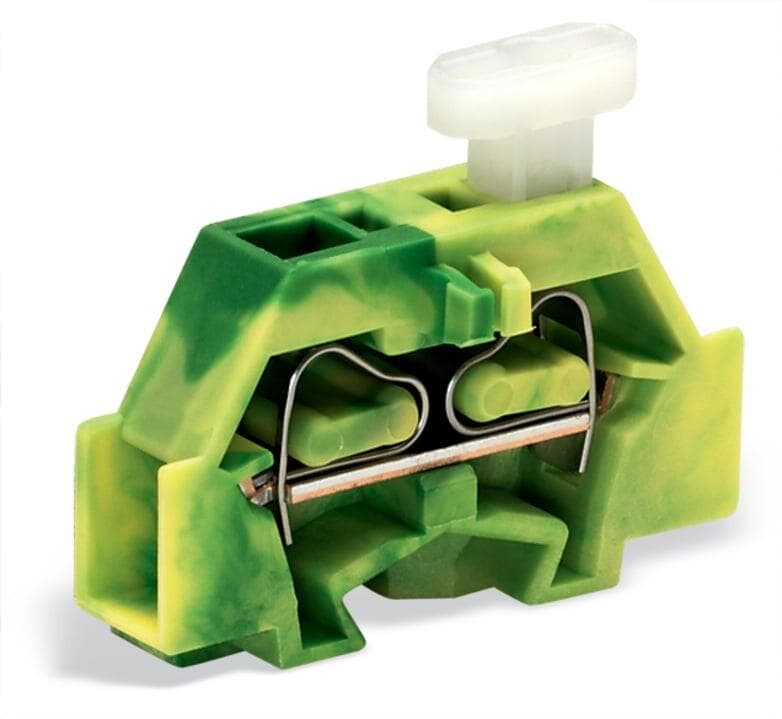

Product Model
261-307/331-000
Selling Points
- 1High Current Capacity: Handles up to 24A with a rated voltage of 500V.
- 2Compact Design: Measuring 5mm in width, perfect for space-constrained installations.
- 3Snap-In Mounting: Easy to install with snap-in mounting feet for quick setup.
- 4Versatile Stripping: Accommodates conductor sizes from AWG 28 to 12.
- 5Durable Construction: Built with high-quality materials for long-lasting performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 2 | Total number of potentials | 1 |
Number of levels | 1 | Width | 6?mm?/ 0.236?inches |
Height from the surface | 23.3?mm?/ 0.917?inches | Depth | 28.1?mm?/ 1.106?inches |
Design | horizontal type | Mounting type | Mounting flange |
Marking level | Side marking | Note (material data) | Information on material specifications can be found here |
Color | green-yellow | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.054MJ | Halogen-free | Yes |
Weight | 2.5g | Processing temperature | -35 … +85?°C |
Continuous operating temperature | -60 … +105?°C | eCl@ss 10.0 | 27-14-11-06 |
eCl@ss 9.0 | 27-14-11-06 | ETIM 9.0 | EC001284 |
ETIM 8.0 | EC001284 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 200?(50)?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4044918622868 |
Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
Rated voltage (III / 3) | 500V | Rated impulse voltage (III / 3) | 6kV |
Rated current | 24A | Rated voltage UL (Use Group B) | 300V |
Rated current UL (Use Group B) | 15A | Rated voltage UL (Use Group C) | 300V |
Rated current UL (Use Group C) | 15A | Rated voltage UL (Use Group D) | 600V |
Rated current UL (Use Group D) | 5A | Rated voltage CSA (Use Group C) | 300V |
Rated current CSA (Use Group C) | 10A | Rated voltage CSA (Use Group D) | 600V |
Rated current CSA (Use Group D) | 5A | Connection technology | CAGE CLAMP? |
Actuation type | Operating tool | Connectable conductor materials | Copper |
Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches | Number of poles | 1 |
Wiring direction | Side-entry wiring | Actuation type 2 | Push-button |
Specifications may be subject to change without notice
