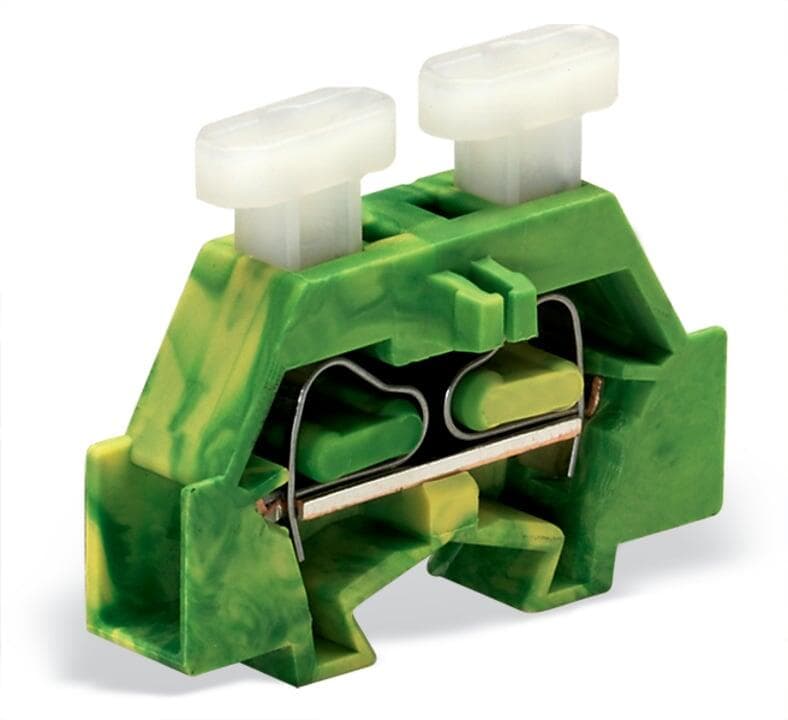

Product Model
261-327/341-000
Selling Points
- 1Durable construction with robust materials for long-lasting performance.
- 2Easy-to-use push-in connection technology for quick and secure connections.
- 3High current rating up to 32 A for efficient power distribution.
- 4Compact design for space-saving applications in industrial settings.
- 5Compliant with international standards for safety and reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 2 | Total number of potentials | 1 |
Number of levels | 1 | Width | 6?mm?/ 0.236?inches |
Height from the surface | 23.3?mm?/ 0.917?inches | Depth | 28.1?mm?/ 1.106?inches |
Design | horizontal type | Mounting type | Snap-in foot |
Marking level | Side marking | Note (material data) | Information on material specifications can be found here |
Color | green-yellow | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.057MJ | Halogen-free | Yes |
Weight | 2.3g | eCl@ss 10.0 | 27-14-11-06 |
eCl@ss 9.0 | 27-14-11-06 | ETIM 9.0 | EC001284 |
ETIM 8.0 | EC001284 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 200?(50)?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4044918623278 |
Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
Rated voltage (III / 3) | 500V | Rated impulse voltage (III / 3) | 6kV |
Rated current | 24A | Rated voltage UL (Use Group B) | 300V |
Rated current UL (Use Group B) | 15A | Rated voltage UL (Use Group C) | 300V |
Rated current UL (Use Group C) | 15A | Rated voltage UL (Use Group D) | 600V |
Rated current UL (Use Group D) | 5A | Rated voltage CSA (Use Group C) | 300V |
Rated current CSA (Use Group C) | 10A | Rated voltage CSA (Use Group D) | 600V |
Rated current CSA (Use Group D) | 5A | Connection technology | CAGE CLAMP? |
Actuation type | Push-button | Connectable conductor materials | Copper |
Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches | Number of poles | 1 |
Wiring direction | Side-entry wiring |
Specifications may be subject to change without notice
