Product Model
261-371
Selling Points

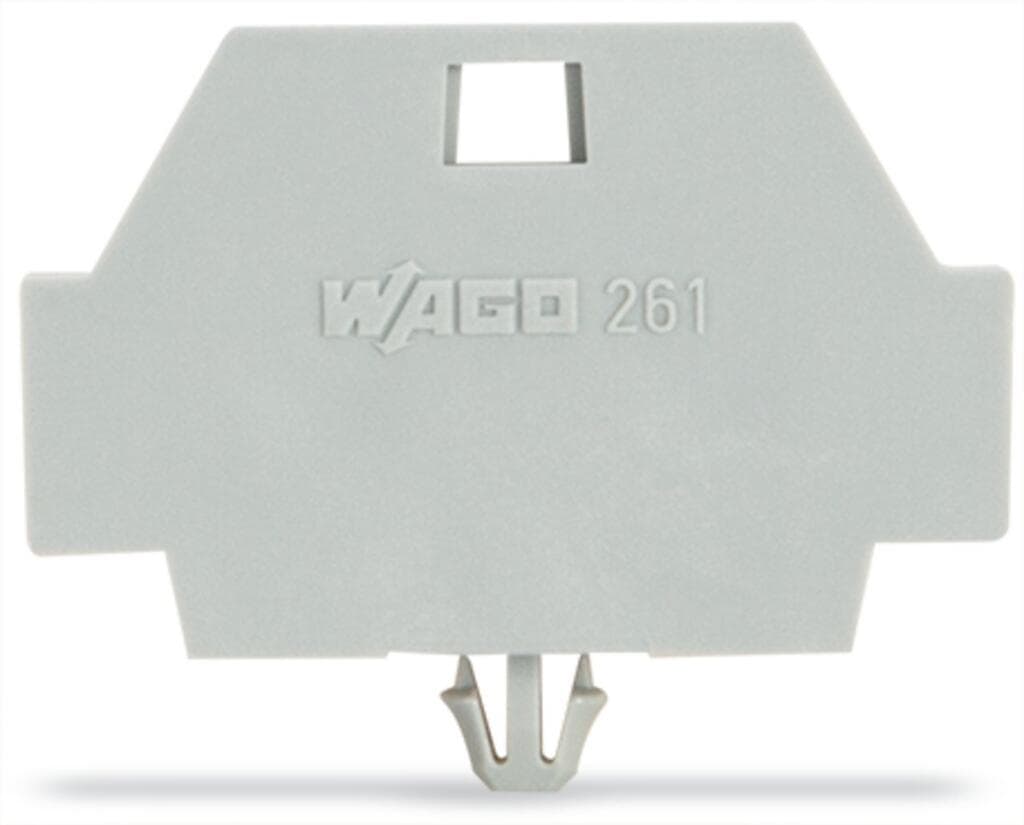

- 1Grey Color: The end plate features a durable grey color.
- 2Snap-In Mounting Foot: Easy snap-in mounting for secure installation.
- 3Polyamide (PA66) Insulation: High-quality insulation material for reliability.
- 4UL94 V0 Flammability Class: Meets stringent fire safety standards.
- 5Compact Dimensions: Measuring 3mm x 18mm x 28mm for space-efficient use.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 3?mm?/ 0.118?inches | Height | 18?mm?/ 0.709?inches |
Depth | 28?mm?/ 1.102?inches | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.03MJ | Weight | 1g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
Product Group | 9 (Std Chassis Mt Blocks) | eCl@ss 10.0 | 27-14-11-33 |
eCl@ss 9.0 | 27-14-11-33 | ETIM 9.0 | EC000886 |
ETIM 8.0 | EC000886 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 300?(50)?pcs | Packaging type | box |
Country of origin | CH | GTIN | 4017332141277 |
Customs tariff number | 8538906000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
