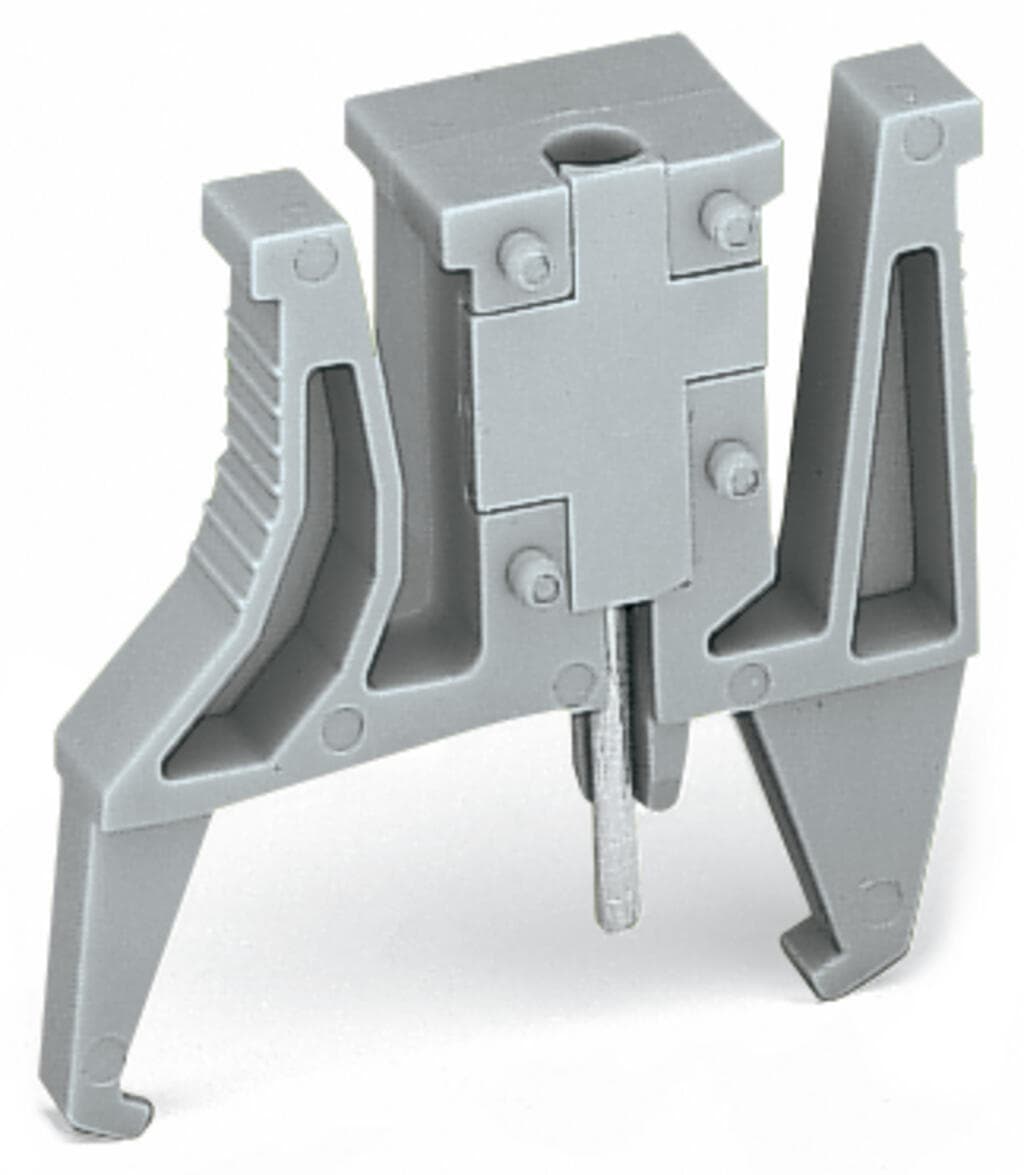

Product Model
261-405
Selling Points
- 1Modular design for easy integration.
- 2Equipped with locking latches for secure connections.
- 3Compatible with 4-conductor terminal blocks.
- 4Rated current of 0.5A for reliable testing.
- 5Gray color for easy identification in industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 10?mm?/ 0.394?inches | Module width | 10?mm?/ 0.394?inches |
Note (material data) | Information on material specifications can be found here | Color | gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Weight | 2.8g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
Product Group | 9 (Std Chassis Mt Blocks) | eCl@ss 10.0 | 27-14-11-48 |
eCl@ss 9.0 | 27-14-11-48 | ETIM 9.0 | EC002555 |
ETIM 8.0 | EC002555 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 100?(25)?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4050821868965 |
Customs tariff number | 8536904000 | CAS-No. | 7439-92-1 |
REACH Candidate List Substance | Lead | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 6(c) | SCIP notification number (Austria) | 56862e2b-79b8-4032-9d7b-e6f72de30508 |
SCIP notification number (Belgium) | 8851ed8c-18f8-4697-bdca-39505761c979 | SCIP notification number (Bulgaria) | 858cf710-ee97-4752-862c-1c4882d56357 |
SCIP notification number (Czech Republic) | 4dbaf1df-d3d7-4be8-9120-4c75ddacb0fd | SCIP notification number (Denmark) | ba930414-14ac-43e5-9e01-8a58726a7477 |
SCIP notification number (Finland) | aff9decb-e211-40b5-b6e0-a07572df4827 | SCIP notification number (France) | 628f79a4-7667-4e8a-9d76-7890a852bd59 |
SCIP notification number (Germany) | f98ae75e-aa98-43f1-ba71-6d18c8d1bacf | SCIP notification number (Hungary) | c47ff684-5d98-41f7-b884-4168dff6de2a |
SCIP notification number (Italy) | af57ac20-f1b5-4f14-86b8-5f14acff2c49 | SCIP notification number (Netherlands) | c7b7caf9-fde1-42d7-a069-3896b78189ad |
SCIP notification number (Poland) | a700cfc7-330f-4abb-a8c5-19710f1bee51 | SCIP notification number (Romania) | 201379da-854c-4274-8bd4-188e9168fbbb |
SCIP notification number (Sweden) | c4285ee4-43b1-4bb0-9bb6-0ab374a45360 | Rated voltage (III / 3) | 800V |
Ratings (note) | Maximum test voltage (touch contact): 48 V (test pins are not touch-proof) | Ratings (note) 2 | Maximum test current (touch contact): 0.5 AMaximum test current: 6 A (if the test pins are securely connected in the clamping units) |
Test voltage | 48V | Test current | 0.5A |
Specifications may be subject to change without notice
