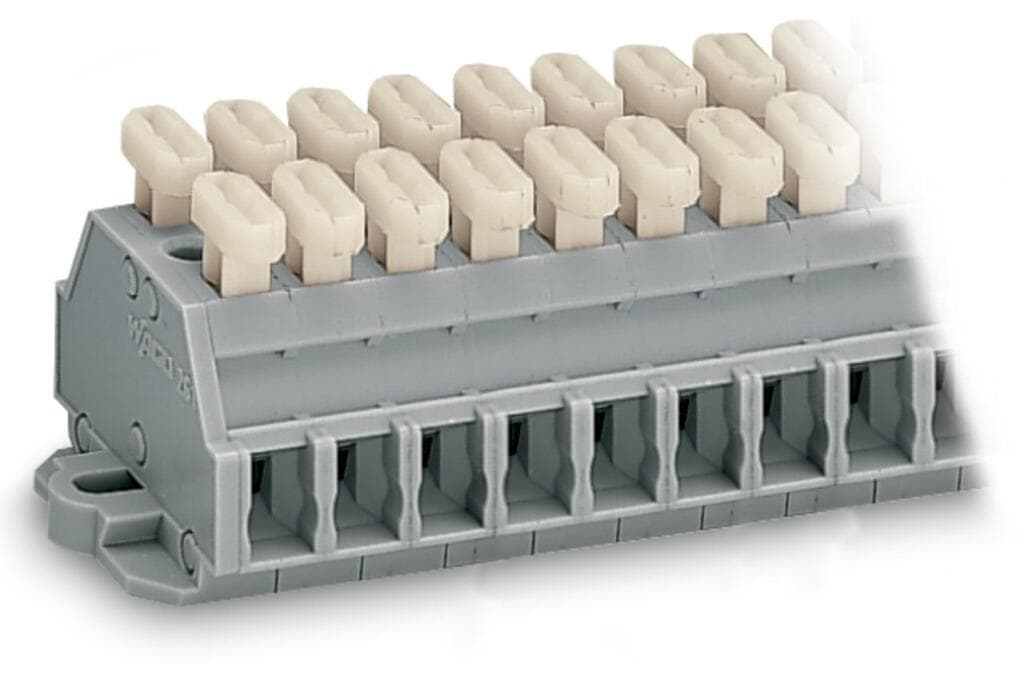

Product Model
261-424/341-000
Selling Points
- 1Open clamping unit allows for easy insertion of conductors.
- 2Rated for 500 V, 6 kV surge voltage, and pollution degree 3.
- 3Suitable for Ex i applications and various conductor sizes (AWG 28-12).
- 4Made with insulating material and snap-in mounting feet for secure installation.
- 5Compatible with WSB Quick marking system for efficient labeling.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 8 | Total number of potentials | 4 |
Number of levels | 1 | Width | 37?mm?/ 1.457?inches |
Height from the surface | 23.3?mm?/ 0.917?inches | Depth | 28.1?mm?/ 1.106?inches |
Module width | 6?mm?/ 0.236?inches | Design | horizontal type |
Mounting type | Mounting flange | Marking level | Side marking |
Note (material data) | Information on material specifications can be found here | Color | gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.126MJ |
Halogen-free | Yes | Weight | 11.9g |
eCl@ss 10.0 | 27-14-11-06 | eCl@ss 9.0 | 27-14-11-06 |
ETIM 9.0 | EC001284 | ETIM 8.0 | EC001284 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 50?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4044918627375 | Customs tariff number | 8536904000 |
RoHS Compliance Status | Compliant,No Exemption | Rated voltage (III / 3) | 500V |
Rated impulse voltage (III / 3) | 6kV | Rated current | 24A |
Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Approvals per | CSA 22.2 No 158 |
Rated voltage UL (Use Group B) | 300V | Rated current UL (Use Group B) | 15A |
Rated voltage UL (Use Group C) | 300V | Rated current UL (Use Group C) | 15A |
Rated voltage UL (Use Group D) | 600V | Rated current UL (Use Group D) | 5A |
Rated voltage CSA (Use Group C) | 300V | Rated current CSA (Use Group C) | 10A |
Rated voltage CSA (Use Group D) | 600V | Rated current CSA (Use Group D) | 5A |
Connection technology | CAGE CLAMP? | Actuation type | Push-button |
Connectable conductor materials | Copper | Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches |
Number of poles | 4 | Wiring direction | Side-entry wiring |
Specifications may be subject to change without notice
