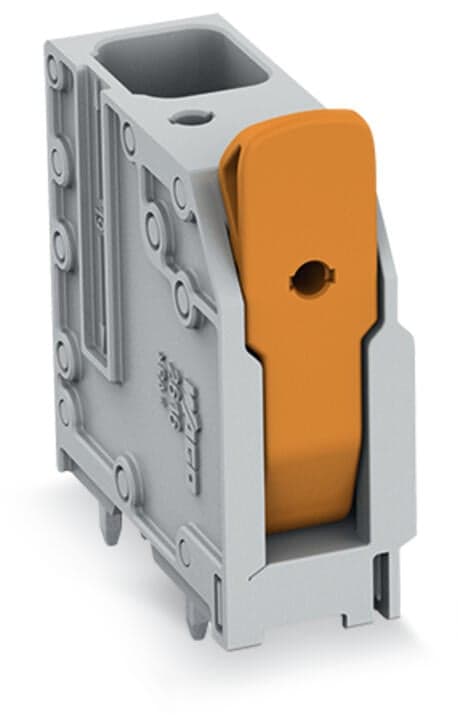

Product Model
2616-3101
Selling Points
- 1High Current Capacity: Supports up to 1000V and 41A for robust power distribution.
- 2Tool-Free Operation: Easy-to-use lever ensures secure connections without tools.
- 3Push-in CAGE CLAMP: Securely holds conductors in place with minimal effort.
- 4Wide Conductor Range: Suitable for AWG 18-4 and conductor sizes from 0.75 to 25 mm².
- 5100% Safety Protection: Integrated protective contact caps and optional interlock for added safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | The inherent stability of a single-pole PCB terminal block is less than that of a multi-pole terminal strip. The customer must therefore ensure that these terminal blocks are protected against excessive mechanical stress (e.g., torsional or bending stress), both when connecting the conductor and during subsequent use, for example by providing additional support, shortly holding the connected conductor and appropriate actuation instructions. | Variants: | Other pole numbers |
Clamping units | 1 | Total number of potentials | 1 |
Number of connection types | 1 | Number of levels | 1 |
Pin spacing | 10?mm?/ 0.394?inches | Width | 12.8?mm?/ 0.504?inches |
Height | 38.2?mm?/ 1.504?inches | Height from the surface | 34.2?mm?/ 1.346?inches |
Depth | 29.4?mm?/ 1.157?inches | Solder pin length | 4mm |
Solder pin dimensions | 1.2 x 1.2?mm | Drilled hole diameter with tolerance | 1.7(+0.1)mm |
PCB contact | THT | Solder pin arrangement | Over the entire terminal strip (in-line) |
Number of solder pins per potential | 6 | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Clamping spring material | Chrome-nickel spring steel (CrNi) | Contact material | Electrolytic copper (ECu) |
Contact plating | Tin | Fire load | 0.144MJ |
Actuator color | orange | Weight | 10.5g |
Limit temperature range | -60 … +105?°C | Processing temperature | -35 … +60?°C |
eCl@ss 10.0 | 27-44-04-01 | eCl@ss 9.0 | 27-44-04-01 |
ETIM 9.0 | EC002643 | ETIM 8.0 | EC002643 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 100?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4055143692786 | Customs tariff number | 8536904000 |
RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60664-1 |
Rated voltage (III / 3) | 1000V | Rated impulse voltage (III / 3) | 8kV |
Rated voltage (III/2) | 1000V | Rated surge voltage (III/2) | 8kV |
Nominal voltage (II/2) | 1000V | Rated surge voltage (II/2) | 8kV |
Rated current | 76A | Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 |
Approvals per | CSA | Rated voltage UL (Use Group B) | 600V |
Rated current UL (Use Group B) | 78A | Rated voltage UL (Use Group C) | 600V |
Rated current UL (Use Group C) | 78A | Rated voltage CSA (Use Group B) | 600V |
Rated current CSA (Use Group B) | 72A | Rated voltage CSA (Use Group C) | 1000V |
Rated current CSA (Use Group C) | 72A | Connection technology | Push-in CAGE CLAMP? |
Actuation type | Lever | Solid conductor | 0.75 … 16?mm2?/ 18 … 4?AWG |
Fine-stranded conductor | 0.75 … 25?mm2?/ 18 … 4?AWG | Fine-stranded conductor; with insulated ferrule | 0.75 … 16?mm2 |
Fine-stranded conductor; with uninsulated ferrule | 0.75 … 16?mm2 | Fine-stranded conductor; with twin ferrule | 0.75 … 6?mm2 |
Strip length | 18 … 20?mm?/ 0.71 … 0.79?inches | Conductor connection direction to PCB | 90° |
Number of poles | 1 |
