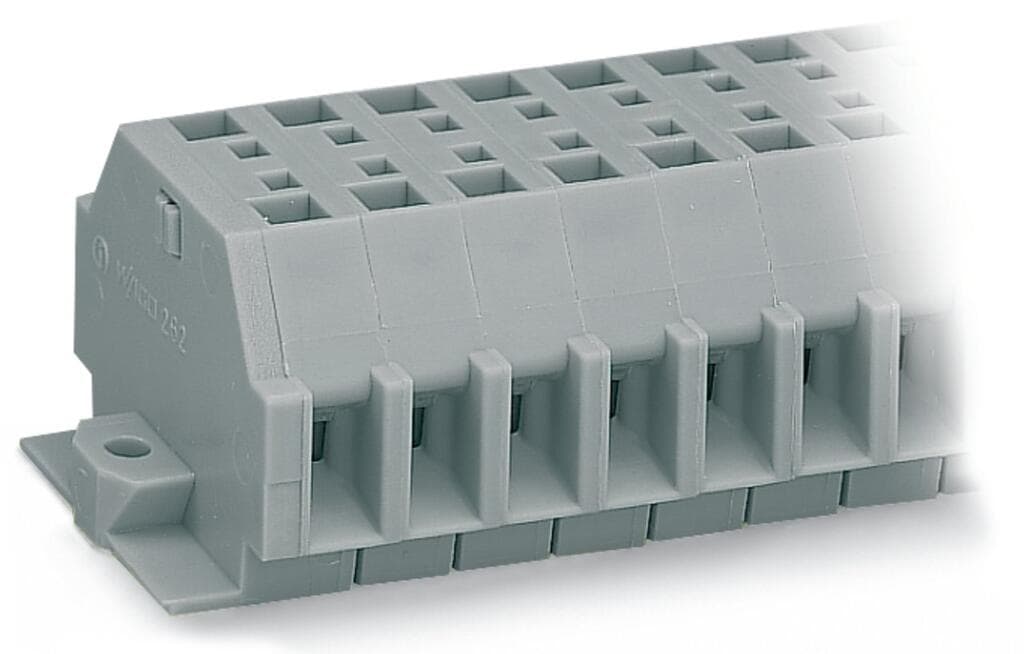

Product Model
262-110
Selling Points
- 110-pole feed-through terminal strip with 20 wire connections.
- 2Suitable for wire sizes ranging from 0.08mm² to 4mm² or #28AWG to #12AWG.
- 3Utilizes CAGE CLAMP spring connections for secure and efficient wiring.
- 4Designed with a 3.2mm fixing hole for easy mounting.
- 5Gray color, RoHS compliant, and ideal for various mounting types.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 20 | Total number of potentials | 10 |
Number of levels | 1 | Width | 84.4?mm?/ 3.323?inches |
Height from the surface | 23.1?mm?/ 0.909?inches | Depth | 33.5?mm?/ 1.319?inches |
Module width | 7?mm?/ 0.276?inches | Design | horizontal type |
Mounting type | Mounting flange | Marking level | Side marking |
Note (material data) | Information on material specifications can be found here | Color | gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.826MJ |
Halogen-free | Yes | Weight | 43.6g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
Product Group | 9 (Std Chassis Mt Blocks) | eCl@ss 10.0 | 27-14-11-06 |
eCl@ss 9.0 | 27-14-11-06 | ETIM 9.0 | EC001284 |
ETIM 8.0 | EC001284 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 25?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4044918640244 |
Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
Rated voltage (III / 3) | 690V | Rated impulse voltage (III / 3) | 8kV |
Rated current | 32A | Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 |
Approvals per | CSA 22.2 No 158 | Rated voltage UL (Use Group B) | 300V |
Rated current UL (Use Group B) | 20A | Rated voltage UL (Use Group C) | 300V |
Rated current UL (Use Group C) | 20A | Rated voltage UL (Use Group D) | 300V |
Rated current UL (Use Group D) | 10A | Rated voltage CSA (Use Group B) | 600V |
Rated current CSA (Use Group B) | 5A | Rated voltage CSA (Use Group C) | 300V |
Rated current CSA (Use Group C) | 25A | Rated voltage CSA (Use Group D) | 600V |
Rated current CSA (Use Group D) | 5A | Connection technology | CAGE CLAMP? |
Actuation type | Operating tool | Connectable conductor materials | Copper |
Solid conductor | 0.08 … 4?mm2?/ 28 … 12?AWG | Fine-stranded conductor | 0.08 … 4?mm2?/ 28 … 12?AWG |
Strip length | 9 … 10?mm?/ 0.35 … 0.39?inches | Number of poles | 10 |
Wiring direction | Side-entry wiring |
Specifications may be subject to change without notice
