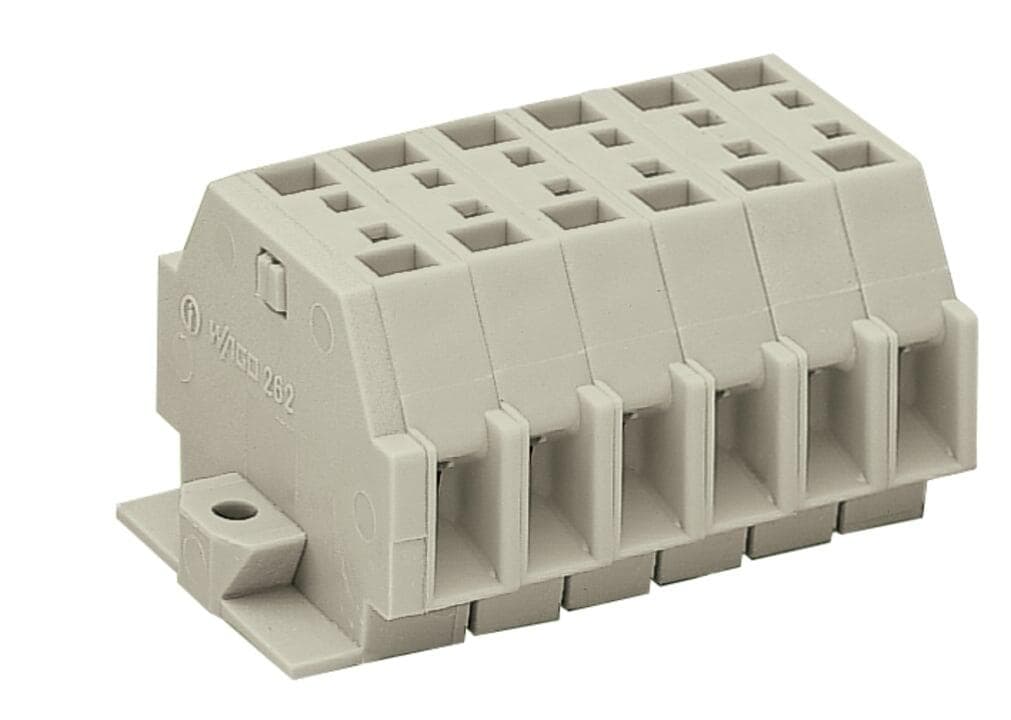

Product Model
262-136
Selling Points
- 1Ex e II Compliance: Suitable for hazardous environments with Ex e II certification.
- 2CAGE CLAMP Technology: Secure and reliable connection system.
- 3Fixing Flanges Included: Easy mounting with fixing flanges for screw or similar types.
- 4Light Gray Color: Durable and easy-to-spot light gray finish.
- 5Wide Wire Range: Compatible with wire sizes AWG 20-12.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 12 | Total number of potentials | 6 |
Number of levels | 1 | Width | 56.4?mm?/ 2.22?inches |
Height from the surface | 23.1?mm?/ 0.909?inches | Depth | 33.5?mm?/ 1.319?inches |
Module width | 7?mm?/ 0.276?inches | Design | horizontal type |
Mounting type | Mounting flange | Marking level | Side marking |
Note (material data) | Information on material specifications can be found here | Color | light gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.518MJ |
Halogen-free | Yes | Weight | 26.8g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
eCl@ss 10.0 | 27-14-11-06 | eCl@ss 9.0 | 27-14-11-06 |
ETIM 9.0 | EC001284 | ETIM 8.0 | EC001284 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 100?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4044918639958 | Customs tariff number | 8536904000 |
RoHS Compliance Status | Compliant,No Exemption | Reference hazardous areas | See “Downloads – Documentation – Additional Information: Technical Section; Technical Explications” |
Rated voltage EN (Ex e II) | 550V | Rated current (Ex e II) | 23A |
Connection technology | CAGE CLAMP? | Actuation type | Operating tool |
Connectable conductor materials | Copper | Solid conductor | 0.5 … 4?mm2?/ 20 … 12?AWG |
Fine-stranded conductor | 0.5 … 4?mm2?/ 20 … 12?AWG | Strip length | 9 … 10?mm?/ 0.35 … 0.39?inches |
Number of poles | 6 | Wiring direction | Side-entry wiring |
Specifications may be subject to change without notice
