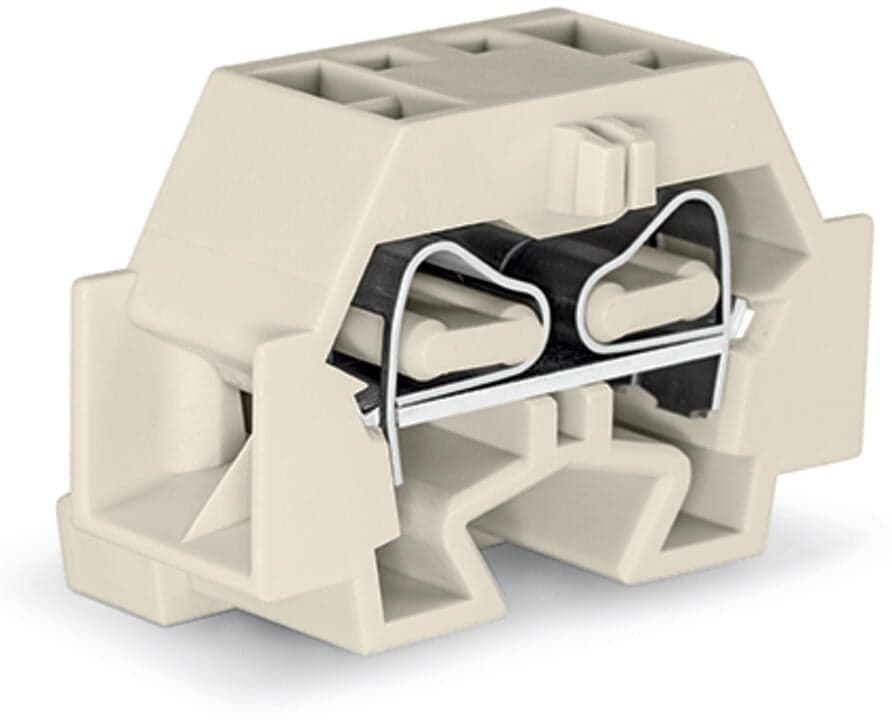

WAGO 262-230 4-Conductor Terminal Block

Selling Points

1Ex e II Certified: Meets stringent safety standards for hazardous environments.
2Light Gray Color: Easy to identify and integrate into your electrical setup.
3CAGE CLAMP Spring Connections: Secure and reliable conductor connections.
4Fixing Flange Included: Convenient for screw or similar mounting types.
5Rated Voltage: 550V, Rated Current: 30A: Supports high-performance electrical applications.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Clamping units	4	Total number of potentials	1
Number of levels	1	Width	12?mm?/ 0.472?inches
Height from the surface	23.1?mm?/ 0.909?inches	Depth	33.5?mm?/ 1.319?inches
Design	horizontal type	Mounting type	Mounting flange
Marking level	Side marking	Note (material data)	Information on material specifications can be found here
Color	light gray	Material group	I
Insulation material (main housing)	Polyamide (PA66)	Flammability class per UL94	V0
Fire load	0.111MJ	Halogen-free	Yes
Weight	7.1g	Product Group	9 (Std Chassis Mt Blocks)
eCl@ss 10.0	27-14-11-06	eCl@ss 9.0	27-14-11-06
ETIM 9.0	EC001284	ETIM 8.0	EC001284
ECCN	NO US CLASSIFICATION	PU (SPU)	100?(50)?pcs
Packaging type	box	Country of origin	CH
GTIN	4044918639002	Customs tariff number	8536904000
RoHS Compliance Status	Compliant,No Exemption	Reference hazardous areas	See “Downloads – Documentation – Additional Information: Technical Section; Technical Explications”
Rated voltage EN (Ex e II)	550V	Rated current (Ex e II)	30A
Connection technology	CAGE CLAMP?	Actuation type	Operating tool
Connectable conductor materials	Copper	Solid conductor	0.5 … 4?mm2?/ 20 … 12?AWG
Fine-stranded conductor	0.5 … 4?mm2?/ 20 … 12?AWG	Strip length	9 … 10?mm?/ 0.35 … 0.39?inches
Wiring direction	Side-entry wiring

Specifications may be subject to change without notice
