Product Model

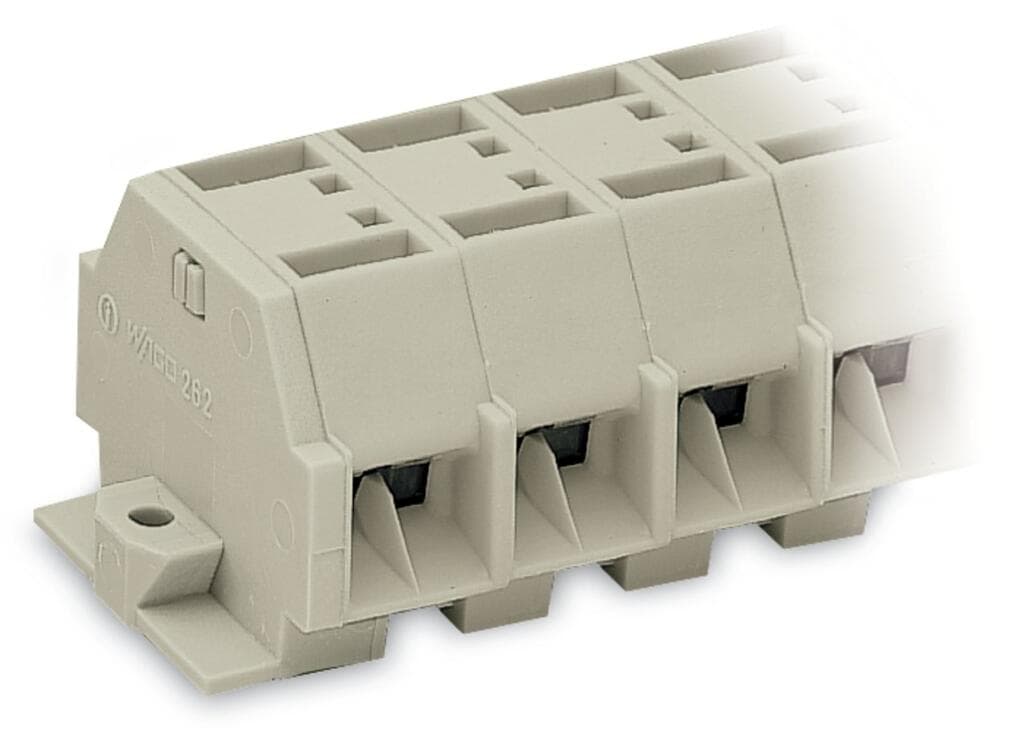

262-242
Selling Points
- 1Ex e II Certification: Meets stringent safety standards for hazardous environments.
- 212-Pole Configuration: Provides ample connection points for complex wiring setups.
- 3CAGE CLAMP Technology: Ensures secure and reliable connections with minimal risk of electrical shock.
- 4Mounting Flexibility: Suitable for screw or similar mounting types, including DIN 35 rail mounting.
- 5Comprehensive Certifications: Approved by UL, ATEX, CSA, and Lloyds Register for global compatibility.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 48 | Total number of potentials | 12 |
Number of levels | 1 | Width | 158.5?mm?/ 6.24?inches |
Height from the surface | 23.1?mm?/ 0.909?inches | Depth | 33.5?mm?/ 1.319?inches |
Module width | 12?mm?/ 0.472?inches | Design | horizontal type |
Mounting type | Mounting flange | Marking level | Side marking |
Note (material data) | Information on material specifications can be found here | Color | light gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 1.388MJ |
Halogen-free | Yes | Weight | 87.2g |
eCl@ss 10.0 | 27-14-11-06 | eCl@ss 9.0 | 27-14-11-06 |
ETIM 9.0 | EC001284 | ETIM 8.0 | EC001284 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 25?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4044918639125 | Customs tariff number | 8536904000 |
RoHS Compliance Status | Compliant,No Exemption | Reference hazardous areas | See “Downloads – Documentation – Additional Information: Technical Section; Technical Explications” |
Rated voltage EN (Ex e II) | 550V | Rated current (Ex e II) | 30A |
Connection technology | CAGE CLAMP? | Actuation type | Operating tool |
Connectable conductor materials | Copper | Solid conductor | 0.5 … 4?mm2?/ 20 … 12?AWG |
Fine-stranded conductor | 0.5 … 4?mm2?/ 20 … 12?AWG | Strip length | 9 … 10?mm?/ 0.35 … 0.39?inches |
Number of poles | 12 | Wiring direction | Side-entry wiring |
Specifications may be subject to change without notice
