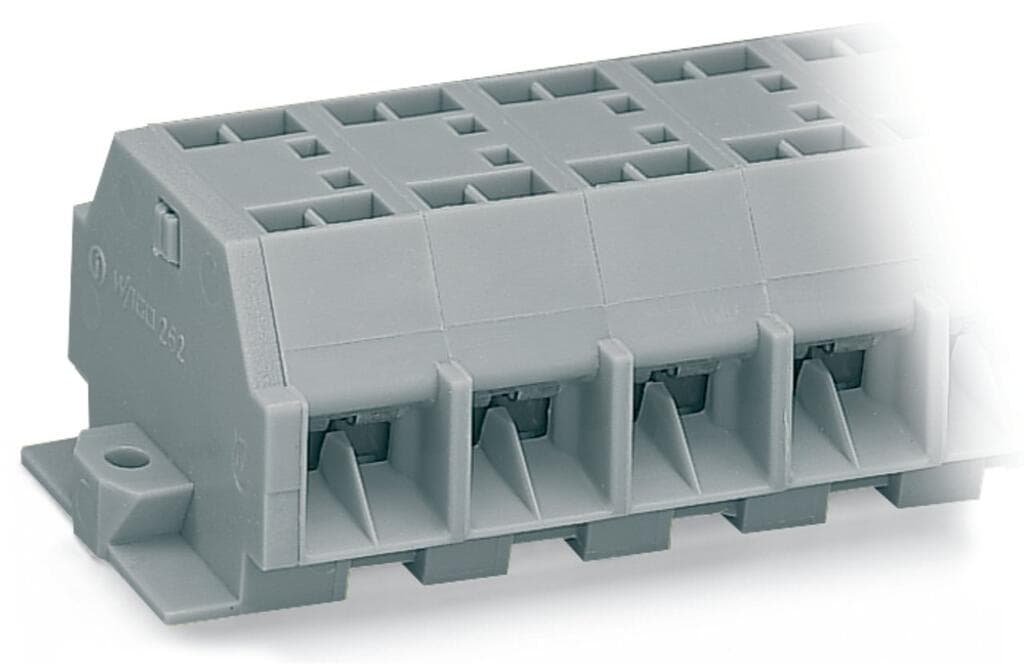

Product Model
262-261
Selling Points
- 1Snap-in Mounting Feet: Easy installation with snap-in mounting feet.
- 211-Pole Configuration: Suitable for various electrical connections.
- 3CAGE CLAMP Technology: Secure and reliable terminal connections.
- 4Gray Color: Durable and easy-to-spot in industrial settings.
- 54 mm² Capacity: Handles high current requirements efficiently.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 44 | Total number of potentials | 11 |
Number of levels | 1 | Width | 135?mm?/ 5.315?inches |
Height from the surface | 23.1?mm?/ 0.909?inches | Depth | 33.5?mm?/ 1.319?inches |
Module width | 12?mm?/ 0.472?inches | Design | horizontal type |
Mounting type | Snap-in foot | Marking level | Side marking |
Note (material data) | Information on material specifications can be found here | Color | gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 1.282MJ |
Halogen-free | Yes | Weight | 77g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
eCl@ss 10.0 | 27-14-11-06 | eCl@ss 9.0 | 27-14-11-06 |
ETIM 9.0 | EC001284 | ETIM 8.0 | EC001284 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 25?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4044918641753 | Customs tariff number | 8536904000 |
RoHS Compliance Status | Compliant,No Exemption | Rated voltage (III / 3) | 630V |
Rated impulse voltage (III / 3) | 8kV | Rated current | 32A |
Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Approvals per | CSA 22.2 No 158 |
Rated voltage UL (Use Group B) | 300V | Rated current UL (Use Group B) | 20A |
Rated voltage UL (Use Group C) | 300V | Rated current UL (Use Group C) | 20A |
Rated voltage UL (Use Group D) | 300V | Rated current UL (Use Group D) | 10A |
Rated voltage CSA (Use Group B) | 600V | Rated current CSA (Use Group B) | 5A |
Rated voltage CSA (Use Group C) | 300V | Rated current CSA (Use Group C) | 25A |
Rated voltage CSA (Use Group D) | 600V | Rated current CSA (Use Group D) | 5A |
Connection technology | CAGE CLAMP? | Actuation type | Operating tool |
Connectable conductor materials | Copper | Solid conductor | 0.08 … 4?mm2?/ 28 … 12?AWG |
Fine-stranded conductor | 0.08 … 4?mm2?/ 28 … 12?AWG | Strip length | 9 … 10?mm?/ 0.35 … 0.39?inches |
Number of poles | 11 | Wiring direction | Side-entry wiring |
Specifications may be subject to change without notice
